Keystone-module DeLOCK 86303

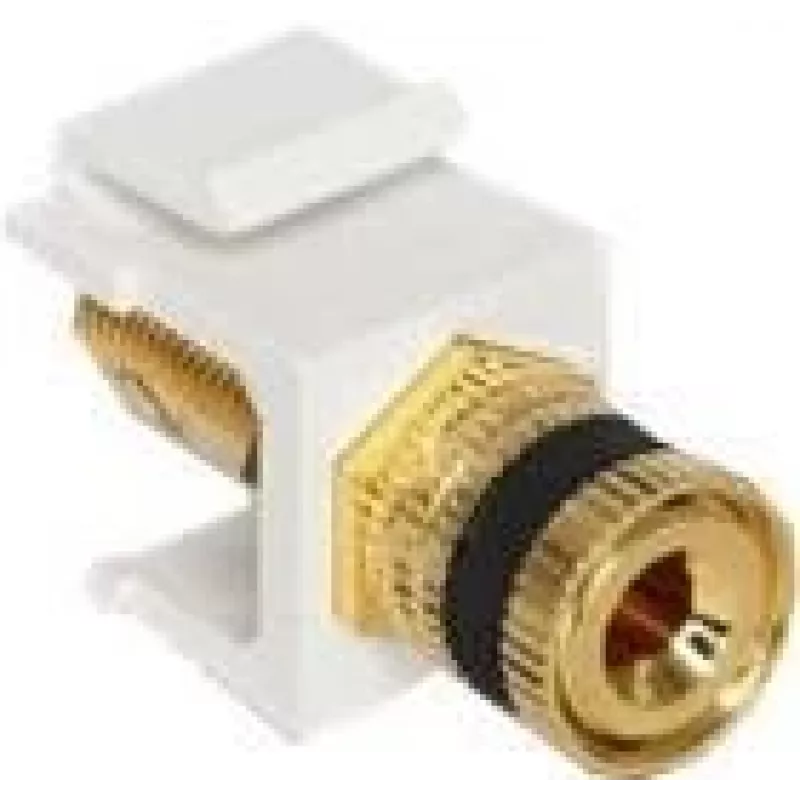

The DeLOCK 86303 keystone module is designed to extend speaker or similar audio cables and to provide a compact, standardised interface for faceplates, patch panels or surface-mount boxes. It combines a terminal post connector with a threaded jack connector in a black, gold and white housing and measures 16.3 mm (W) × 28.8 mm (D) × 22.3 mm (H).

Advantages

The module's standardised keystone dimensions allow tool-free snap-in mounting into Keystone patch panels, face plates or surface-mount boxes. The combination of a terminal post and a threaded jack offers flexible connection options for different cable types. Its compact size and clearly defined connector types simplify installation and maintenance in networking and audio setups.

Suitable for

• Extending speaker cables and other audio wiring
• Keystone patch panels and faceplates
• Surface-mount installation boxes
• Applications requiring a terminal post and threaded jack connection

Key specifications

• Brand: DELOCK
• Model / MPN: 86303
• EAN: 4043619863037
• Connectors: Terminal post; Thread jack
• Colours: Black, Gold, White
• Dimensions (W×D×H): 16.3 mm × 28.8 mm × 22.3 mm
• Category: Cable interface and gender adapters

How to use

Insert the module into a compatible keystone opening in a patch panel, face plate or surface-mount box until it snaps into place. Connect the speaker or audio cable to the terminal post according to polarity, and screw the mating connector onto the threaded jack as required. Ensure connections are secure before powering any connected equipment.

Recommendations

Use the module only in keystone-compatible housings of corresponding thickness and follow the audio system's polarity markings when attaching wires to the terminal post. Avoid excessive torque on the threaded jack to prevent damage.
