Keystone-module LC Duplex bus naar LC Duplex bus DeLOCK

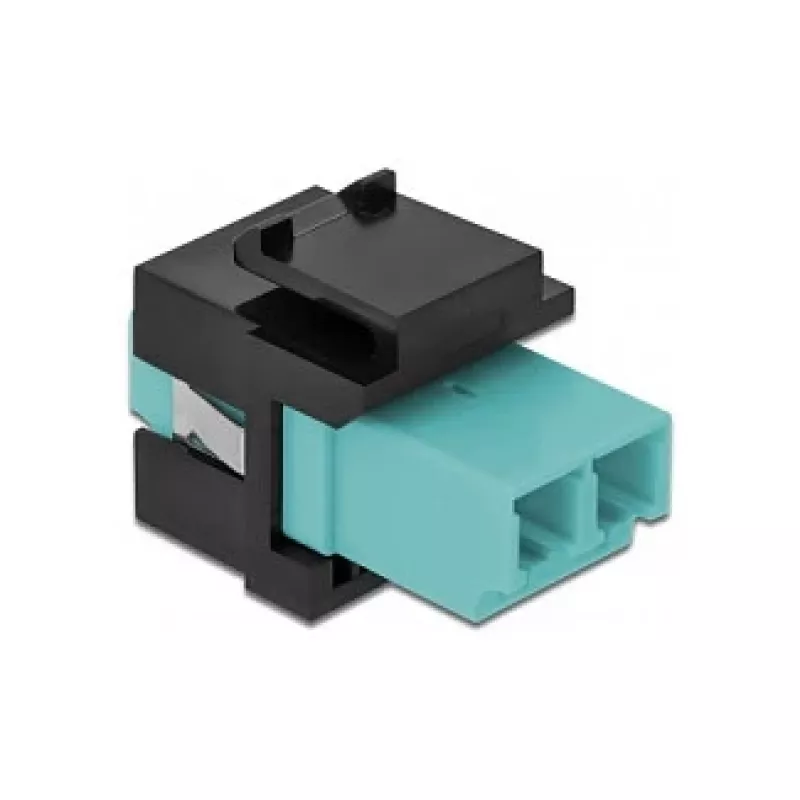

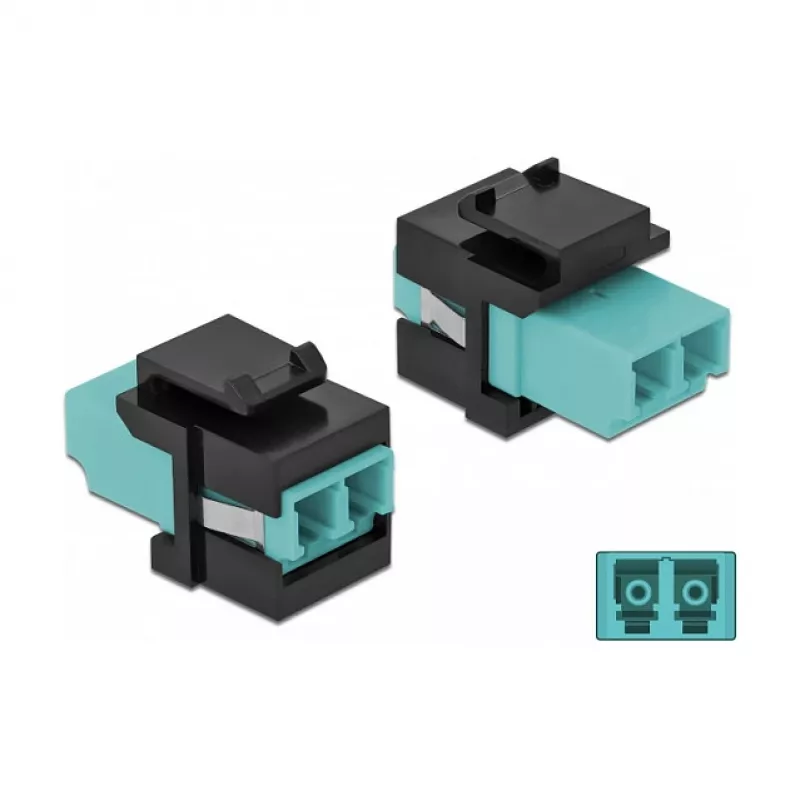

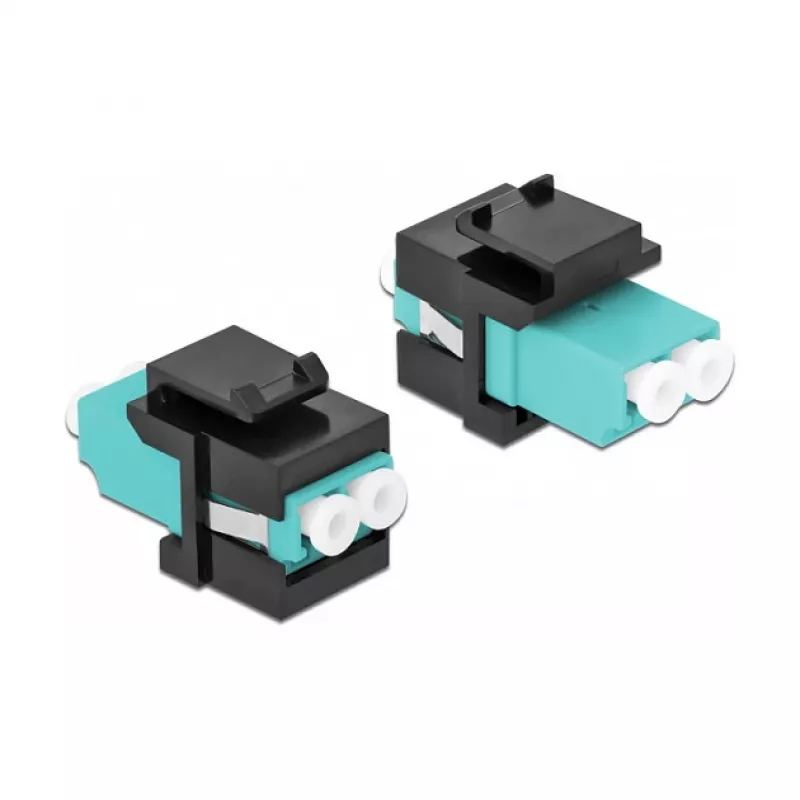

The Delock Keystone Module LC Duplex female to LC Duplex female provides a compact adapter for extending fiber optic connections. It features LC Duplex female connectors in an aqua and black color scheme and a flat construction suitable for snap-in mounting in compatible keystone patch panels, face plates or surface-mount boxes. Manufactured in Germany, the module is designed for reliable connectivity in network installations.

Advantages

The module's standardized keystone dimensions allow straightforward snap-in installation into keystone frames and wall plates. Its LC Duplex female to LC Duplex female interface supports duplex fiber connections while the low-profile, flat construction helps save space in patch panels and enclosures. Color coding (aqua/black) simplifies identification of fiber types or channels.

Suitable for

• Extending LC duplex fiber optic links
• Installation in keystone patch panels and face plates
• Use in surface-mount boxes and network enclosures

Key specifications

• Connector type: LC Duplex female to LC Duplex female
• Dimensions (W × D × H): 16.5 × 29.2 × 21.9 mm
• Construction: flat keystone module
• Color: aqua / black
• Brand: DELOCK
• Manufacturer part number (MPN): 86720
• EAN: 4043619867202
• Country of manufacture: Germany

How to use

Insert the module into a compatible keystone opening until it snaps into place, then connect LC Duplex fiber patch cords to the female LC ports. Ensure connectors are clean before mating to maintain signal integrity. For removal, depress the module's retaining tabs and pull it out straight to avoid stressing connected cables.

Recommendations

Use with LC Duplex multimode fiber patch cords that match the aqua color coding for best compatibility; clean connectors with appropriate fiber cleaning tools before installation and avoid bending fiber cables beyond their minimum bend radius.
