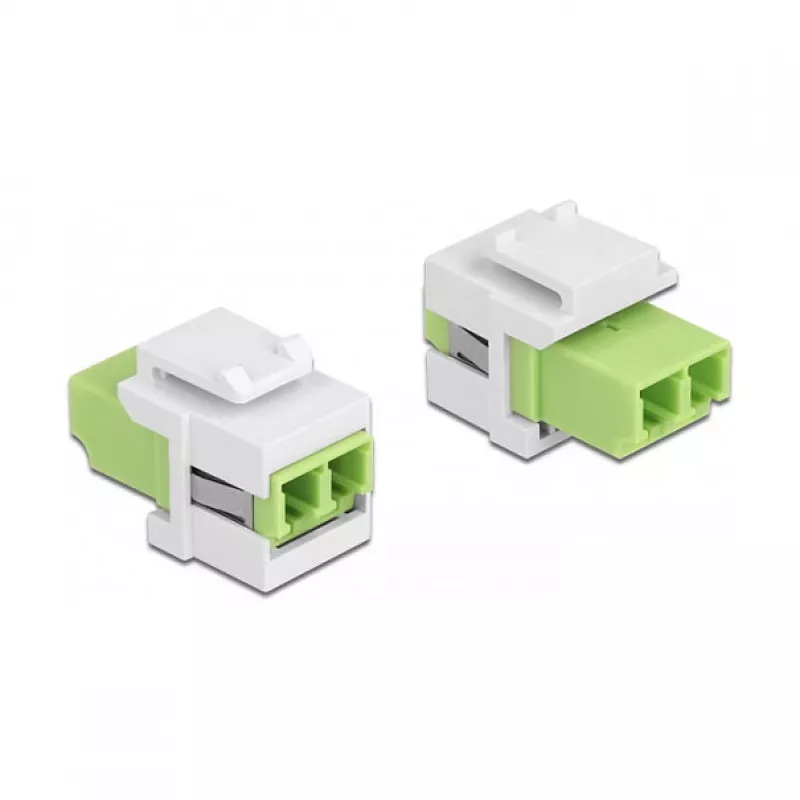

Keystone-module LC duplex bus naar LC duplex bus DeLOCK 86816

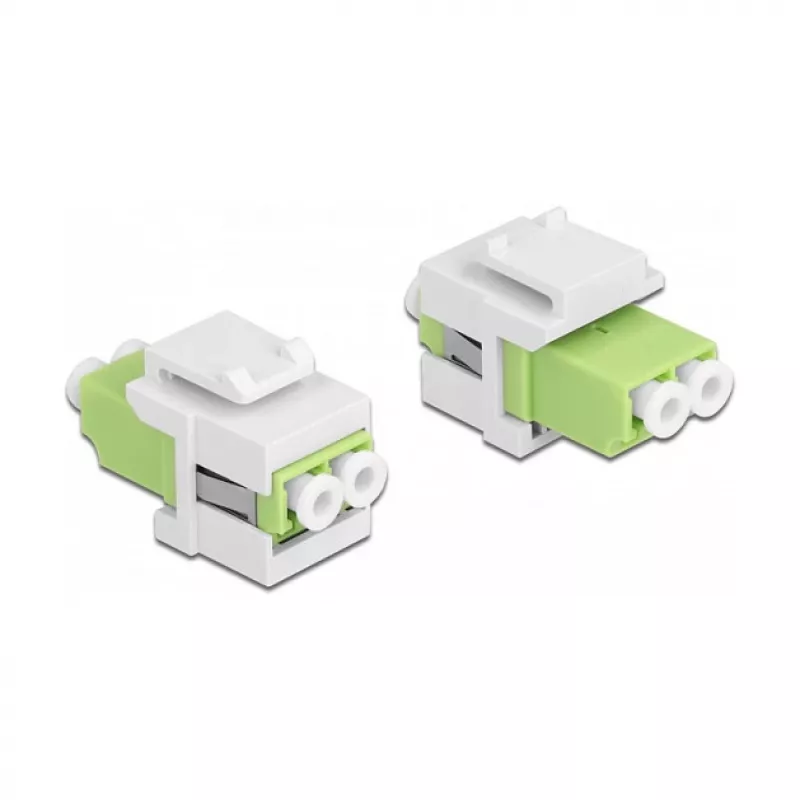

The DeLOCK Keystone Module LC Duplex female to LC Duplex female (model 86816) is a compact adapter for extending fiber optic connections. It has a flat construction in green and white and fits standard keystone openings for snap-in mounting in keystone patch panels, face plates or surface-mount boxes. The module provides LC Duplex female to LC Duplex female coupling for straightforward fiber extension and connection management.

Advantages

The module offers a standardized keystone form factor for easy installation, compatible LC duplex female ports, and a compact size (16.5 mm width, 29.2 mm depth, 21.9 mm height) that fits common mounting panels and plates. Its simple snap-in design reduces installation time and helps maintain organized fiber connections.

Suitable for

• Extending LC duplex fiber optic cables
• Assembly in keystone patch panels
• Insertion into face plates and surface-mount boxes

Key specifications

• Connector type: LC Duplex female to LC Duplex female
• Model/MPN: 86816
• Brand: DELOCK
• Dimensions: 16.5 mm (W) × 29.2 mm (D) × 21.9 mm (H)
• Color: green and white
• EAN: 4043619868162

How to use

Align the module with a standard keystone opening in your patch panel, face plate or surface-mount box and press it into place until it snaps in. Insert LC duplex fiber connectors into each LC female port to couple and extend fiber runs. To remove, depress the module latch and pull it out gently.

Recommendations

Use in equipment and enclosures designed for keystone modules; ensure connectors are clean before mating and avoid excessive bending of fiber cables near the module to maintain signal integrity.
