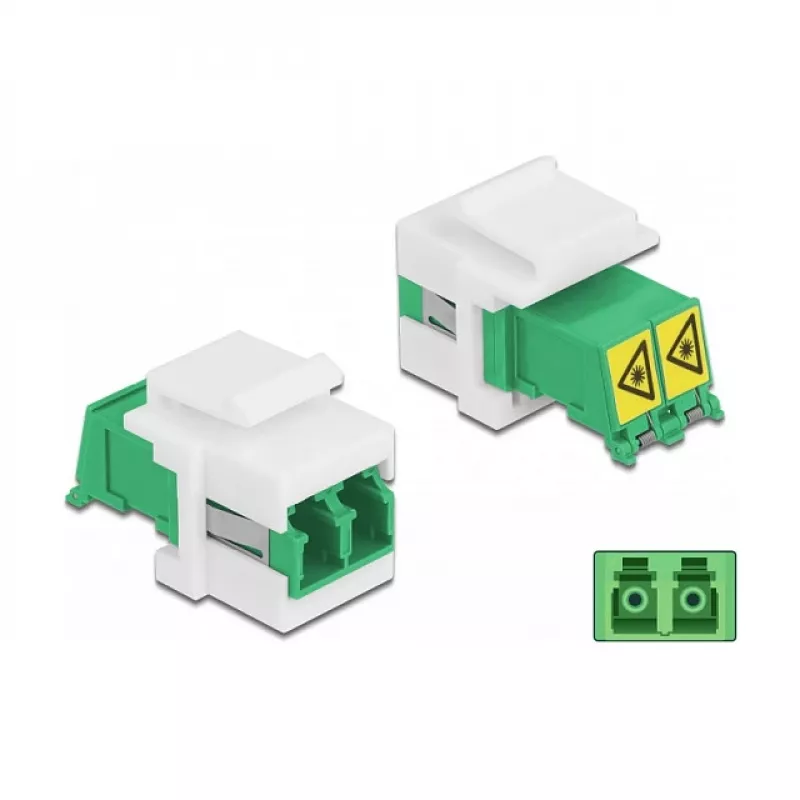

Keystone-module LC duplex bus naar LC duplex bus DeLOCK 86833

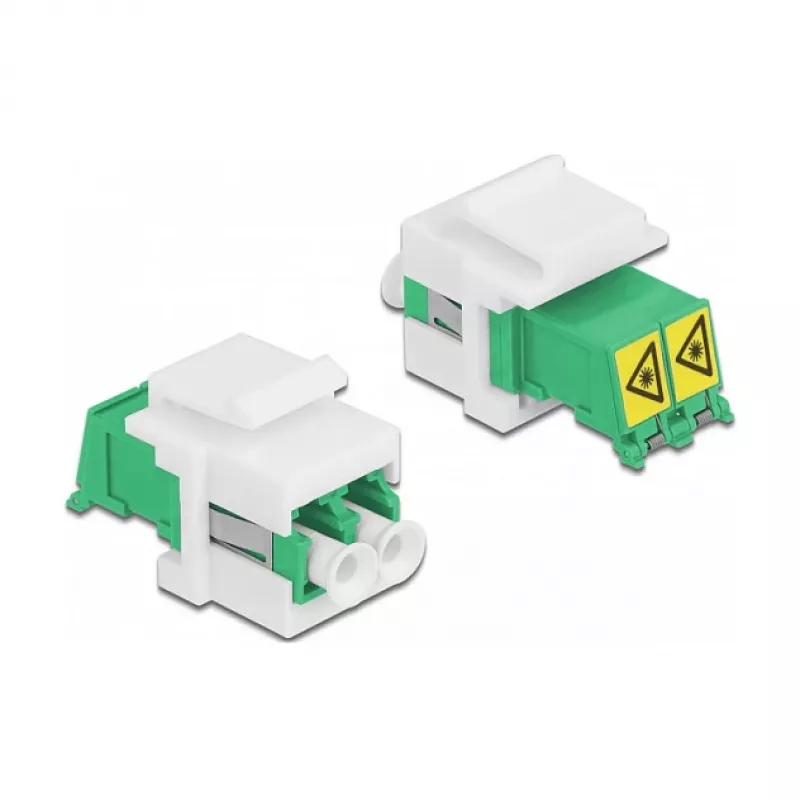

This Keystone module LC Duplex female to LC Duplex female by DELOCK provides a compact interface for connecting two LC Duplex fiber optic male connectors. Designed for installation in keystone patch panels, faceplates or surface-mount boxes, the module features a flat construction in green and white and measures 20 mm × 34 mm × 15 mm. The built‑in flip mechanism offers protection against laser radiation and the supplied dust cap keeps the coupling sleeve clean.

Advantages

The keystone module offers simple integration into standard keystone openings, a space-saving flat design and laser protection via an internal flip. A dust cover is included to protect the ferrule from contamination and ensure reliable optical performance.

Suitable for

• Keystone patch panels
• Faceplates for wall outlets
• Surface-mount and multimedia boxes
• Fiber optic patching and short interconnections

Key specifications

• Connector: LC Duplex female to LC Duplex female
• Protection: integrated flip for laser protection
• Dust protection: supplied dust cap for the coupling sleeve
• Dimensions: 20 mm (W) × 34 mm (D) × 15 mm (H)
• Color: green / white
• Brand / MPN / EAN: DELOCK / 86833 / 4043619868339

How to use

Insert the module into a compatible keystone opening until it snaps into place. Remove the dust cap before connecting fiber optic patch cords. When connecting, open the internal flip if required to allow physical contact; after disconnecting, close the flip and replace the dust cap to maintain cleanliness. Ensure connectors are clean and properly aligned to avoid signal loss.

Recommendations

Use only clean LC Duplex patch cords and inspect connectors with appropriate cleaning tools before mating. Replace the dust cap when the coupling is not in use and install the module in compliant keystone panels or faceplates to maintain mechanical stability and optimal optical performance.
