Keystone-module Mini DisplayPort-bus 110° DeLOCK 86860

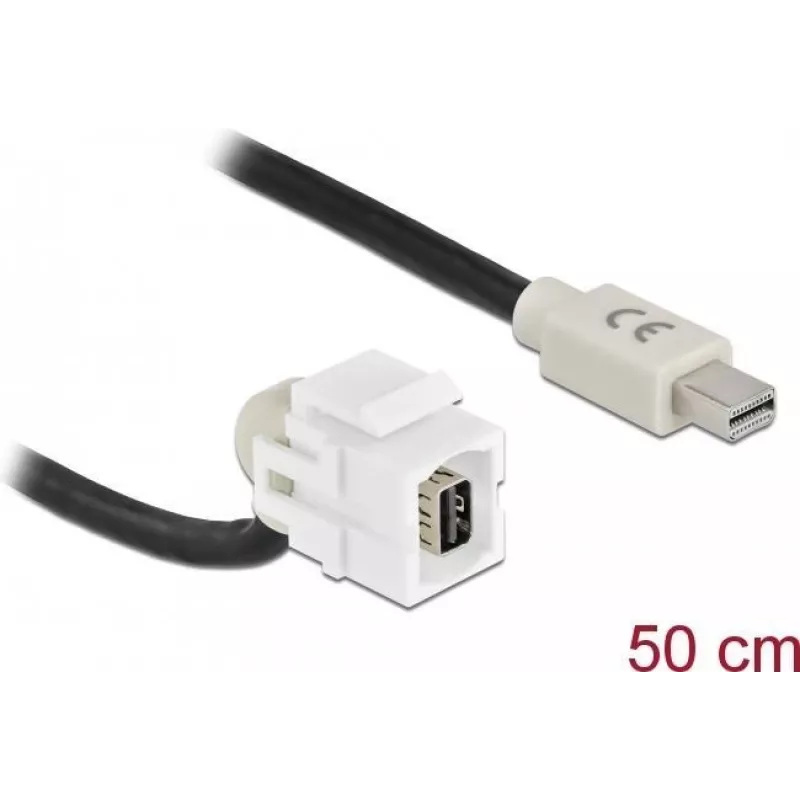

The DeLOCK Keystone Module mini DisplayPort female 110° is a compact insert designed to extend or adapt mini DisplayPort connections. With a standardized keystone housing and a short angled cable, it enables low-profile installation in keystone panels, faceplates or surface-mount boxes and provides a reliable interface for mini DisplayPort male cables supporting high-definition video and audio transmission. The flat, white construction reduces mounting depth, making it suitable for tight spaces and cable ducts.

Advantages

The 110° angled mini DisplayPort female connector minimizes required mounting depth and simplifies installation in recessed or hard-to-reach locations. Standardized keystone dimensions allow snap-in mounting into compatible panels and faceplates. The compact, flat design and neutral white colour make the module unobtrusive in modern installations while maintaining a stable connection to mini DisplayPort male cables.

Suitable for

• Extending or adapting mini DisplayPort connections in AV racks and patch panels
• Installation in keystone wall plates and faceplates
• Space-constrained setups such as shallow cabinets, equipment housings or cable ducts

Key specifications

• Connector 1: Mini DisplayPort
• Connector 2: Mini DisplayPort (female, 110° angled)
• Product colour: White
• Form factor: Keystone module, flat/low-profile construction

How to use

Insert the module into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it snaps into place. Connect a mini DisplayPort male cable to the module's female connector at the 110° angle to route the cable neatly and avoid excessive bending. Ensure the mating connector is fully seated to maintain reliable video and audio transmission.

Recommendations

Use the module with properly rated mini DisplayPort cables and install it in compatible keystone plates or housings. Avoid forcing the cable at sharp angles beyond the intended 110° orientation, and ensure sufficient strain relief to prevent stress on the connector.
