Keystone-module SC simplex bus naar SC simplex bus DeLOCK 86812

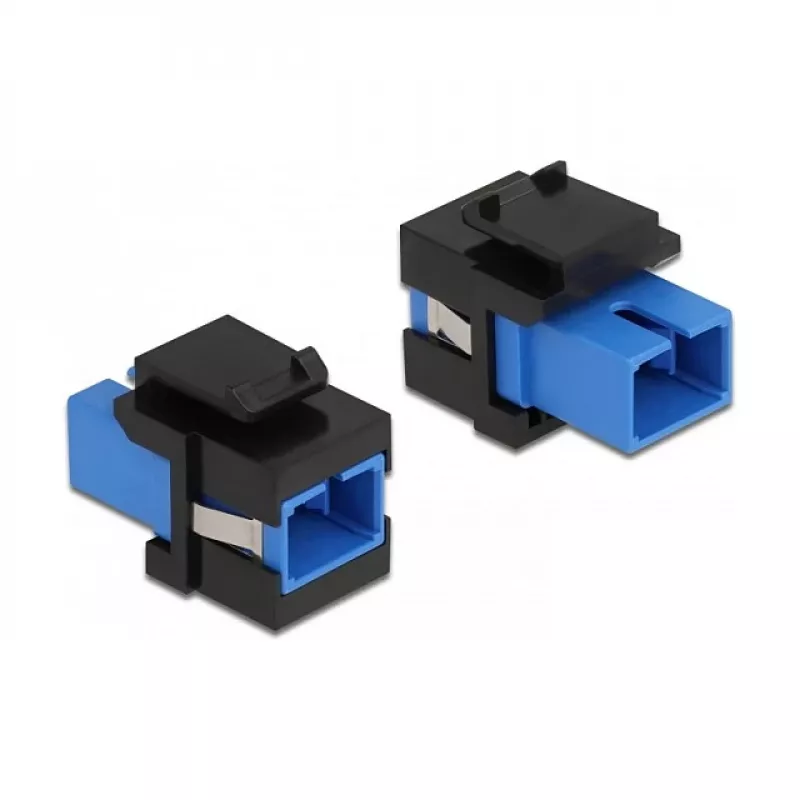

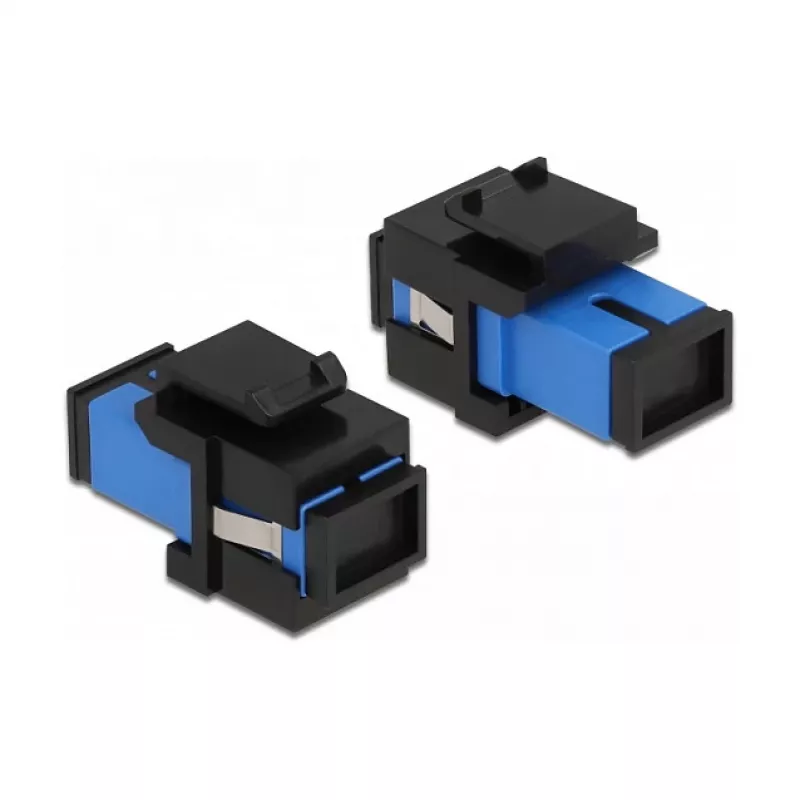

The DeLOCK Keystone Module SC Simplex (female to female) provides a compact, snap-in solution for extending fiber optic connections. Its standardized keystone dimensions and flat construction allow installation in keystone patch panels, faceplates or surface-mount boxes. The module has a black and blue housing and uses SC simplex female couplers for reliable fiber connections.

Advantages

The module’s standardized keystone format ensures compatibility with common keystone panels and wall plates. Its flat, space-saving design and compact dimensions (16.5 mm width, 27.4 mm depth, 21.9 mm height) simplify installation and reduce required space. SC simplex female couplers provide a stable, widely used interface for single-fibre connections.

Suitable for

• Extending single-fibre SC simplex connections in local networks
• Installation in keystone patch panels and wall plates
• Use in surface-mount boxes and small networking enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86812
• EAN: 4043619868124
• Connector: SC simplex female to SC simplex female
• Dimensions: 16.5 mm (W) x 27.4 mm (D) x 21.9 mm (H)
• Color: black / blue
• Category: Accessories for networks

How to use

Insert the keystone module into a compatible keystone opening until it snaps into place. Connect SC simplex fiber patch cables to each SC female coupler, ensuring correct alignment and secure seating of the connectors. For removal, press the module’s retaining clips and pull it out of the keystone port. Follow standard fibre handling procedures to avoid contamination of ferrules and connectors.

Recommendations

Handle fibre connectors by the boot or connector body, keep dust caps in place until connection, and clean connector end-faces with appropriate fibre cleaning tools before mating to ensure stable signal transmission.
