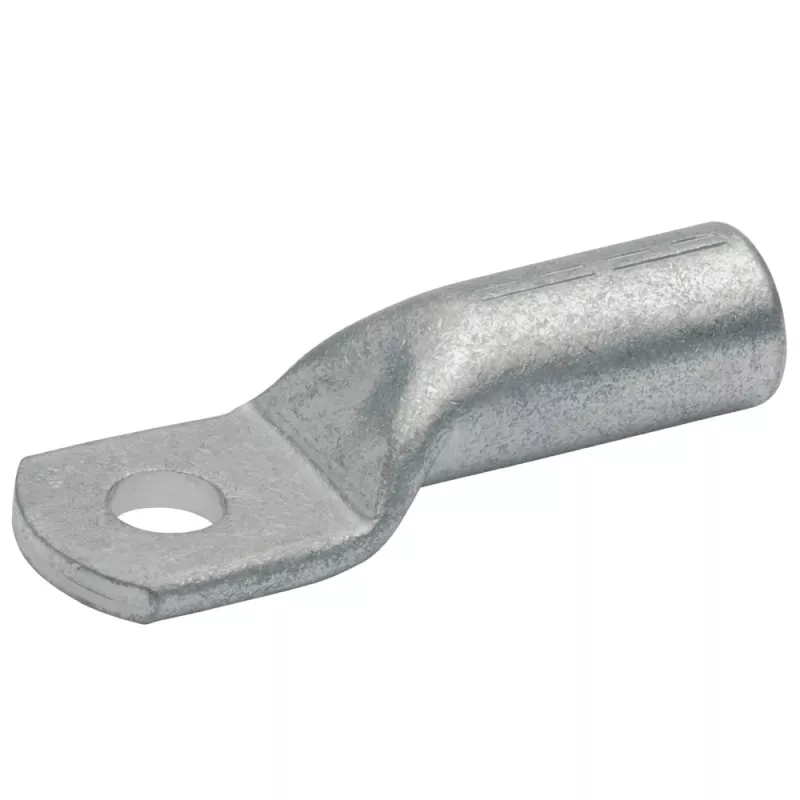

Klauke 106R10 kabelschoen, vertind, koperbuis, 50 mm², M10, grijs

The Klauke 106R10 is a high-quality tinned copper tube lug designed for reliable crimp connections of stranded copper conductors with a cross-section of 50 mm². Manufactured from electrolytic copper (E-Cu) with a tinned surface, it offers excellent corrosion resistance and conductivity. The lug features a single bolt hole with a diameter of 10.5 mm (M10) and complies with DIN 46235 standards, ensuring professional and secure terminations in electrical installations.

Advantages

This tube lug provides a durable and low-resistance connection, essential for high-performance electrical systems. The tinning protects against oxidation, while the precise dimensions guarantee a perfect fit for M10 bolts. Its robust construction ensures long-term reliability even in demanding environments.

Suitable for

• Power distribution and control panels
• Industrial machinery and equipment
• Renewable energy systems (solar, wind)
• Automotive and marine electrical systems
• General electrical wiring and maintenance

Key specifications

• Cable cross-section: 50 mm²
• Bolt hole diameter: 10.5 mm (M10)
• Material: Electrolytic copper (E-Cu), tinned
• Connection method: Crimp
• Lug type: Tube lug
• Total length (L): 48 mm
• Palm width (B): 18 mm
• Inner barrel diameter (D1): 9.5 mm
• Outer barrel diameter (d): 12.5 mm
• Material thickness (S): 2.5 mm
• Colour: Grey
• Operating temperature: -5 °C to +105 °C
• RoHS compliant: Yes
• Halogen free: Yes
• Number of bolt holes: 1
• Standard: DIN 46235

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper stripping and insertion of the conductor. Always follow manufacturer guidelines and applicable electrical codes.
