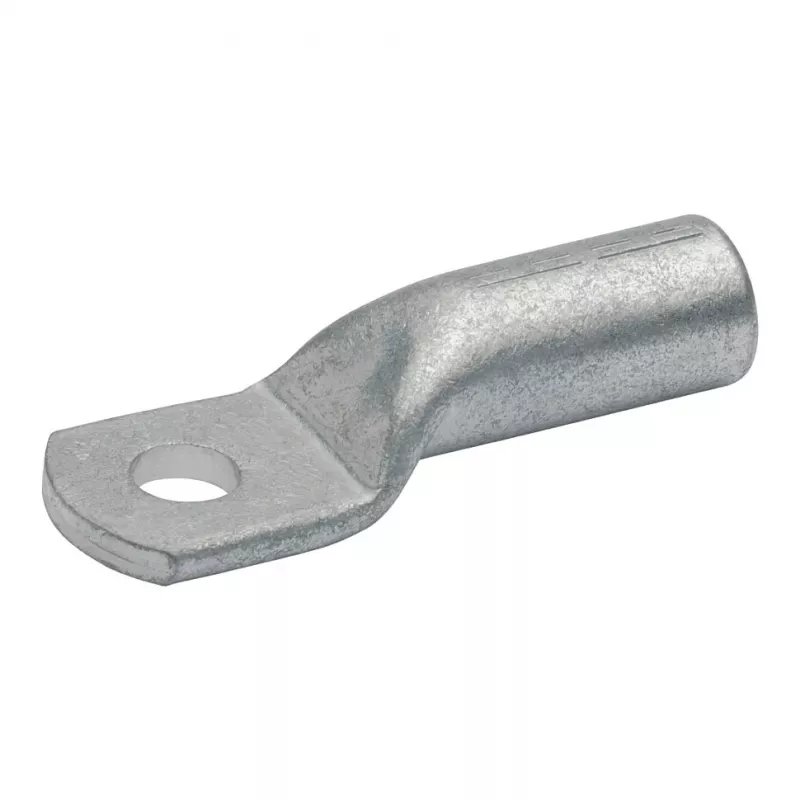

Klauke 112R12 vertinde koperen kabelschoen, 240 mm², M12-boutgat, recht

The Klauke 112R12 is a high-quality tin-plated copper cable lug designed for reliable and durable connections in electrical installations. Manufactured from seamless drawn electrolytic copper (E-Cu) with a galvanic tin plating, this lug ensures excellent corrosion resistance and conductivity. Suitable for copper conductors up to 240 mm², it features a straight design with an M12 bolt hole, making it ideal for a wide range of industrial and commercial applications.

Advantages

Tin-plated surface provides superior protection against oxidation and corrosion, ensuring long-term performance. The seamless drawn tube construction guarantees high mechanical strength and consistent electrical properties. An inspection hole allows for easy verification of proper conductor insertion, enhancing installation reliability.

Suitable for

• Power distribution and transmission systems
• Industrial machinery and equipment
• Electrical panel and switchgear connections
• Renewable energy installations (solar, wind)
• Automotive and marine electrical systems

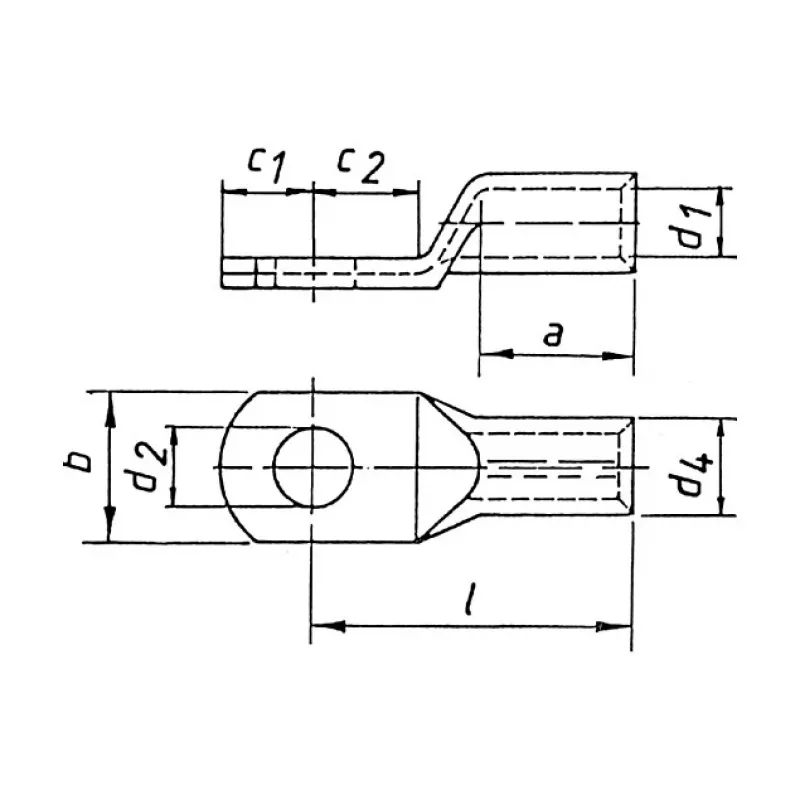

Key specifications

• Conductor cross-section: 240 mm²
• Bolt hole diameter: 13 mm (for M12 bolts)
• Overall length: approx. 85 mm
• Inner diameter (conductor entry): approx. 20.5 mm
• Outer diameter (tube): approx. 25 mm
• Palm width: approx. 28 mm
• Palm thickness: approx. 4 mm
• Material: Electrolytic copper (E-Cu), tin-plated
• Connection angle: Straight (180°)
• Manufacturing process: Seamless drawn tube
• Inspection hole: Yes
• Colour: Metallic grey (tin-plated)

Recommendations

For optimal performance, use with appropriate crimping tools and ensure the conductor is fully inserted into the lug before crimping. Always follow manufacturer guidelines and applicable electrical codes.
