Koelsysteem DeLOCK 18286

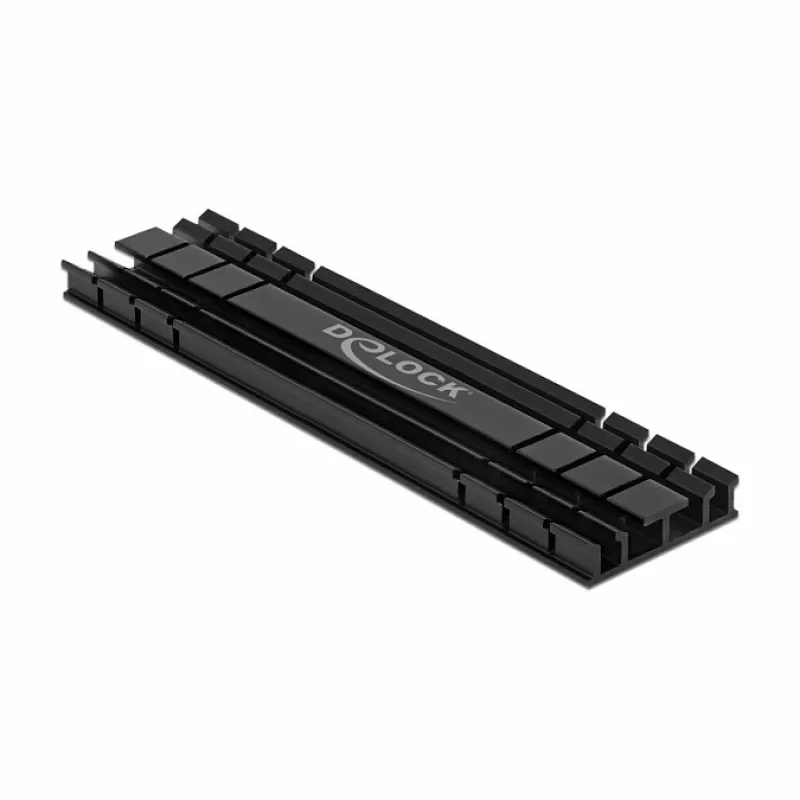

The DeLOCK 18286 cooling system is a compact aluminum heat sink designed for thermal management of M.2 modules. Finished in black, it provides passive heat dissipation and is attached to the M.2 module using the included self-adhesive thermal pads.

Advantages

The aluminum construction offers good thermal conductivity while keeping weight low. Its slim dimensions (22 mm × 100 mm × 5.2 mm) allow compatibility with most M.2 form factors and system layouts. The included self-adhesive thermal pads simplify installation and ensure a secure contact between the heat sink and the module.

Suitable for

• Cooling M.2 SSDs
• Improving thermal performance in compact desktop builds
• Upgrading cooling on motherboards and expansion cards with M.2 slots

Key specifications

• Brand: DELOCK
• Model / MPN: 18286
• EAN: 4043619182862
• Material: Aluminum
• Colour: Black
• Dimensions (W × D × H): 22 mm × 100 mm × 5.2 mm

How to use

Clean the surface of the M.2 module to remove dust and grease. Peel the backing from the supplied self-adhesive thermal pads and place them on the M.2 module where the heat sink will contact. Align the DeLOCK 18286 heat sink with the module and press firmly to ensure full contact with the thermal pads. Reinstall the M.2 module into the slot according to your system manufacturer6s instructions.

Recommendations

Ensure there is adequate airflow in the system case for optimal passive cooling. Do not force the heat sink into cramped slots where it could interfere with adjacent components. Replace thermal pads if removed and reinstalled to maintain proper thermal transfer.
