KOPOS KEZ-3_KB 3-voudige installatiedoos voor gevelisolatiesystemen, oranje

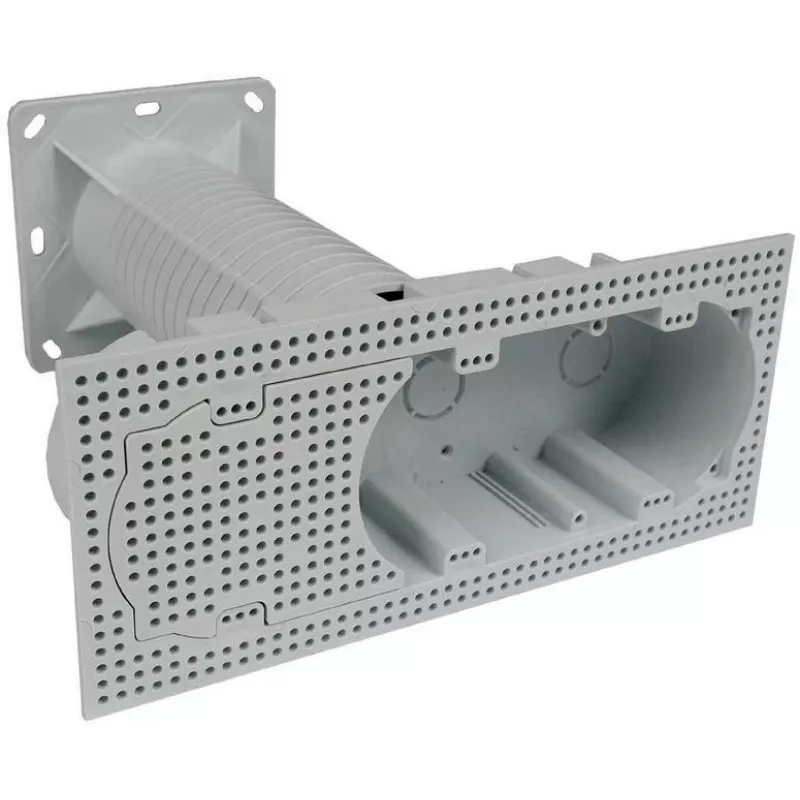

The KOPOS KEZ-3_KB is a high-quality 3-gang installation box designed specifically for use in External Thermal Insulation Composite Systems (ETICS/EIFS). Manufactured from self-extinguishing polypropylene, this box ensures safe and reliable mounting of electrical devices such as switches and sockets on insulated facades. Its adjustable design accommodates insulation thicknesses from 100 mm to 250 mm, making it a versatile solution for various construction requirements.

Advantages

This installation box offers exceptional durability and safety. The self-extinguishing polypropylene material provides fire resistance for up to 30 minutes, enhancing building safety. It is halogen-free and UV-resistant, ensuring long-term performance even in exposed environments. The pre-drilled knock-out entries simplify cable installation, while the IP30 rating (with appropriate cover) protects against dust ingress.

Suitable for

• Mounting electrical devices on insulated facades in residential and commercial buildings
• Use with ETICS/EIFS systems requiring flush-mounted boxes
• Installations where fire safety and halogen-free materials are required

Key specifications

• Product Type: Installation Box for Insulated Facades
• Number of Gangs: 3-gang
• Material: Self-extinguishing Polypropylene (PP)

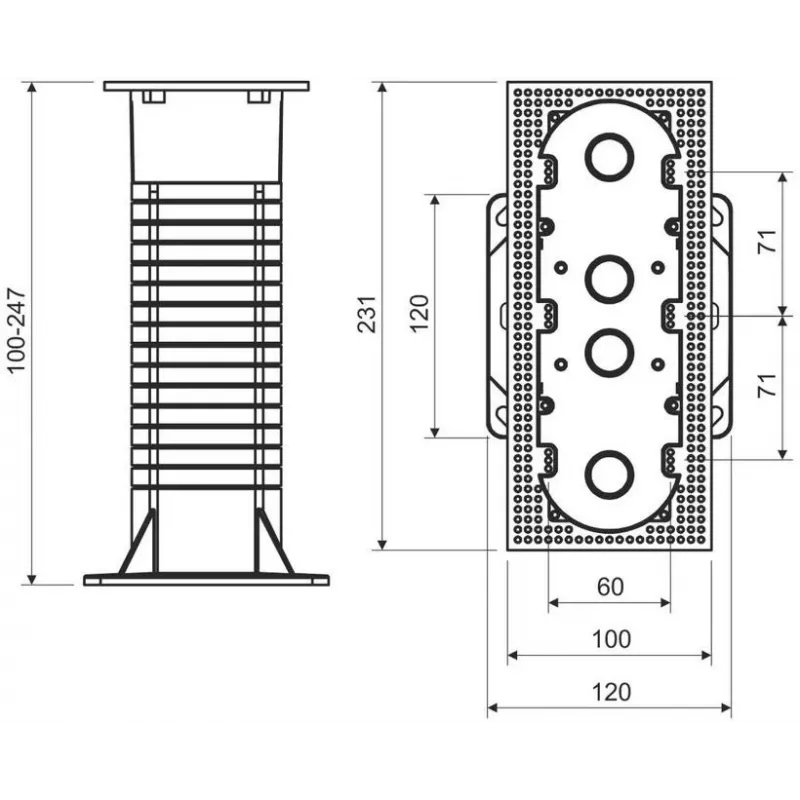

• Insulation Thickness Compatibility: 100 mm to 250 mm
• Temperature Resistance: -25 °C to +60 °C
• IP Rating: IP30 (with appropriate cover)
• Fire Resistance: 30 minutes
• Installation Type: Flush-mounted in insulation
• Colour: Orange
• Cable Entry: Pre-drilled/Knock-out entries
• Halogen-free: Yes
• UV Resistance: Yes
• Standard Compliance: EN 60670-1, EN 60670-22
• Max. Device Depth: Up to 60 mm

Recommendations

For optimal performance, ensure the box is installed according to the manufacturer's guidelines and used with compatible covers and devices. The adjustable design allows for easy adaptation to different insulation thicknesses, making it a reliable choice for professional electricians.
