KOPOS MDFZ 80/VDZ_KB elektrische aftakdoos IP65 grijs 80 mm

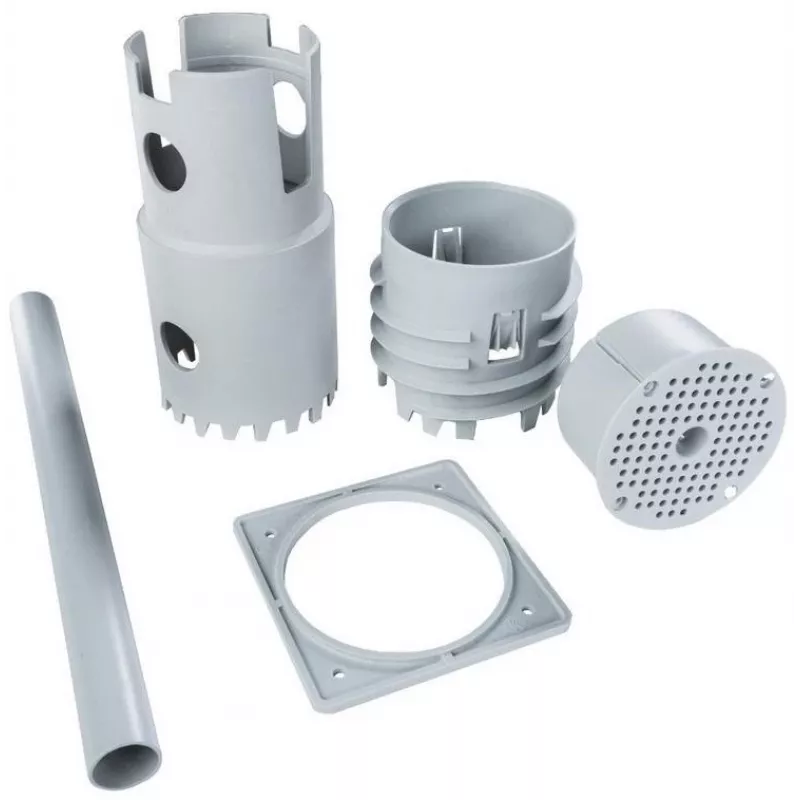

The KOPOS MDFZ 80/VDZ_KB is a high-quality electrical junction box designed for final insulation and termination of cable ends in electrical installations. Manufactured from durable polypropylene (PP) with IP65 ingress protection, this box ensures reliable performance in demanding environments. Its compact 80 mm outer diameter and 40 mm depth make it ideal for surface mounting, while the flexible membrane glands (VDZ type) allow for easy and clean cable entry. The snap-on lid provides quick access, and the box is halogen-free, UV-resistant, and self-extinguishing for enhanced safety.

Advantages

This junction box offers exceptional durability and protection against dust and water ingress, making it suitable for both indoor and outdoor use. The hole saw feature simplifies cable termination, reducing installation time. Its flame-retardant and halogen-free construction ensures compliance with modern safety standards, while the UV resistance guarantees long-term performance in sunlight-exposed areas.

Suitable for

• Final insulation and termination of cable ends in electrical installations
• Surface mounting in residential, commercial, and industrial settings
• Outdoor applications requiring IP65 protection
• Use with flexible membrane glands for clean cable entry

Key specifications

• Product Type: Electrical Junction Box
• Material: Polypropylene (PP)
• Colour: Grey (RAL 7035)
• Outer Diameter: 80 mm
• Depth: 40 mm
• Ingress Protection: IP65
• Temperature Resistance: -25 to +60 °C
• Flame Retardancy: Self-extinguishing (30 seconds)
• Halogen-Free: Yes
• UV Resistance: Yes
• Cable Entries: Flexible membrane glands (VDZ type)
• Special Feature: Hole Saw Feature for easy cable termination
• Standards Compliance: EN 60670-1, EN 60670-22
• Mounting Type: Surface Mount
• Lid Type: Snap-on

Recommendations

For optimal performance, ensure that the cable glands are properly tightened to maintain IP65 integrity. This box is ideal for use with KOPOS accessories and is recommended for professional electricians.
