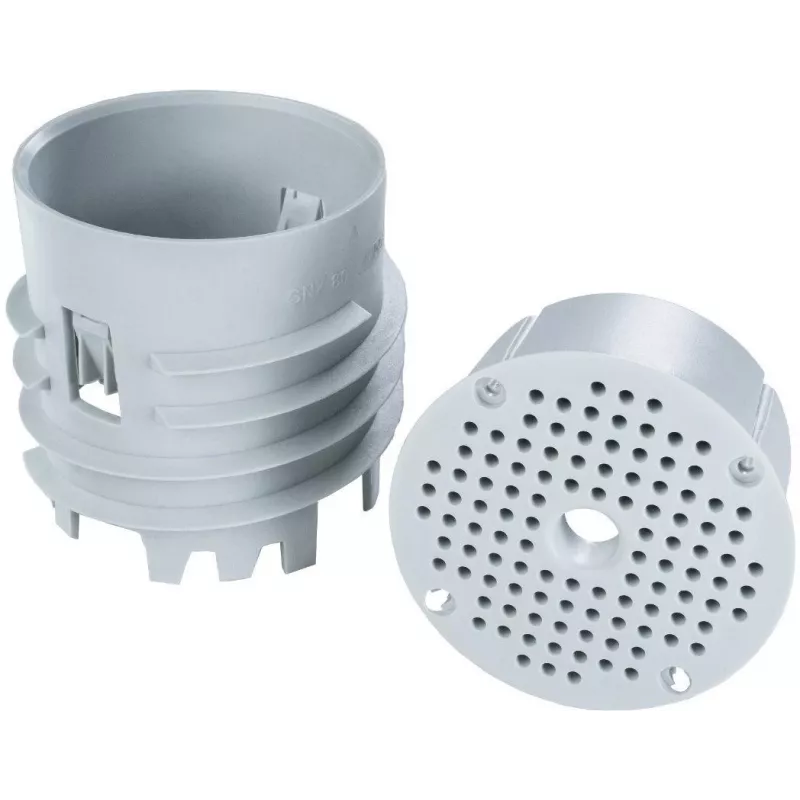

KOPOS MDFZ 80_KB elektro-installatiedoos voor geïsoleerde gevels, oranje, 80 mm

The KOPOS MDFZ 80_KB is a high-quality electrical installation box designed specifically for use in insulated facades and thermal insulation systems. Manufactured from halogen-free polypropylene, this box offers excellent durability and safety for electrical installations in building envelopes.

Advantages

This installation box is halogen-free, self-extinguishing, and UV-resistant, ensuring long-term reliability and compliance with modern building standards. Its design allows for easy embedding in thermal insulation layers, providing a secure mounting point for electrical outlets or switches.

Suitable for

• Installation in external thermal insulation composite systems (ETICS)
• Embedding in insulation layers of facades
• Use with conduits and cables in building envelopes

Key specifications

• Product Type: Electrical Installation Box
• Application: Insulated Facades, Thermal Insulation Systems
• Material: Halogen-free Polypropylene (PP)
• Colour: Orange

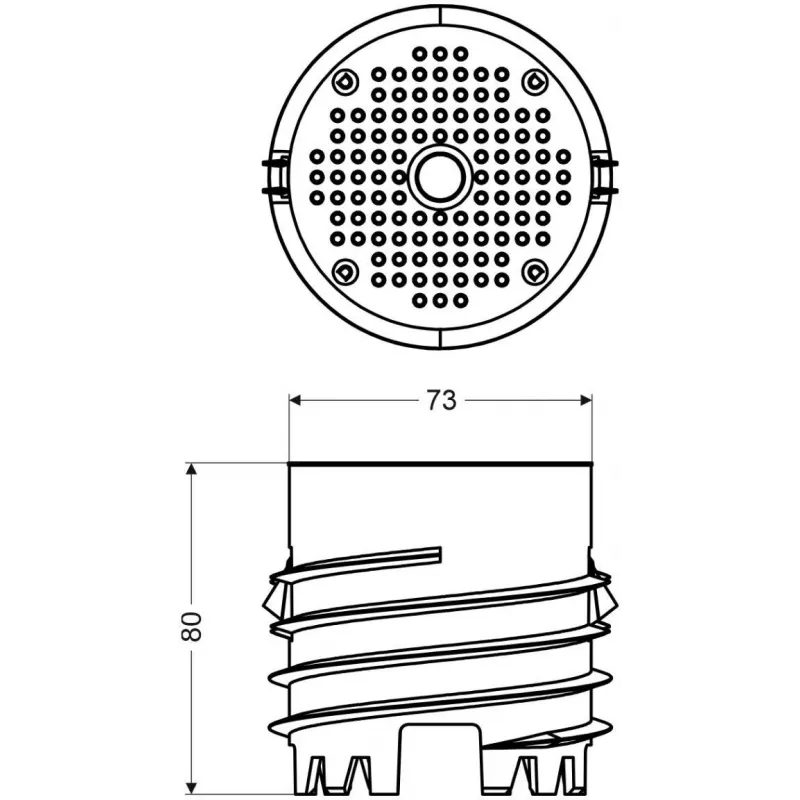

• Box Diameter: 80 mm
• Box Depth: 60 mm
• Mounting Plate Dimensions: 120 x 120 mm
• Ingress Protection (IP) Rating: IP30
• Insulation Thickness Compatibility: 50 - 200 mm
• Temperature Resistance: -25 °C to +60 °C
• Flammability Class: Self-extinguishing
• Halogen-Free: Yes
• UV Resistance: Yes
• Conduit Entry Diameter: 2x Ø20 mm
• Load Capacity: 40 N
• Installation Method: For embedding in thermal insulation
• Standards Compliance: EN 60670-1, EN 60670-22

Recommendations

For optimal performance, ensure the box is properly embedded in the insulation layer and that conduits are securely connected. Always follow local electrical codes and manufacturer guidelines.
