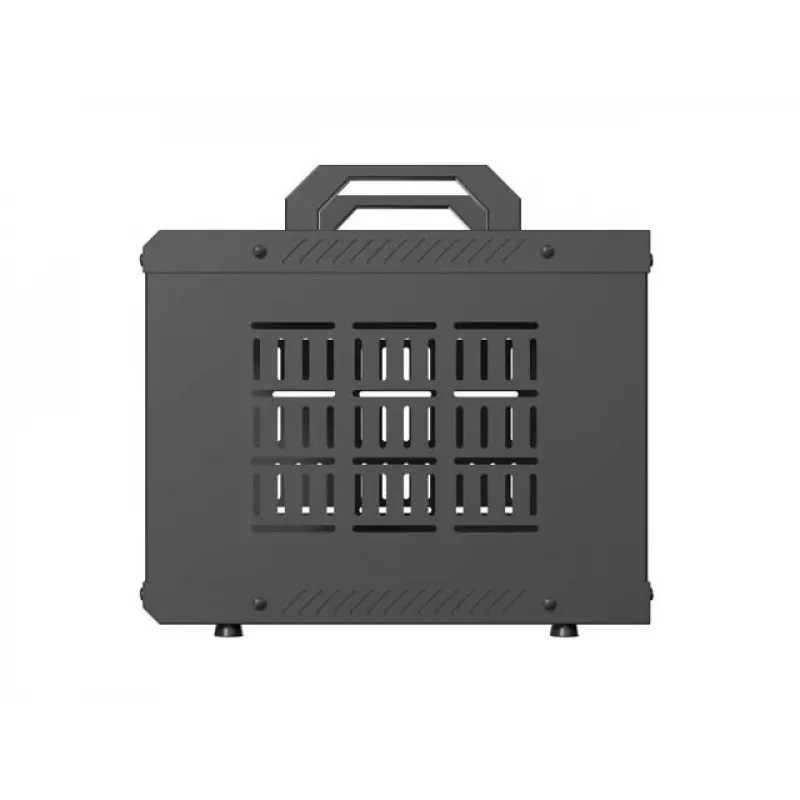

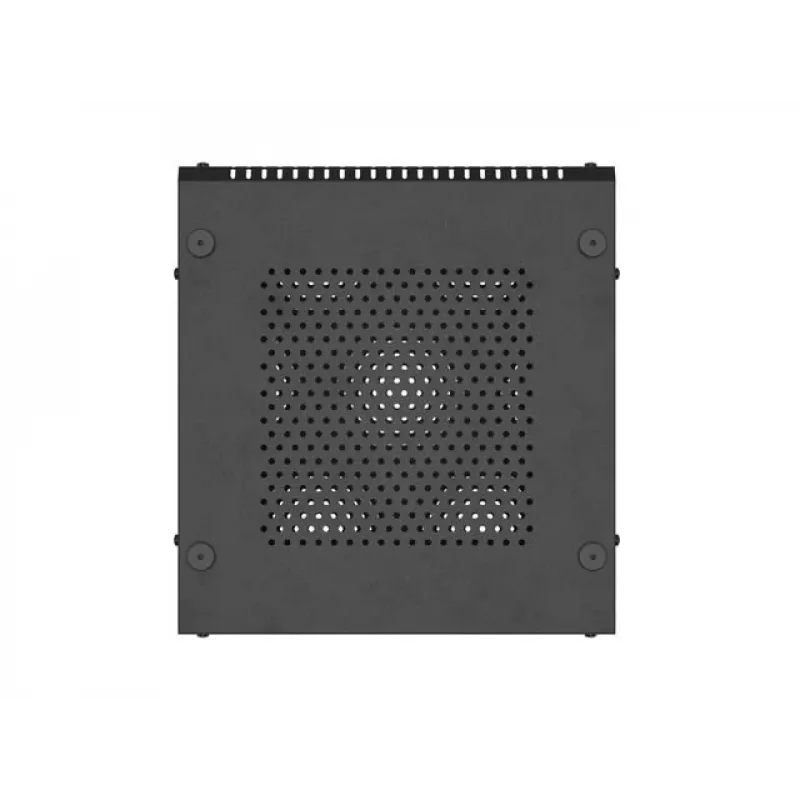

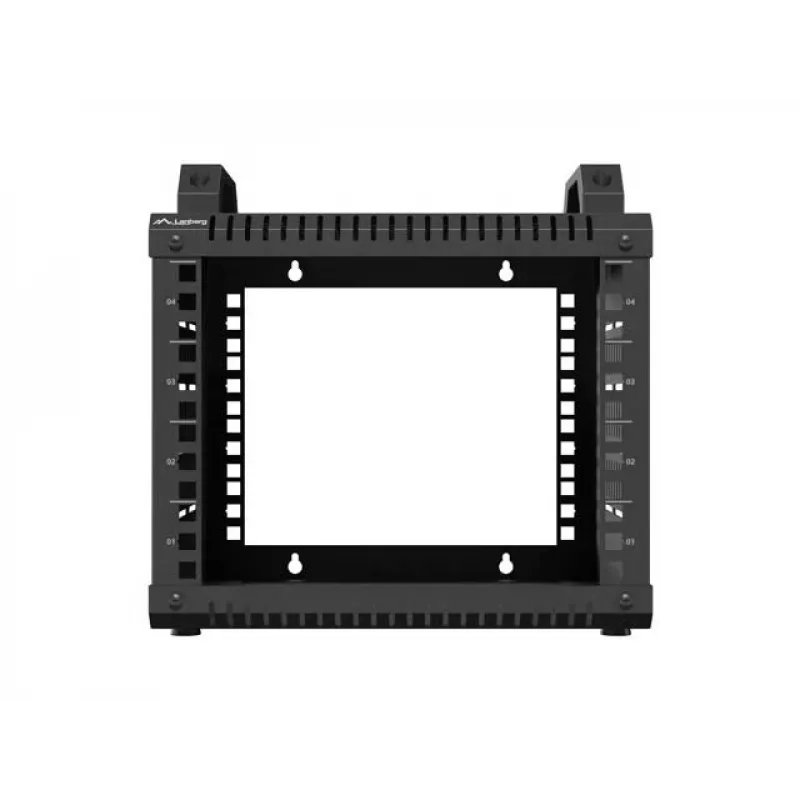

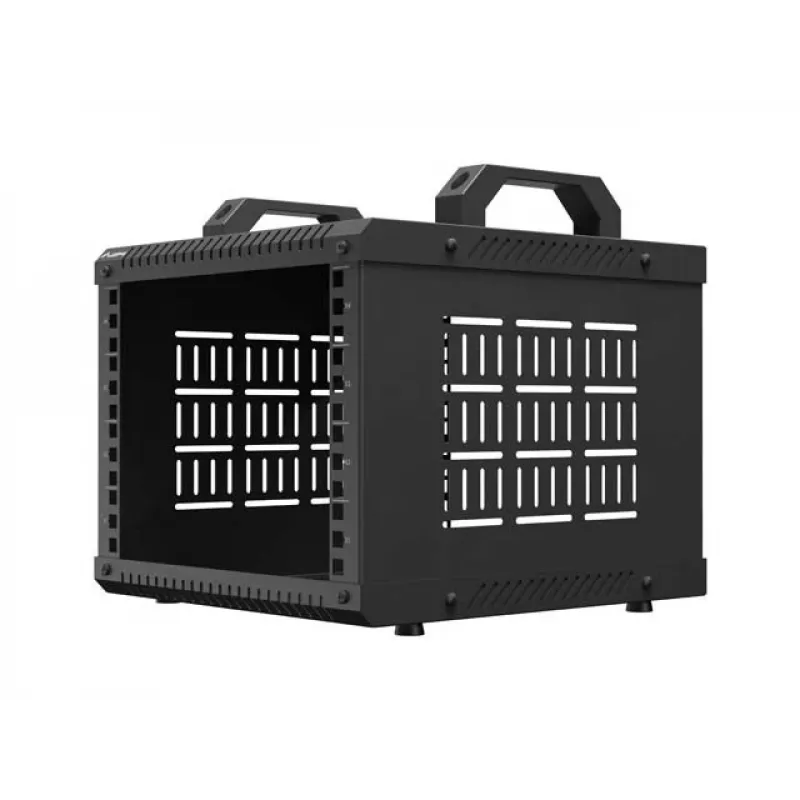

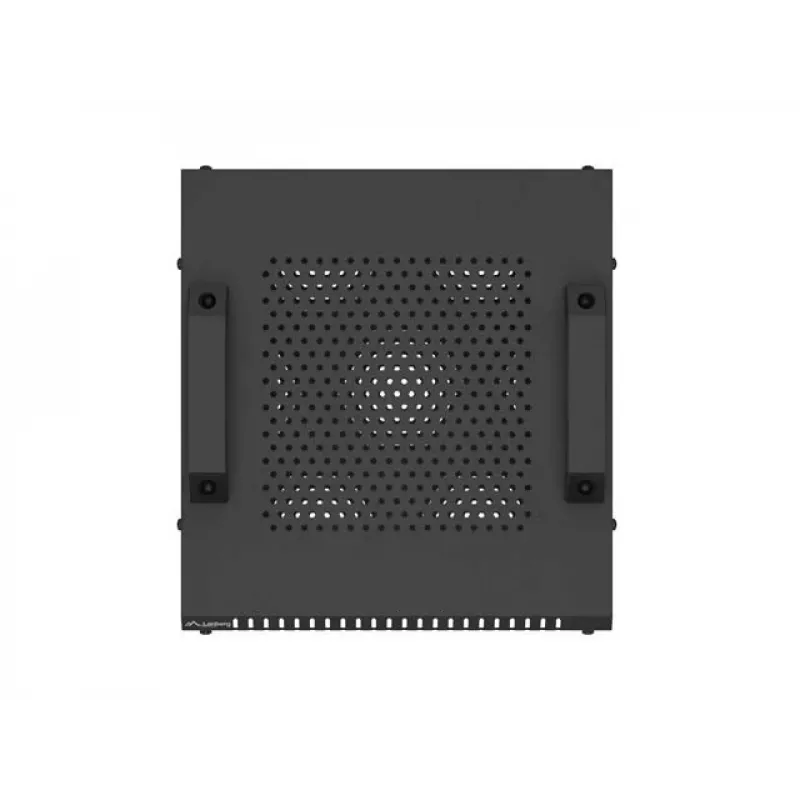

LANBERG Open Rack 10 inch 4U 280x300 zwart OR10-2304-B

Built from rugged steel with a powder-coated black finish, this 4U open-frame rack delivers a 20 kg static load capacity in a compact 280 x 300 mm footprint — perfect for 10-inch networking gear.

Overview

The LANBERG OR10-2304-B is a 10-inch open frame rack offering 4U of mounting space for patch panels, switches, and other 10-inch devices. Its open design ensures passive ventilation and easy cable access, while the steel construction with powder coating provides durability and a clean look. The rack can be wall-mounted or placed on a desktop, and it ships flat-packed with all necessary mounting screws and cage nuts for self-assembly.

What stands out

• 4U capacity for 10-inch equipment
• 20 kg maximum static load
• Open frame for excellent airflow and cable management
• Wall-mountable or desktop placement
• Includes mounting screws and cage nuts
• Powder-coated steel for long-lasting protection

Technical details

• Rack type: Open Frame Rack
• Rack standard: 10-inch
• Rack units: 4U
• External dimensions (W x D x H): 280 x 300 x 230 mm
• Material: Steel
• Colour: Black
• Finish: Powder coated
• Max static load capacity: 20 kg
• Assembly: Self-assembly (flat-packed)
• Mounting options: Wall-mountable, Desktop
• Compatibility: Designed for 10-inch networking devices
• Ventilation: Passive (open frame design)
• Cable management: Open access for easy cable routing
• Included accessories: Mounting screws, cage nuts
• Product series: OR10 (Open Rack 10-inch)

Our verdict

For small-scale network installations, the LANBERG OR10-2304-B offers a robust and flexible mounting solution. Its open frame design simplifies access and cooling, while the included hardware makes setup straightforward. A solid choice for home labs, offices, or compact IT environments.
