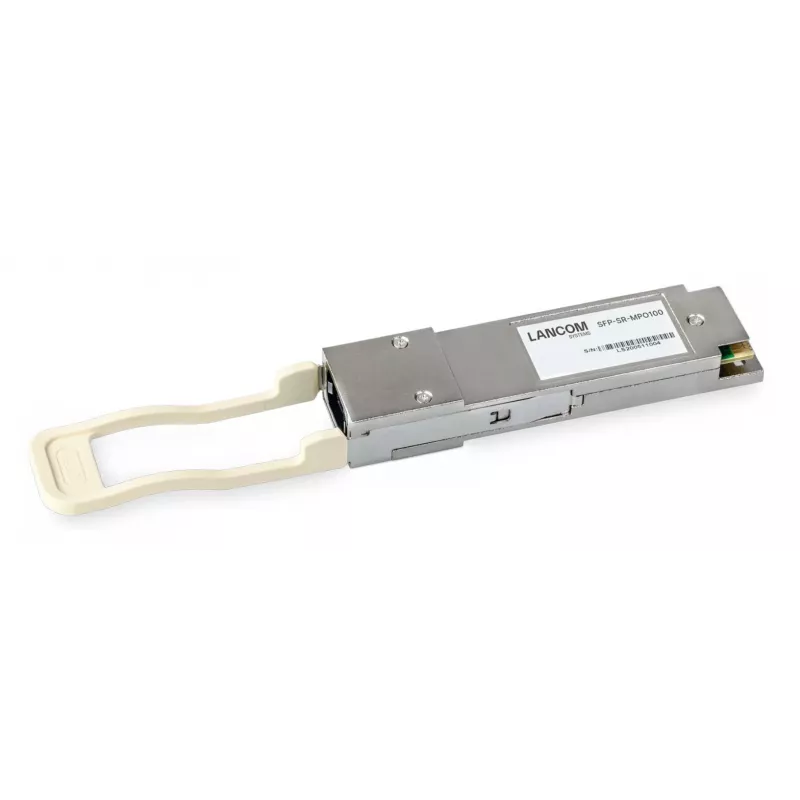

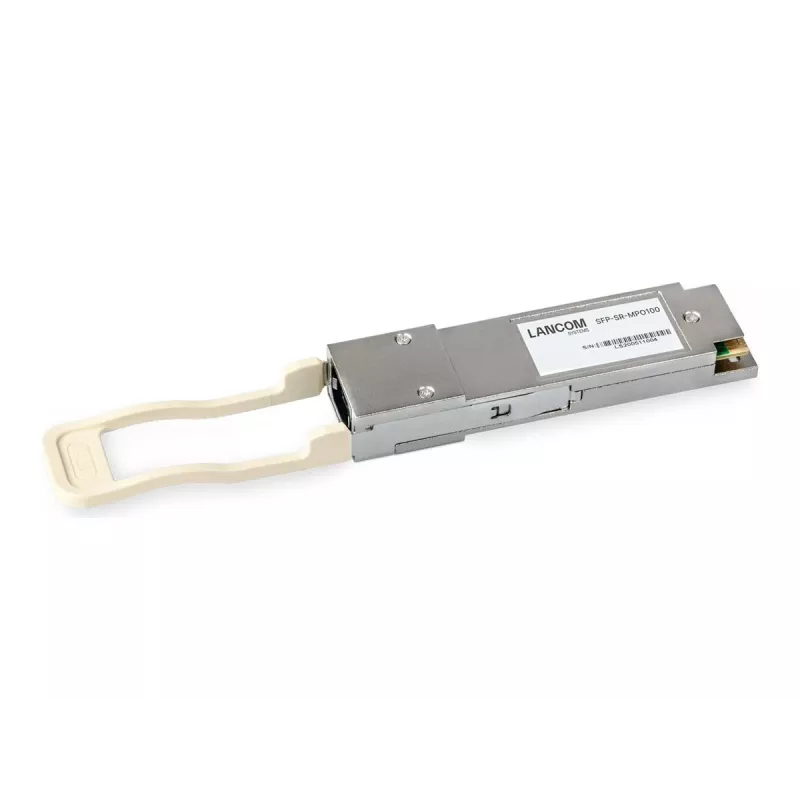

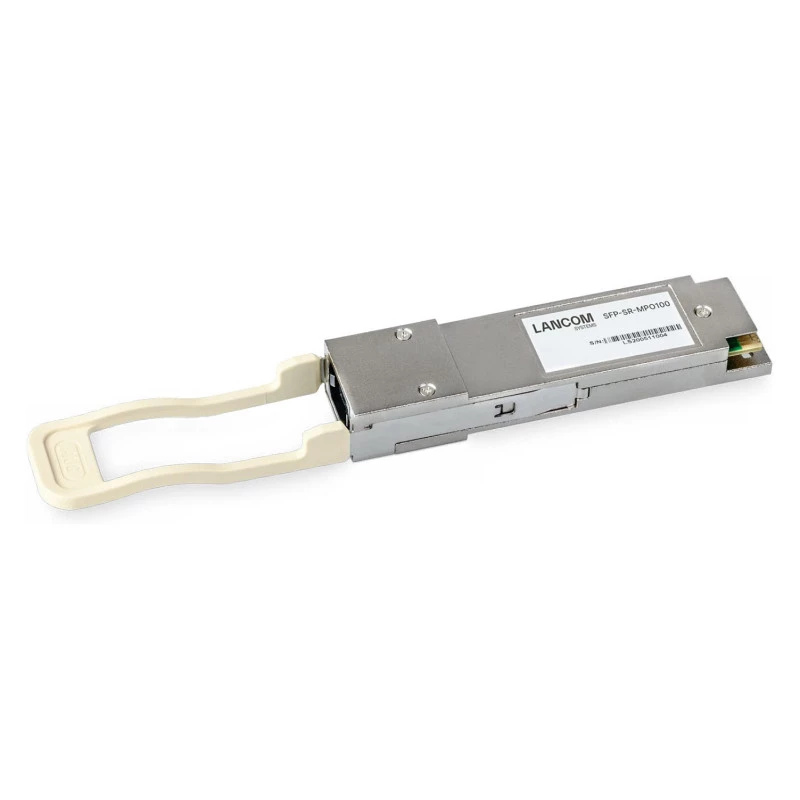

LANCOM QSFP28 100GbE 100GBase-SR4 transceiver-module, MPO-12 multimode, 850nm, 100m, verpakking van 10 stuks

This LANCOM QSFP28 optical transceiver module delivers 100 Gigabit Ethernet connectivity over multimode fiber, featuring a compact MPO-12 connector and supporting distances up to 100 meters. Engineered for high-density data center and enterprise networks, this pack of ten modules provides a cost-effective solution for deploying high-bandwidth links.

Highlights

• 100GBase-SR4 optical standard for reliable 100GbE performance
• QSFP28 form factor with hot-swappable design
• MPO-12 connector for high-density cabling
• Multimode fiber (MMF) support with 850nm wavelength
• Transmission distance up to 100m (328ft)
• Low power consumption (<3.5W) and DDM/DOM support
• Pack of 10 modules for multi-port deployments

In daily use

Ideal for connecting switches, routers, and servers in data centers and enterprise networks, these modules enable high-speed aggregation and spine-leaf architectures. The MPO-12 interface simplifies cable management, while the hot-swappable design allows for quick installation and maintenance without downtime.

Full specifications

• Device Type: Transceiver Module
• Form Factor: QSFP28
• Data Transfer Rate: 100 Gbps
• Ethernet Technology: 100 Gigabit Ethernet
• Optical Standard: 100GBase-SR4
• Cabling Type: Fiber Optic
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: MPO-12
• Wavelength: 850 nm
• Maximum Transfer Distance: 100 m (328 ft)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption (Max): < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA Compliant, RoHS, CE, FCC
• Quantity in Pack: 10 Modules
• Application: Data Center, Enterprise Networking, High-Performance Computing

Final note

This LANCOM QSFP28 module offers a robust and scalable solution for 100GbE network upgrades, combining high performance with ease of deployment.
