LAPP MOBILITY CEE laadadapter universeel, tot 11 kW, 3-fase (64705)

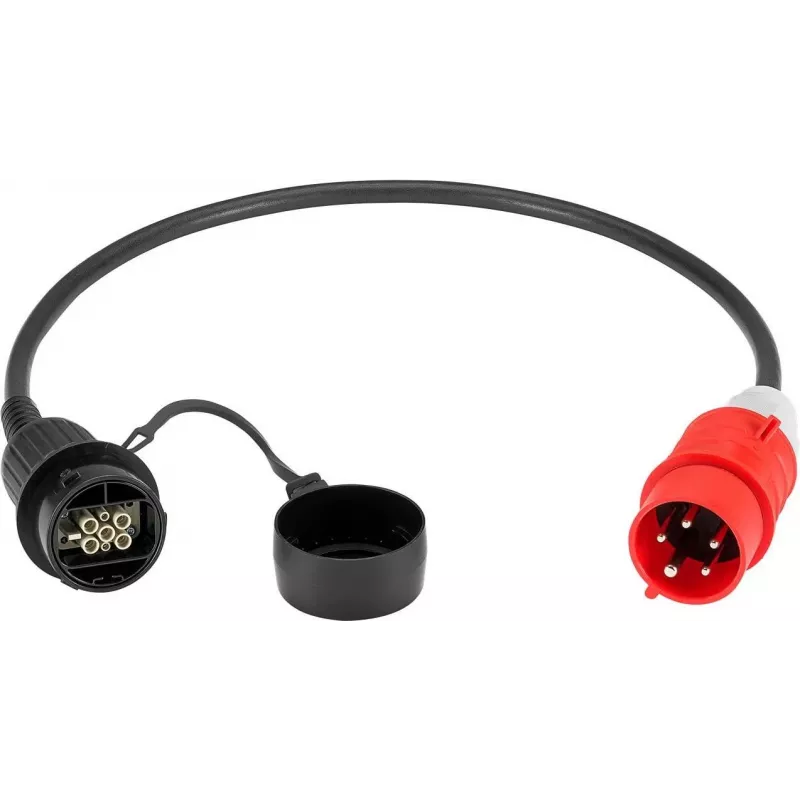

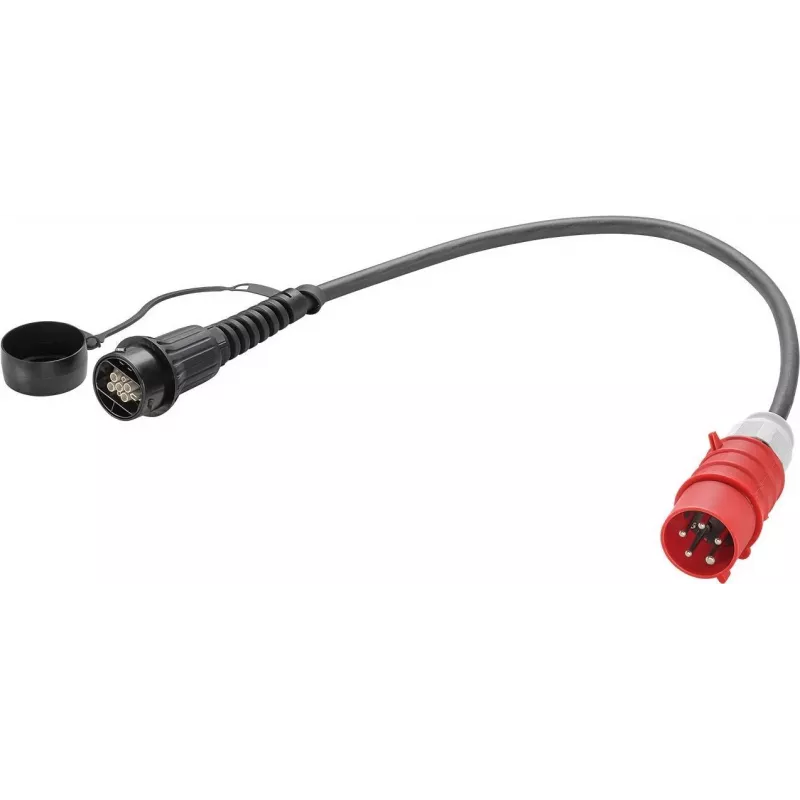

The LAPP MOBILITY CEE Charging Adapter Universal stands out by enabling electric vehicle charging from industrial CEE sockets, delivering up to 11 kW across three phases. Its compact 0.5 m cable with a red 5-pin CEE plug and Type 2 connector offers a robust solution for mobile charging scenarios.

Highlights

• 3-phase charging up to 11 kW from CEE 16A sockets
• Type 2 (Mennekes) output for EVs with Type 2 inlet
• Short 0.5 m cable for tidy connection
• Durable H07BQ-F cable with UV and oil resistance

In daily use

Connect the red CEE plug to a 400 V industrial socket and the Type 2 connector to your EV. The adapter supports up to 16 A per phase, delivering 11 kW. The cable withstands temperatures from -30°C to +50°C, making it suitable for outdoor use. Its IP44 rating when connected protects against splashing water.

Full specifications

• Max charging power: 11 kW
• Phases: 3-phase
• Input connector: CEE 16A, 5-pin (red)
• Output connector: Type 2 (Mennekes)
• Rated voltage: 400 V AC
• Rated current: 16 A
• Cable length: 0.5 m
• Protection class: IP44 (when connected)
• Operating temperature: -30°C to +50°C
• Cable cross-section: 5G2.5 mm²
• Cable type: H07BQ-F
• UV resistance: Yes
• Oil resistance: Yes
• Housing material: Thermoplastic

Final note

Complies with IEC 62196-1, IEC 62196-2, and IEC 61851-1 standards for safe EV charging.
