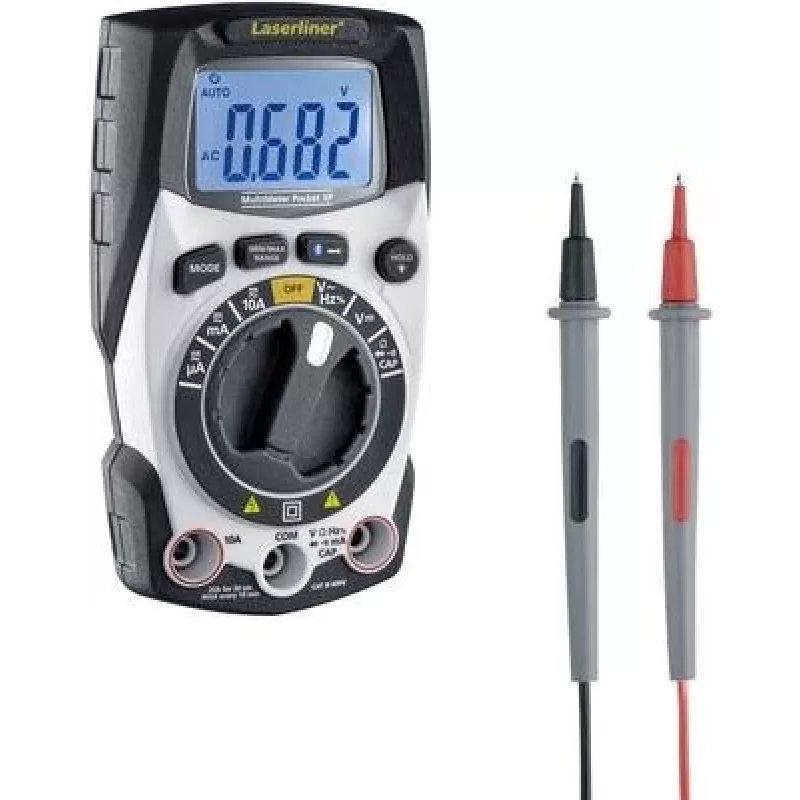

Laserliner MultiMeter Pocket XP digitale multimeter CAT III 600V CAT IV 600V 4000 counts 083.036A

The Laserliner MultiMeter Pocket XP stands out with its integrated test leads that fold neatly into the housing, making it a true pocket-sized multimeter without the usual dangling cables. Despite its compact form, it delivers full multimeter functionality with a 4000-count display and safety ratings up to CAT IV 600V, ideal for both professional electricians and demanding DIY users.

Highlights

• 4000-count LCD display with clear readouts for all measurements
• CAT III 600V and CAT IV 600V safety ratings for reliable use in building installations
• Integrated test leads with protective caps – always ready, never lost
• Non-contact voltage detection (NCV) for quick live-wire checks
• Auto-ranging plus manual range selection for precise measurements
• Data hold, automatic shut-off, and acoustic continuity for convenience

In daily use

The Pocket XP covers all standard electrical measurements: AC/DC voltage up to 600V, AC/DC current up to 400mA, resistance up to 40MΩ, capacitance up to 100µF, and frequency up to 10MHz. Diode and continuity tests are included. The integrated test leads unfold from the bottom of the device, and the included protective caps allow safe measurements in CAT IV environments. A built-in flashlight helps in dark distribution boxes. The device is powered by two AAA batteries and switches off automatically after a period of inactivity to save power.

Full specifications

• Display: 4000 counts, LCD
• Safety rating: CAT III 600V / CAT IV 600V
• DC voltage: 0.1 mV – 600 V
• AC voltage: 0.1 mV – 600 V
• DC current: 0.1 µA – 400 mA
• AC current: 0.1 µA – 400 mA
• Resistance: 0.1 Ω – 40 MΩ
• Capacitance: 0.001 nF – 100 µF
• Frequency: 0.001 Hz – 10 MHz
• Functions: Auto-ranging, data hold, NCV, diode test, continuity with acoustic signal
• Power supply: 2 x 1.5 V AAA batteries
• Integrated test leads: Yes
• Automatic shut-off: Yes

Final note

For anyone who needs a reliable multimeter that fits in a shirt pocket, the Laserliner MultiMeter Pocket XP offers an unmatched combination of safety, functionality, and portability.
