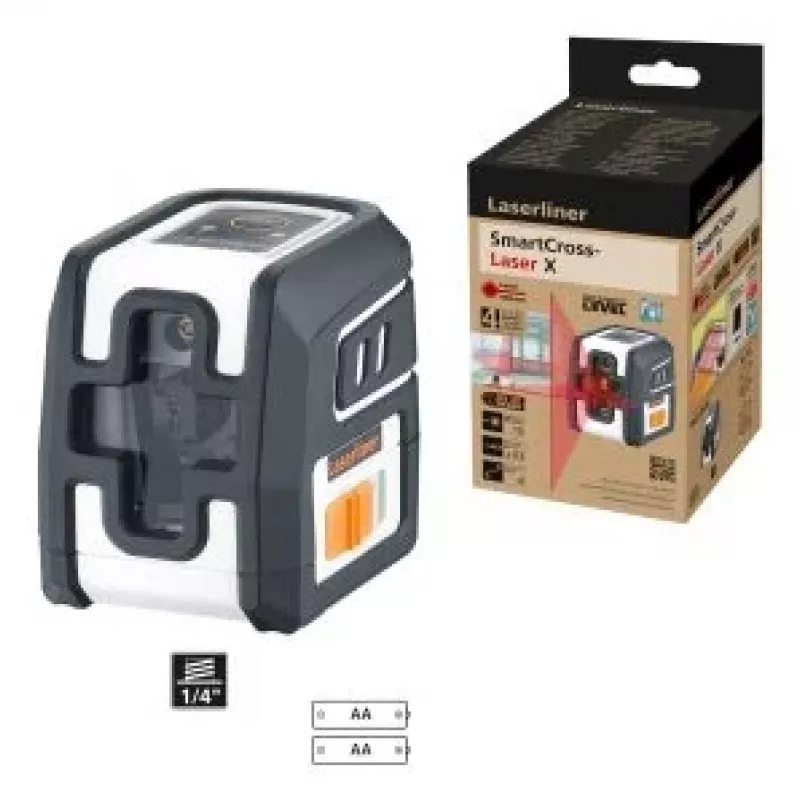

Laserliner SmartCross-Laser X kruislijnlaser zelfnivellerend bereik max. 10 m (036.735E)

The SmartCross-Laser X stands out with its automatic pendulum self-leveling within ±4°, delivering a precise red cross-line projection for fast alignment tasks. Unlike manual leveling tools, it locks the pendulum for safe transport and enables manual slope mode when needed.

Highlights

• Projects one horizontal and one vertical red laser line, crossing at 90°
• Self-levels automatically within ±4°; pendulum lock for transport and slope work
• Working range up to 10 m with ±0.5 mm/m accuracy

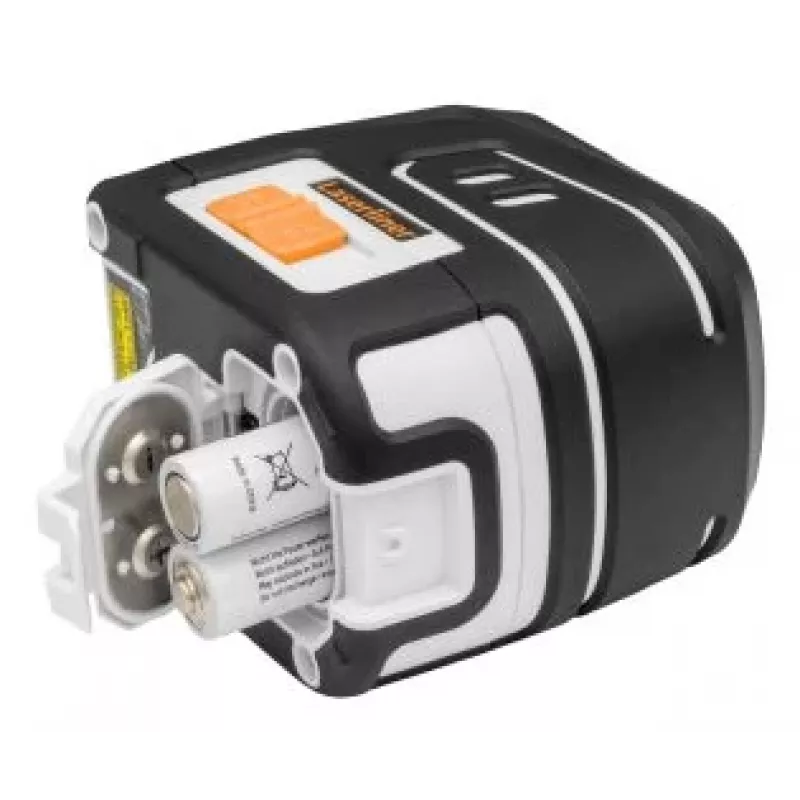

• Runs on 2 AA batteries for approximately 15 hours
• IP54 rated against dust and water splashes; 1/4" tripod thread

In daily use

The SmartCross-Laser X simplifies indoor alignment: mount it on a tripod or place it on a flat surface, switch it on, and the pendulum levels the lines within seconds. The red 650 nm laser is clearly visible up to 10 m, making it suitable for tiling, shelving, and partition wall layout. When you need a sloped line, lock the pendulum and tilt the unit manually. The compact housing withstands typical job-site conditions thanks to IP54 protection.

Full specifications

• Laser type: Cross-line laser
• Number of laser lines: 2 (1 horizontal, 1 vertical)
• Self-leveling range: ±4°
• Accuracy: ±0.5 mm/m
• Working range: 10 m
• Laser class: 2
• Laser wavelength: 650 nm
• Laser colour: Red
• Power supply: 2 x 1.5V AA batteries
• Operating time: Approx. 15 hours
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 70°C
• Protection class: IP54

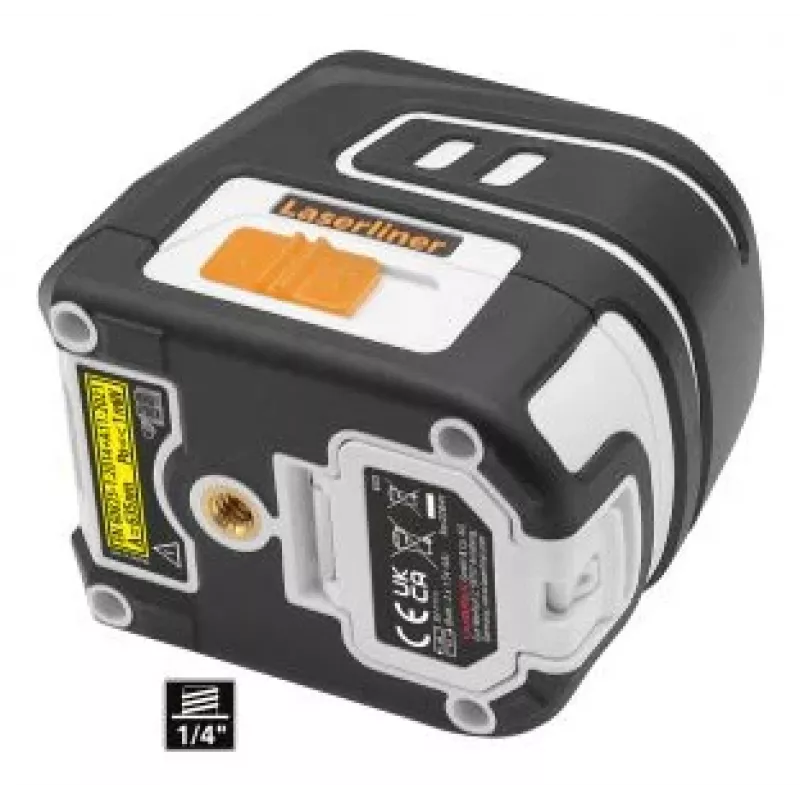

• Tripod thread: 1/4"
• Leveling function: Automatic (pendulum)
• Pendulum lock: Yes (for transport and manual slope mode)

Final note

With its automatic leveling, pendulum lock, and IP54 rating, the SmartCross-Laser X is a dependable tool for precise indoor alignment.
