LC-koppelaar multimode Digitus DN-96009-1

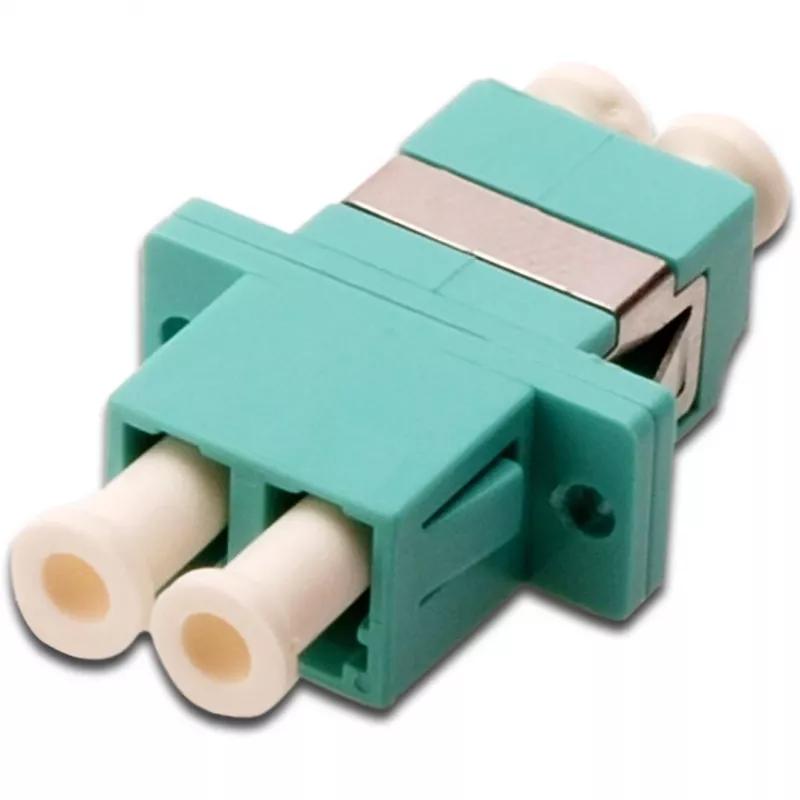

The DIGITUS LC Coupler Multimode DN-96009-1 is a ceramic-ferrule LC/LC coupler designed for multimode fiber applications. Supplied in blue, this compact coupler connects two LC fiber optic cables to extend or link multimode fiber runs and is intended for installation in splice boxes and front panels.

Advantages

The high-quality ceramic ferrule ensures stable alignment and low insertion loss. Each coupler undergoes quality control and precise processing to maintain consistent link performance. A dust protection cup is included to protect ferrules from contamination, and the package contains suitable mounting material for immediate fixation to front panels. The coupler is compatible with DIGITUS pigtails, providing optimal connector interaction.

Suitable for

• Connecting two LC multimode fiber cables
• Installation in splice boxes and patch panels
• Extending or repairing multimode fiber links
• Use with DIGITUS multimode pigtails and assemblies

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-96009-1
• Connector type: LC/LC
• Mode: Multimode
• Ferrule material: Ceramic
• Colour: Blue
• Package quantity: 1 coupler
• EAN: 4016032335917
• Country of manufacture: China

How to use

Position the coupler in the splice box or front panel opening and secure it using the supplied mounting material. Remove dust caps from the coupler and from the cable connectors, then insert the LC connectors into each side of the coupler until they click. Verify the connection and test the link for insertion loss and continuity using appropriate fiber test equipment.

Recommendations

Store and install the coupler in a clean environment and keep dust caps in place until final connection. Use compatible multimode LC pigtails and follow standard fiber handling practices to minimise attenuation and ensure long-term performance.
