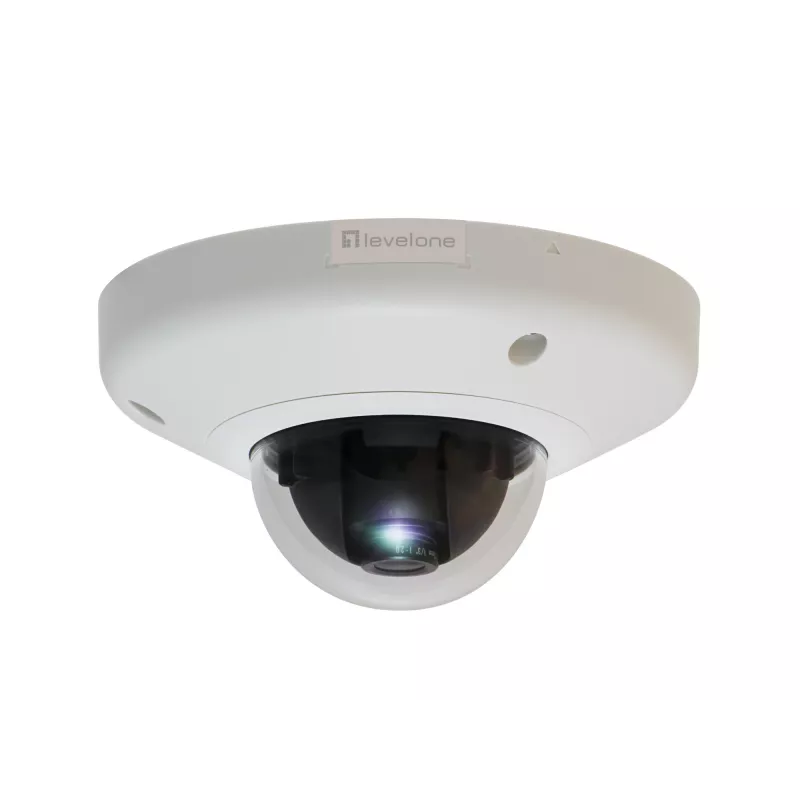

LevelOne HUBBLE fixed dome IP-netwerkcamera, 3 megapixel, 802.3af PoE, vandalismebestendig

The LevelOne HUBBLE Fixed Dome 3-Megapixel IP security camera (model FCS-3054, EAN 4015867189689) delivers 3-Megapixel resolution for clear surveillance video. Designed for wired Ethernet deployment with Power over Ethernet (PoE) support, the camera provides straightforward installation and centralized power over a single cable. The compact dome housing is available in black or white and is suitable for ceiling or wall mounting. With a minimum illumination of 0.1 lx and an 83.3° horizontal viewing angle, the device is specified for low-light monitoring and general area coverage. The unit carries CE and FCC certification and an IK08 vandalproof rating for improved durability in demanding environments.

Advantages

The camera produces 3-Megapixel video at up to 30 fps, enabling detailed image capture for identification and verification tasks. PoE capability reduces cabling complexity by combining data and power on a single Ethernet connection. The wired connectivity ensures consistent network performance without relying on Wi‑Fi. The dome form factor and IK08 rating offer resistance to tampering and impact, while the available black and white finishes assist in visual integration with different interiors.

Suitable for

• Indoor ceiling surveillance in retail, office, or public facilities
• Wall-mounted monitoring of corridors, entrances, and stairwells
• Low-light observation where minimum illumination is limited (down to 0.1 lx)
• Applications requiring vandal-resistant housings

Key specifications

• Resolution: 3 Megapixel
• Frame rate: 30 fps
• Connectivity: Wired Ethernet (PoE supported)
• Power: Power over Ethernet (PoE)
• Minimum illumination: 0.1 lx
• Horizontal viewing angle: 83.3°
• Mounting type: Ceiling or wall
• Certifications: CE, FCC
• Vandal rating: IK08
• Product colour: Black, White
• Weight: 0.201 kg

How to use

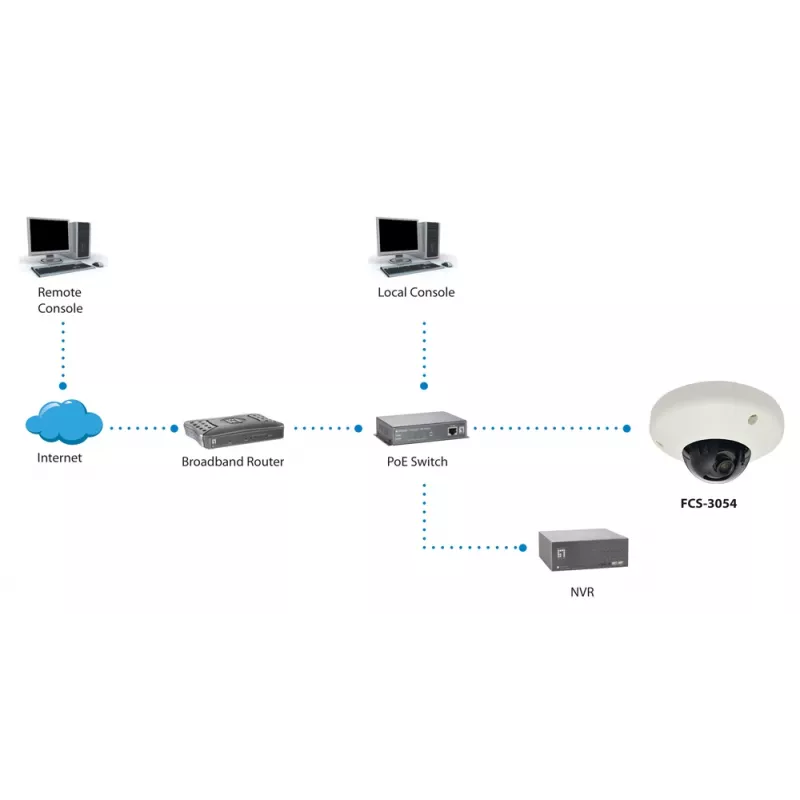

Mount the dome on a ceiling or wall according to the installation instructions and local building codes. Connect the camera to your network switch or PoE injector using a standard Ethernet cable to provide both data and power. Configure network settings and any required NVR or video management software to integrate the camera into your surveillance system. Adjust the dome orientation and lens position during setup to frame the desired coverage area, then secure the housing to protect internal components.

Recommendations

For reliable continuous operation, use a PoE-enabled switch that provides adequate power budget for connected devices and follow LevelOne firmware update guidance to maintain security and compatibility. Place the camera at a height and angle that balances coverage and identification needs, and consider additional lighting if detailed color recognition is required under very low light conditions.
