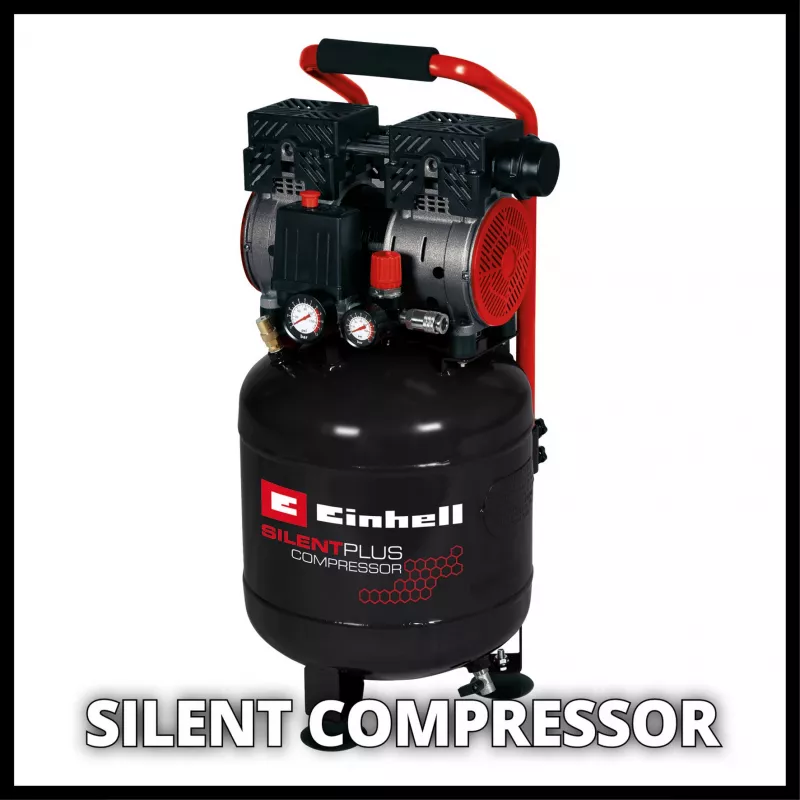

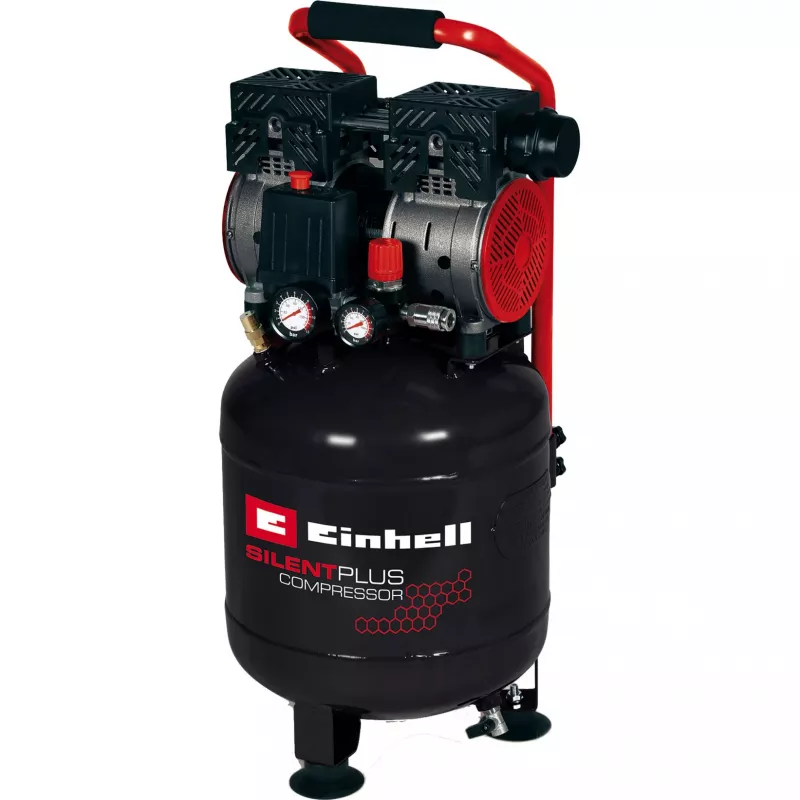

Luchtcompressor Einhell TE-AC 24 Silent 750 W 135 l/min

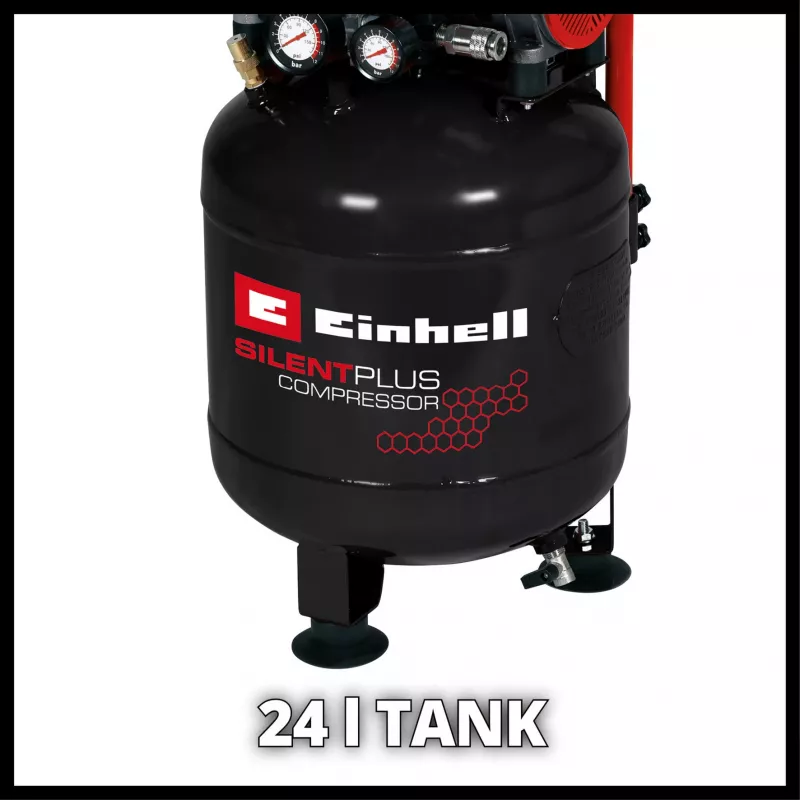

The Einhell TE-AC 24 Silent is a compact 24-litre air compressor with a 750 W oil-free motor and a maximum intake capacity of 135 l/min. Designed for quieter operation (65 dB LpA) and low maintenance, it combines a service-free pump, vibration-absorbing feet and a drain plug for easy upkeep. The unit includes a pressure reducer, a pressure gauge, a quick-release coupling, a second manometer for unregulated pressure and a safety valve; the tank comes with a ten-year rust-through warranty.

Advantages

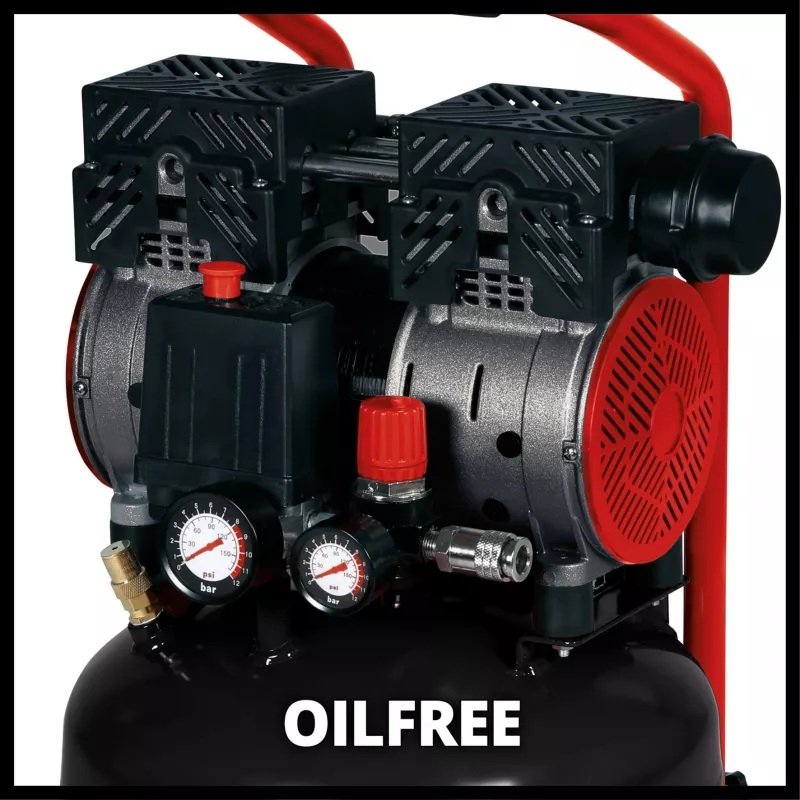

This compressor operates with reduced noise levels while delivering comparable power to standard models. The oil-free, maintenance-light motor and included drain plug simplify servicing. Compact dimensions and low weight make storage and transport straightforward, while vibration-absorbing legs improve stability during operation. Built-in pressure regulation and fittings support a range of pneumatic tasks and ensure controlled working pressure up to 8 bar.

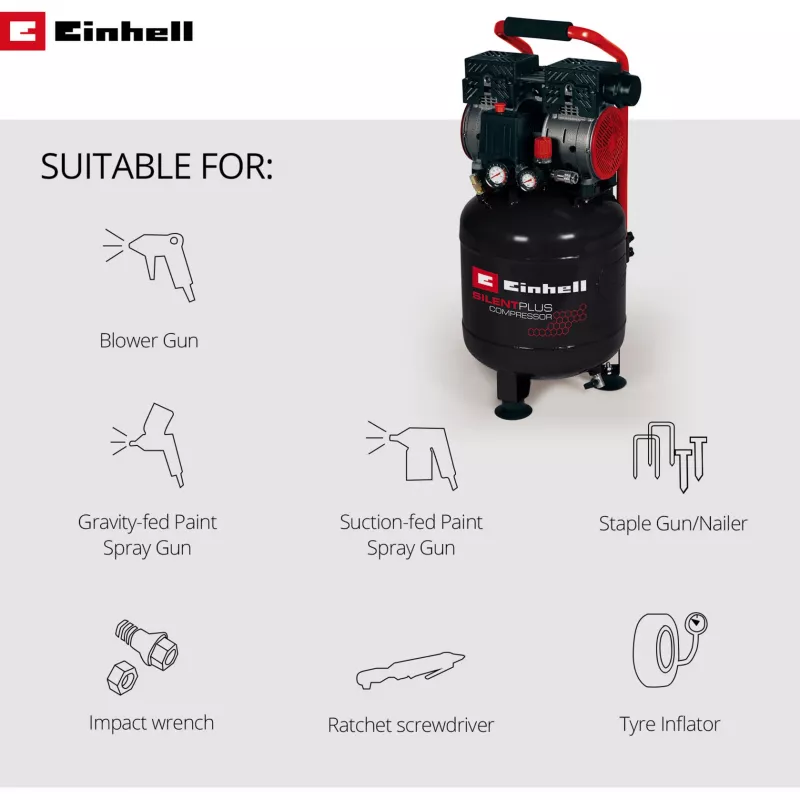

Suitable for

• Spray painting and lacquer application with appropriate spray tools
• Applying preservative oil to wood, locally or over large surfaces
• Blow-cleaning, sand-blasting and workshop cleaning tasks
• Inflating car, motorcycle and bicycle tyres, balls and air mattresses

Key specifications

• Power: 750 W
• Maximum intake capacity: 135 l/min
• Tank volume: 24 litres
• Noise level: 65 dB (LpA)
• Max. regulated pressure: up to 8 bar
• Motor speed: 1450 RPM
• Voltage: 220–240 V AC
• Weight: 22.1 kg
• Includes: pressure reducer, pressure gauge, quick-release coupling, second manometer, safety valve

How to use

Place the compressor on a stable, level surface and attach the desired pneumatic tool or hose to the quick-release coupling. Switch on the unit and allow the tank to fill; monitor the pressure gauge and adjust the pressure reducer to the required working pressure (max. 8 bar). For inflation tasks use the appropriate nozzle or adapter. After use, switch off the compressor and release residual pressure via the fittings. Periodically drain condensed water from the tank using the drain plug to maintain performance.

Recommendations

Use the Einhell TE-AC 24 Silent indoors or in covered workspaces to take advantage of its low noise output. Match tools and nozzles to the compressor's pressure and flow specifications, and perform regular draining of the tank to prevent corrosion despite the ten-year rust-through warranty.
