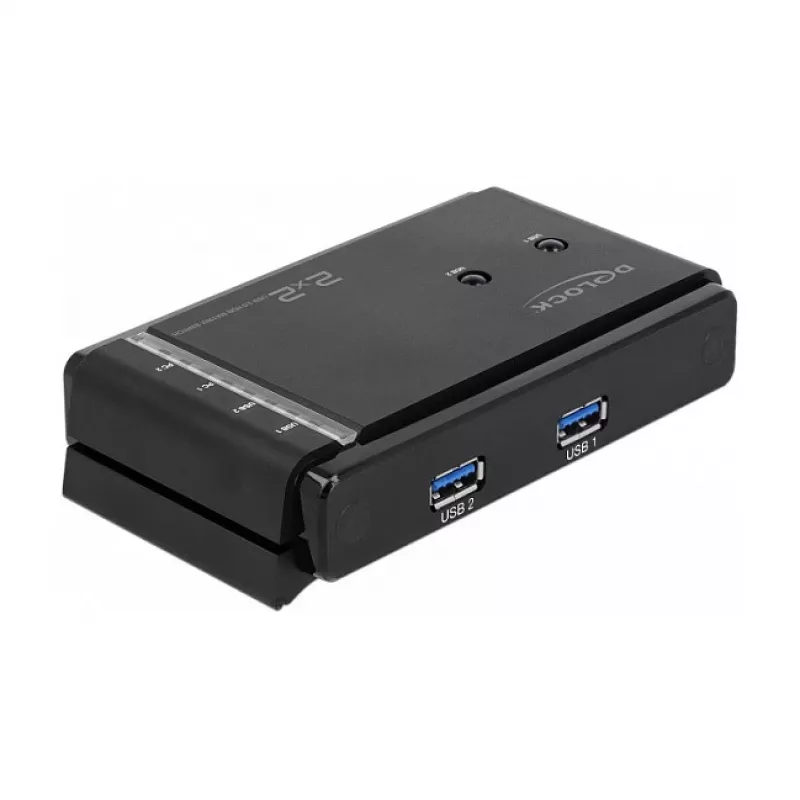

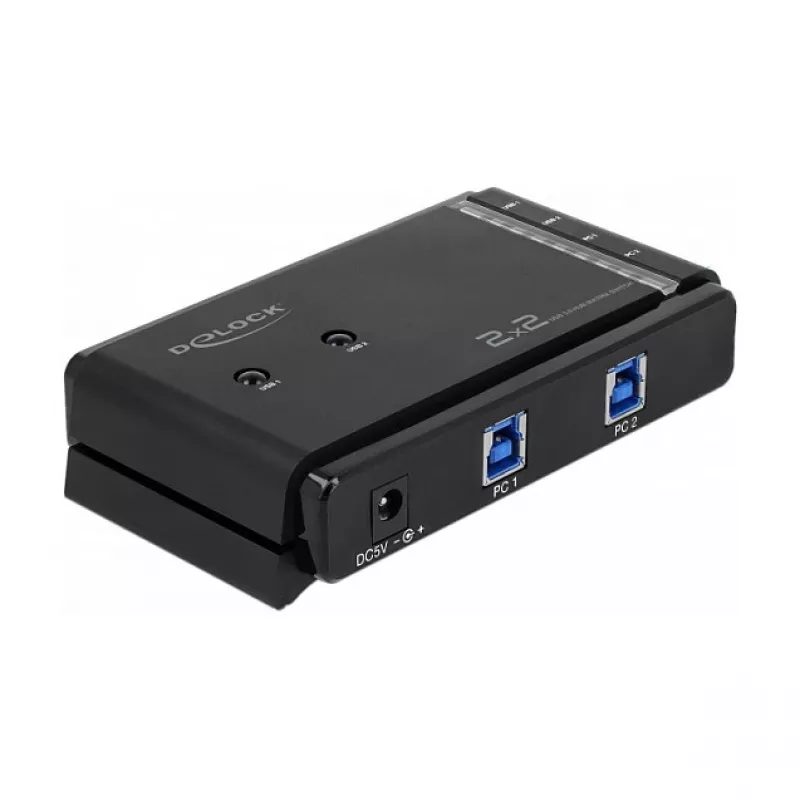

Matrixswitch DeLOCK 87736

The DeLOCK 87736 Matrix switcher is a compact metal USB switch that allows two computers to access two USB devices in any combination. The device supports USB data transfer rates up to 5 Gbit/s and provides USB Type-A and USB Type-B connectors. It is powered by an AC input (100–240 V, 50–60 Hz, 0.5 A) and has compact dimensions (74 × 130 × 30 mm) for convenient placement in workstations or small server areas.

Advantages

The matrix switcher is built with a durable metal housing for stability and heat dissipation. It supports high-speed USB data transfer up to 5 Gbit/s and includes standard USB Type-A and Type-B ports for broad compatibility. Its small footprint and universal AC input make it suitable for a variety of environments and power conditions. Physical button switching enables immediate selection between connected computers without software installation.

Suitable for

• Sharing a single USB printer between two computers
• Switching external USB storage or scanners between two hosts
• Small offices, home offices, and workstation setups requiring flexible device access

Key specifications

• Model: DeLOCK 87736
• Data transfer rate: up to 5 Gbit/s
• Connectors: USB Type-A, USB Type-B
• Power input: AC 100–240 V, 50–60 Hz, 0.5 A
• Housing: metal
• Dimensions (W × D × H): 74 × 130 × 30 mm
• Brand: DELOCK
• EAN: 4043619877362

How to use

Connect up to two USB devices to the device-side ports and connect the two computers to the host-side USB Type-B/Type-A ports as required. Plug in the AC power supply and use the front-panel button to select which computer is connected to each USB device. Switching can be performed at any time; no additional drivers are required for basic USB device switching.

Recommendations

Place the matrix switcher on a stable, ventilated surface and avoid blocking the metal housing to ensure proper heat dissipation. Use quality USB cables and ensure connected peripherals are compatible with USB data rates up to 5 Gbit/s. For devices requiring continuous power or special drivers, verify compatibility before switching hosts.
