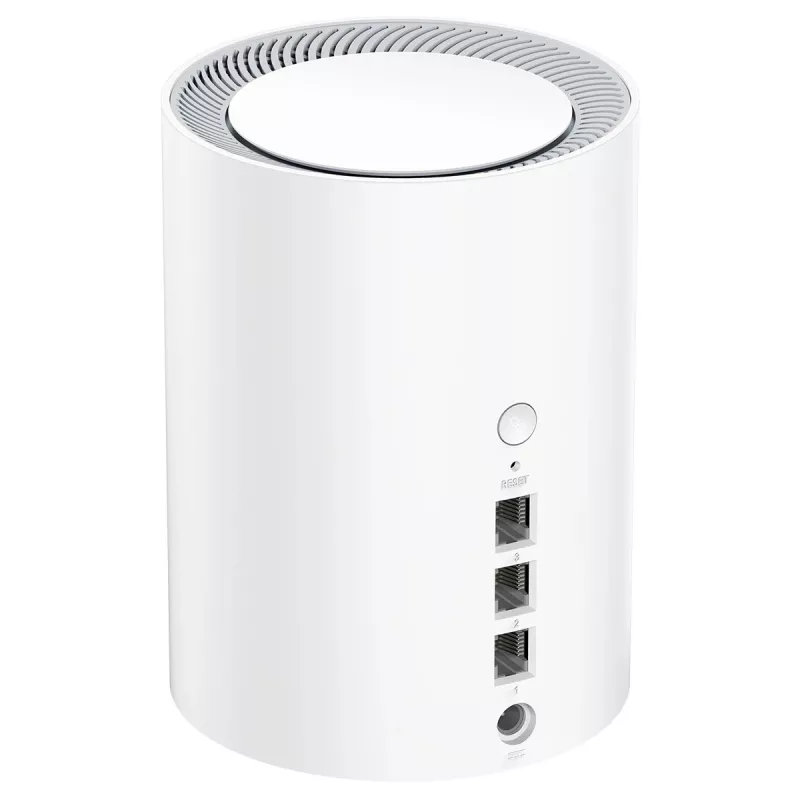

Mesh-systeem Cudy M3600 dualband Wi‑Fi 7 (802.11be), 2882 Mbit/s, 3x LAN, 4 interne antennes, wit

The Cudy M3600 Dual-band Wi‑Fi 7 mesh system provides high-speed wireless connectivity for large homes and small offices, supporting Wi‑Fi 7 (802.11be) with a maximum aggregated throughput of 2882 Mbit/s. The unit is white, equipped with four internal antennas and three Gigabit Ethernet ports, and includes an Ethernet WAN interface for direct connection to Gigabit Internet service. It is powered by a 2 GHz processor with 512 MB RAM and 128 MB flash to manage multiple devices and mesh performance.

Advantages

This dual-band router offers combined high throughput on 2.4 GHz and 5 GHz bands, internal antenna design for streamlined appearance, and a mesh-capable architecture to extend coverage across larger properties. Three Gigabit LAN ports and an Ethernet WAN allow wired Gigabit connections for compatible Internet plans and wired devices. The device supports the Wi‑Fi 7 standard for improved spectral efficiency and lower latency compared with earlier generations.

Suitable for

• Large homes requiring stable whole‑house Wi‑Fi coverage
• Small offices with multiple wireless clients
• Users with Gigabit Internet subscriptions who need wired connections

Key specifications

• Wi‑Fi standard: Wi‑Fi 7 (802.11be)
• Bands: Dual‑band 2.4 GHz / 5 GHz
• Max WLAN data rate: 2882 Mbit/s
• Processor: 2 GHz
• Memory: 512 MB RAM, 128 MB flash
• Antennas: Internal, 4 units
• Ethernet ports: 3 × Gigabit LAN (RJ‑45), Ethernet WAN
• Color: White

How to use

Connect the Ethernet WAN port to your modem or ISP gateway and power the unit. Use the Cudy mobile app or web interface to complete initial setup, create SSIDs for 2.4 GHz and 5 GHz bands or enable automatic band steering, and configure security settings such as WPA3 or WPA2. Place additional mesh nodes (if used) in open areas between the main unit and coverage gaps to extend the network. Attach wired devices to any of the three Gigabit LAN ports when a stable wired connection is required.

Recommendations

Place the router centrally and avoid metal obstructions or thick walls for best mesh performance. For Gigabit Internet, connect the ISP modem directly to the Ethernet WAN and use CAT5e/CAT6 Ethernet cables for wired devices. Keep firmware updated via the web interface or app to maintain security and performance.
