METZ CONNECT 142MEA10050 M12 bus naar open einde sensor-/actuatorkabel, 5 m, zwart, PUR, A-gecodeerd, 4-polig

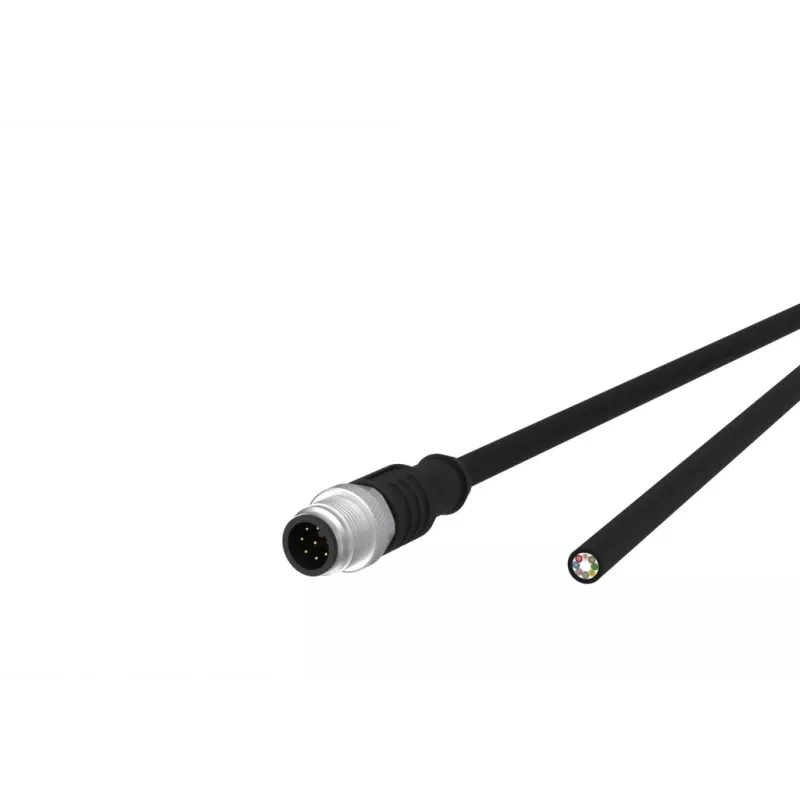

The METZ CONNECT 142MEA10050 is a high-quality sensor/actuator cable designed for industrial automation applications. It features an M12 female connector on one end and an open end on the other, providing a reliable connection for sensors and actuators in harsh environments. The cable is 5 meters long, with a black polyurethane (PUR) jacket that offers excellent resistance to oil, abrasion, microbes, and hydrolysis. It is halogen-free and rated IP67, making it suitable for use in demanding conditions.

Advantages

This cable ensures secure and durable connections in industrial settings. The PUR jacket provides superior protection against mechanical stress and environmental factors, while the IP67 rating guarantees protection against dust and temporary immersion in water. The A-coded M12 connector ensures correct orientation and reliable data transmission.

Suitable for

• Industrial automation systems
• Sensor and actuator connections
• Factory floor machinery
• Process control equipment

Key specifications

• Connector 1: M12 female, straight, A-coded, 4-pin
• Connector 2: Open end
• Cable length: 5 m
• Cable jacket material: Polyurethane (PUR)
• Cable color: Black
• Conductor cross-section: 4 x 0.25 mm² (AWG 24)
• Rated voltage: 250 V
• Rated current: 4 A
• IP rating: IP67
• Operating temperature: -25 °C to +80 °C
• Halogen-free: Yes
• Shielding: Unshielded
• Cable diameter: Approx. 4.7 mm

Recommendations

For optimal performance, ensure that the M12 connector is properly tightened to maintain the IP67 seal. This cable is ideal for use with sensors and actuators that require a robust and flexible connection in industrial environments.
