METZ CONNECT M12 Industrial Ethernet-patchkabel, D-gecodeerd, 4-polig, 5,0 m, afgeschermd, groen

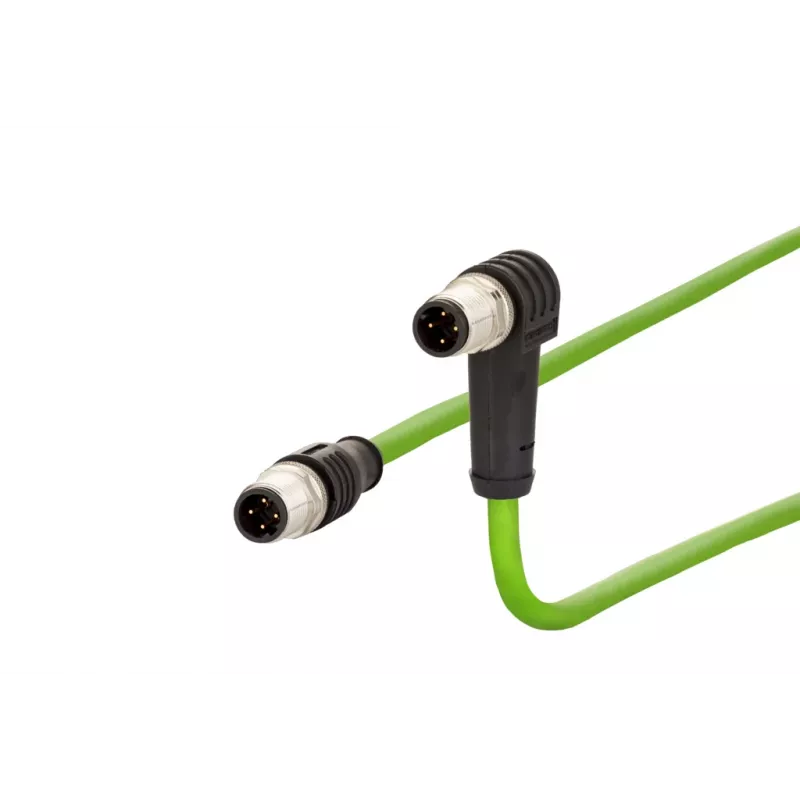

The METZ CONNECT M12 Industrial Ethernet Patch Cable is a high-performance connection solution designed for demanding industrial environments. With M12 male connectors on both ends—one angled and one straight—this D-coded, 4-pin cable ensures reliable data transmission for PROFINET, EtherCAT, and other Industrial Ethernet applications. The shielded design and robust PUR jacket provide excellent protection against electromagnetic interference and mechanical stress, making it ideal for factory automation, machine building, and process control.

Advantages

This cable offers exceptional durability and signal integrity. The angled connector allows for flexible routing in tight spaces, while the straight connector ensures a secure, straightforward connection. The IP67 protection rating (when mated) guarantees resistance to dust and water ingress, and the wide operating temperature range (-25 °C to +85 °C) ensures reliable performance in harsh conditions. The green jacket color aids in easy identification and organization within complex cabling systems.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT)
• Factory automation and machine building
• Process control and sensor/actuator connections
• Robotics and motion control systems

Key specifications

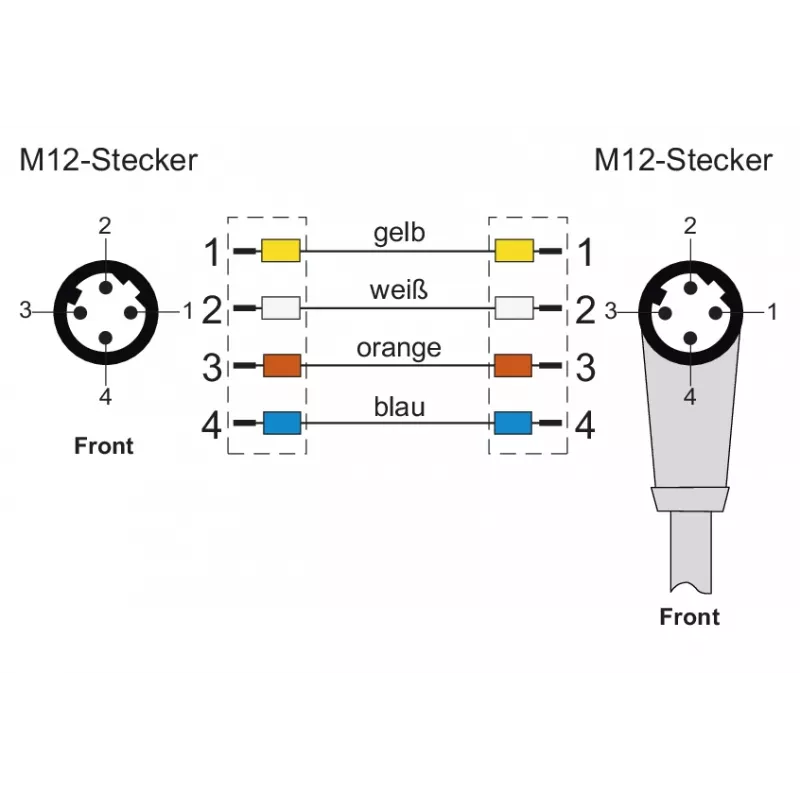

• Connector Type: M12 male, D-coded, 4-pin

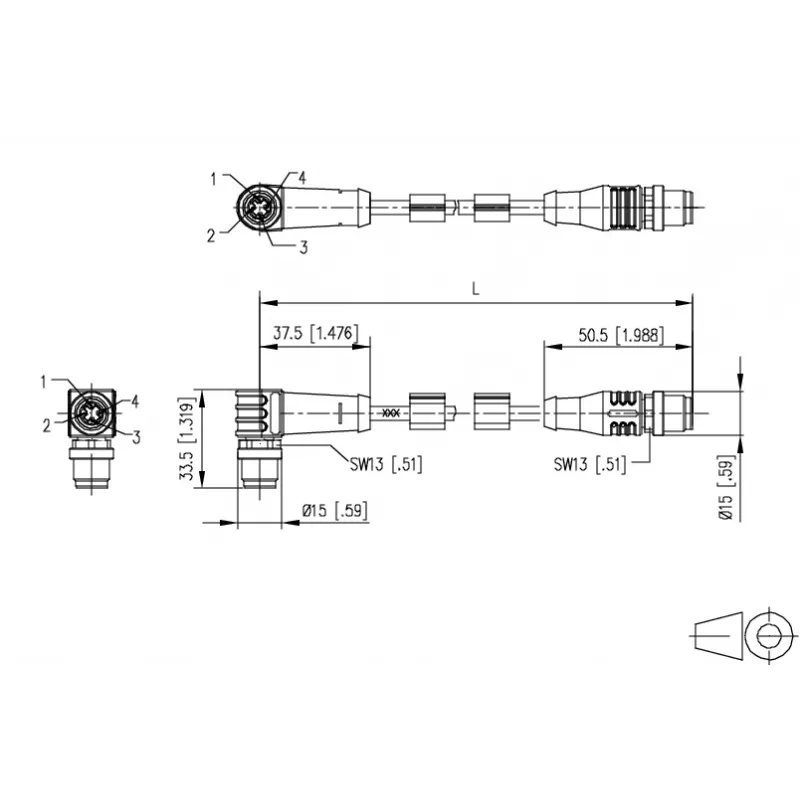

• Connector A: Angled (male)
• Connector B: Straight (male)
• Cable Length: 5.0 m

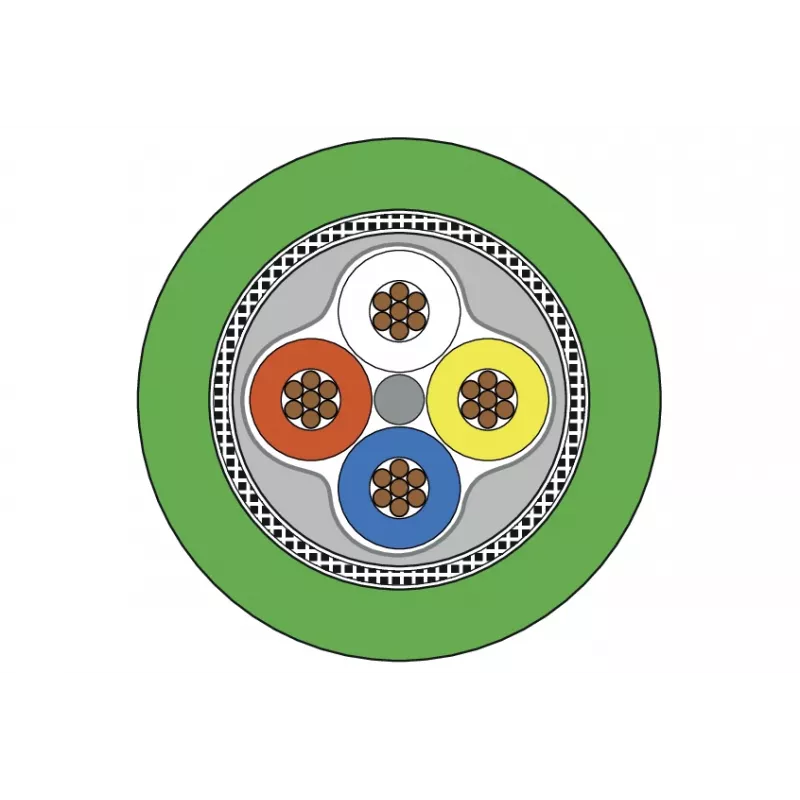

• Shielding: Shielded
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Green
• Conductor Material: Copper
• Rated Voltage: 250 V
• Rated Current: 4 A
• IP Protection Class (Mated): IP67
• Operating Temperature: -25 °C to +85 °C
• Cable Diameter: Approx. 6.5 mm
• Standard Compliance: IEC 61076-2-101

Recommendations

For optimal performance, ensure that the connectors are properly mated and tightened to achieve the specified IP67 protection. This cable is an excellent choice for new installations or as a replacement in existing PROFINET or EtherCAT networks.
