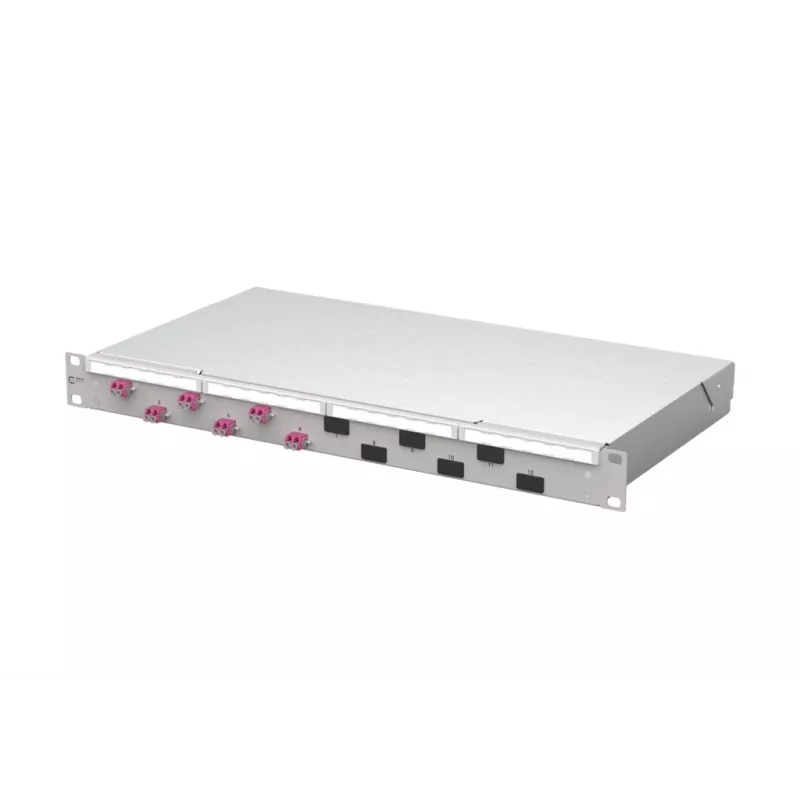

METZ CONNECT VIK 6xLC-D OM4 glasvezel-patchpaneelmodule 1504507506-F

Data centers and enterprise networks often struggle with fiber optic cabling that is difficult to manage, prone to signal loss, and incompatible with high-speed multimode applications. The METZ CONNECT VIK 6xLC-D OM4 module solves this by providing a pre-assembled, high-density fiber optic termination point designed for the VIK system.

Who is it for

Network administrators, data center technicians, and system integrators who need a reliable, low-loss fiber optic connection for OM4 multimode networks, including LAN, SAN, and FTTx deployments.

Main features

• 6 LC-Duplex ports, supporting 12 fibers for high-density patching
• OM4 multimode fiber type, optimized for 850 nm and 1300 nm wavelengths
• Low insertion loss of less than 0.2 dB and return loss greater than 30 dB
• Zirconia ceramic adapter sleeves for precise alignment and durability
• Aqua-colored adapters for easy identification of OM4 multimode
• Sheet steel housing with powder coating for robust protection
• Pre-assembled with adapters and dust caps for quick installation
• Compatible with VIK-System housings and frames

Specifications

• Product Type: Fiber Optic Module
• Module Series: VIK-System
• Fiber Optic Type: Multimode OM4
• Connector Type (Front): LC-Duplex
• Number of Ports: 6x LC-Duplex
• Number of Fibers: 12
• Adapter Color: Aqua
• Adapter Material: Zirconia ceramic sleeve
• Housing Material: Sheet steel, powder-coated
• Mounting Type: For VIK-System housings/frames
• Insertion Loss (typical): < 0.2 dB
• Return Loss (typical): > 30 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: IEC 61753-1, TIA/EIA-568-C.3
• Application: Data center, LAN, SAN, FTTx
• Pre-assembled: Yes, with adapters and dust caps
• Wavelengths Supported: 850 nm / 1300 nm

Tips

When installing, ensure the module is securely mounted in the VIK frame and that dust caps remain on unused ports to prevent contamination. For optimal performance, use OM4-rated patch cables and clean connectors before mating.
