METZ mecatech VIK 12xLC-D OS2 glasvezel-patchpaneel 1504507412-F

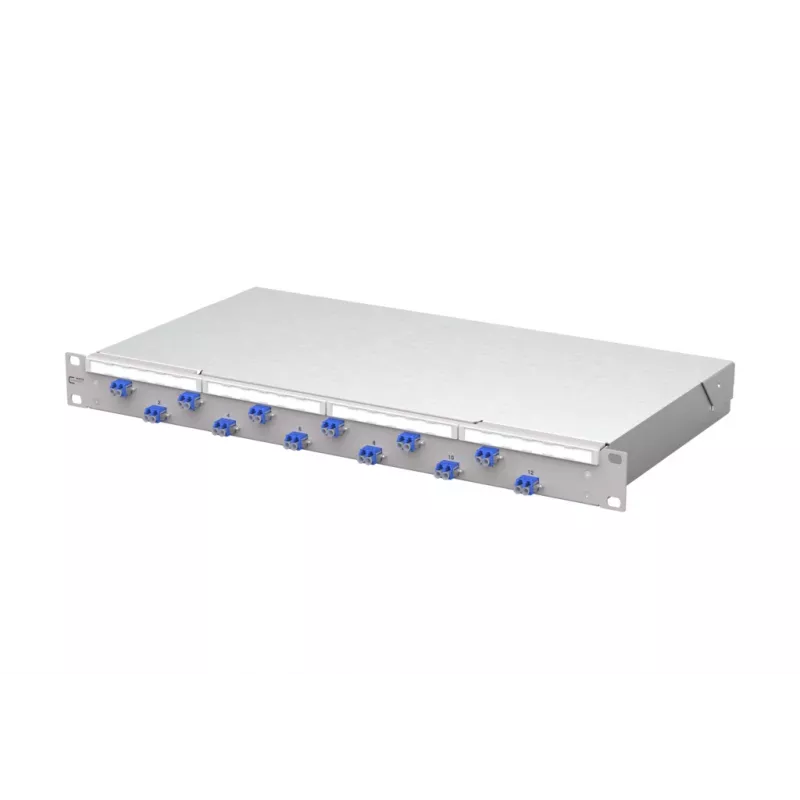

This METZ mecatech VIK patch panel offers a compact 1U solution for terminating up to 24 single-mode fibres in a 19-inch rack. Its 12 LC-Duplex ports with zirconia ceramic sleeves deliver low insertion loss and high return loss, making it suitable for data centres and enterprise networks.

Highlights

• 12x LC-Duplex ports for 24 single-mode OS2 fibres
• 19-inch rack mount, 1U height, light grey steel housing
• Integrated splice tray for organised fibre management
• Zirconia ceramic adapter sleeves ensure reliable connections
• Rear cable entry for clean installation

In daily use

The panel's 1U design saves rack space while providing high port density. The integrated splice tray simplifies fibre splicing and routing, and the rear cable entry keeps cabling tidy. With typical insertion loss below 0.2 dB and return loss above 50 dB, it maintains signal integrity in demanding environments.

Full specifications

• Product Type: Fibre Optic Patch Panel
• Connector Type (Front): LC-Duplex
• Number of Ports: 12x LC-Duplex
• Number of Fibres Supported: 24
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Housing Series: mecatech VIK
• Mounting Type: 19-inch Rack Mount
• Rack Units: 1U
• Housing Material: Steel
• Housing Colour: Light Grey (RAL 7035)
• Adapter Sleeve Material: Zirconia Ceramic
• Typical Insertion Loss: < 0.2 dB
• Typical Return Loss: > 50 dB
• Cable Entry: Rear
• Splice Tray: Integrated
• Operating Temperature: -10°C to +60°C
• Dimensions (W x H): 482.6 mm (19") x 44.45 mm (1U)

Final note

A reliable and space-efficient patch panel for high-density single-mode fibre termination in professional network installations.
