Microchip Adaptec interne SAS-kabel - 1x8 Slim SAS (SFF-8654) naar 8x SATA - 0,8 m

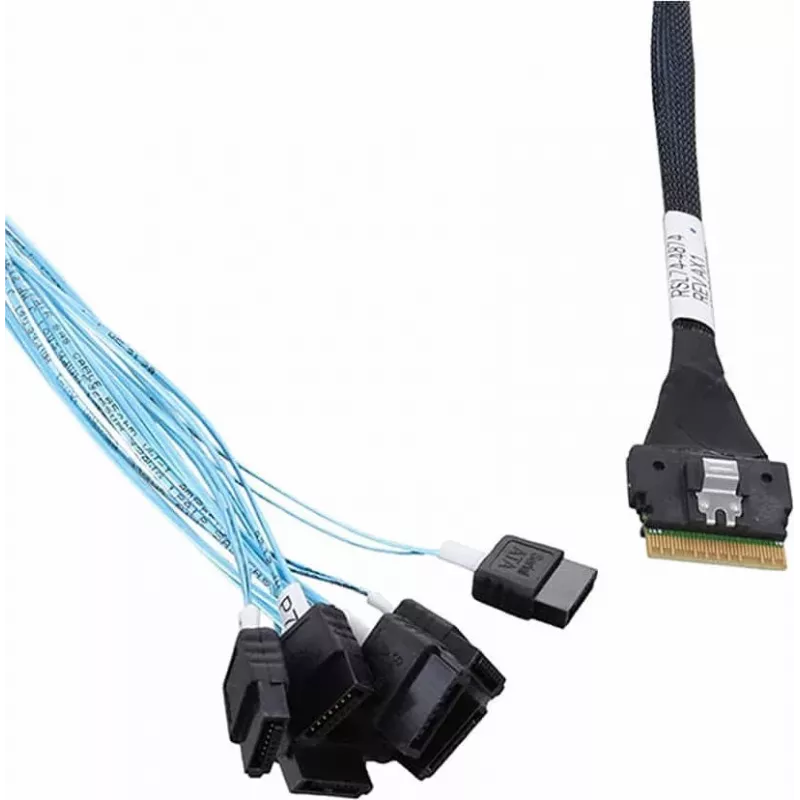

The Microchip Adaptec Internal SAS Cable (model 2305800-R) is a high-performance breakout cable designed to connect a RAID controller with SlimSAS (SFF-8654) interface to up to eight SATA drives. With a length of 0.8 meters, it provides a clean and efficient internal cabling solution for server and storage systems.

Advantages

This cable supports data transfer rates up to 12 Gb/s (SAS-3), ensuring fast and reliable communication between the controller and drives. The SlimSAS connector (SFF-8654) offers a compact form factor, saving space and improving airflow inside the chassis. The breakout design allows a single host port to connect to multiple SATA drives, simplifying cable management.

Suitable for

• Adaptec RAID controllers with SFF-8654 ports
• Internal connection of SAS/SATA drives in servers and storage arrays
• Systems requiring high-density cabling with minimal clutter

Key specifications

• Cable Type: Internal SAS Breakout Cable
• Connector 1: 1x SlimSAS (SFF-8654) x8
• Connector 2: 8x SATA (29-pin SFF-8482)
• Length: 0.8 m (80 cm)
• Data Rate: Up to 12 Gb/s (SAS-3)
• Colour: Black
• Material: Copper
• Shielding: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with compatible Adaptec RAID controllers and ensure proper cable routing to avoid signal interference. This cable is ideal for building or upgrading internal storage subsystems.
