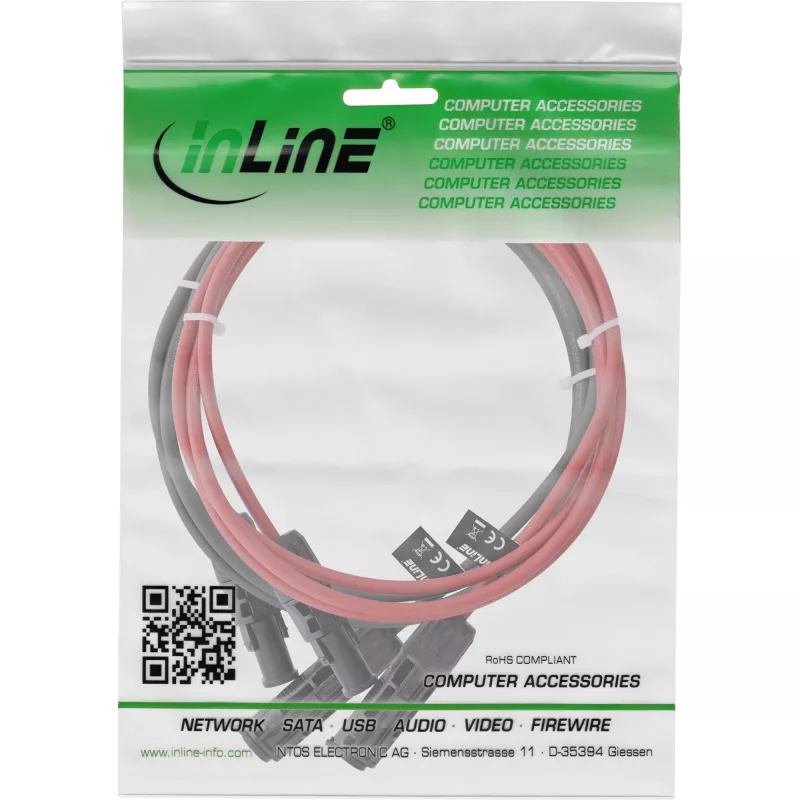

Middenspanningskabel InLine 95403 rood zwart 1500V 3m

The InLine 95403 medium voltage solar cable, 4 mm² with solar plugs supplied as a pair (red/black), is designed for wiring photovoltaic systems and for reliable power transmission up to 1500 V. Its robust construction and 0.7 mm insulation thickness provide durability and consistent electrical performance for long-term use. Note on wire cross-section: the required conductor size depends on current and cable length; consult a solar technician if unsure.

Advantages

The cable combines a 4 mm² conductor with solar-compatible plugs in red and black for clear polarity identification. Durable insulation and a construction suitable for PV installations deliver stable transmission and mechanical resistance. With a 3 m length and a 5.5 mm diameter, the cable is ready for common rooftop and ground-mounted photovoltaic connections and supports voltages up to 1500 V.

Suitable for

• Interconnecting solar panels in string configurations
• Connecting panels to junction boxes or combiner boxes
• Short runs between modules and inverters or microinverters
• PV installations requiring clear red/black polarity marking

Key specifications

• Conductor cross-section: 4 mm²
• Maximum operating voltage: 1500 V
• Insulation thickness: 0.7 mm
• Length: 3 m
• Diameter: 5.5 mm
• Colors: red and black (pair)
• Brand / MPN / EAN: InLine / 95403 / 4043718334612

How to use

Install the cable following local electrical codes and the PV system design. Use the red and black plugs to maintain correct polarity when connecting panels, junction boxes, combiner boxes, or inverters. Ensure all connections are clean, fully engaged and tightened to the manufacturer's torque specifications. Route and secure the cable to avoid sharp bends, chafing and exposure to heat sources.

Recommendations

Choose the appropriate conductor cross-section for your installation based on current load and cable run length; when in doubt, consult a qualified solar technician to determine correct sizing and to ensure compliance with safety regulations.
