Neomounts NM-HUB2LIFTSILVER tv-wagen tot 50 inch - gemotoriseerd

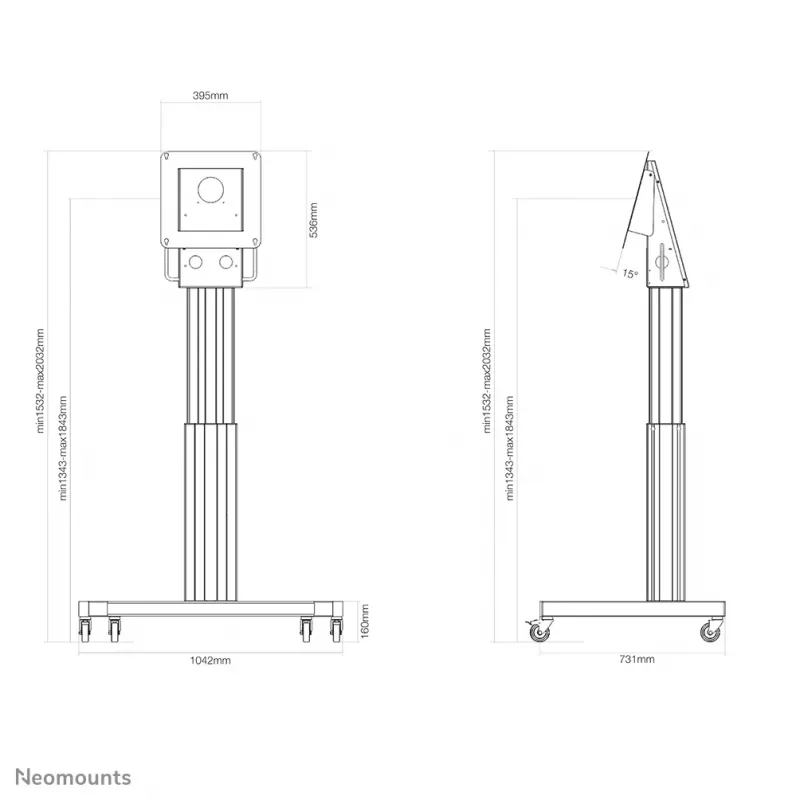

The Neomounts NM-HUB2LIFTSILVER motorised height adjustable floor stand is designed for the Microsoft Surface Hub 2S(X) screen. It provides motorised vertical movement with a 50 cm range controlled by a wired remote, and a custom head with 0° or 15° tilt to reduce glare and offer multiple viewing angles. The trolley supports screens up to 50" with a VESA pattern of 350 x 350 mm, has a variable floor-to-centre height of 1340–1840 mm and a maximum load capacity of 150 kg.

Advantages

The stand offers stepless electronic height adjustment for quick transitions between seated collaboration and standing huddle meetings, a custom-designed head for the Microsoft Surface Hub 2S(X) with selectable 0° or 15° tilt, and robust mobility thanks to four solid castor wheels with brakes on the two front wheels. The silver finish and compact trolley design simplify integration into meeting rooms and shared workspaces while supporting large displays and heavy loads.

Suitable for

Key specifications

How to use

Place the trolley on a level surface and lock the front castors to secure position. Attach the Microsoft Surface Hub 2S(X) to the custom head following the display manufacturer’s mounting instructions and the VESA 350 x 350 mm pattern. Use the wired remote to raise or lower the screen within the 1340–1840 mm floor-to-centre range; select the 0° or 15° tilt position as needed for viewing or to reduce glare. Unlock the castors to move the trolley between workspaces and relock them when stationary.

Recommendations

For safe operation, ensure the mounted display does not exceed the 150 kg maximum load and verify correct VESA alignment before lifting. Lock the castors when the stand is in use to prevent unintended movement, and follow the Microsoft Surface Hub manufacturer guidelines for installation and cable management.
