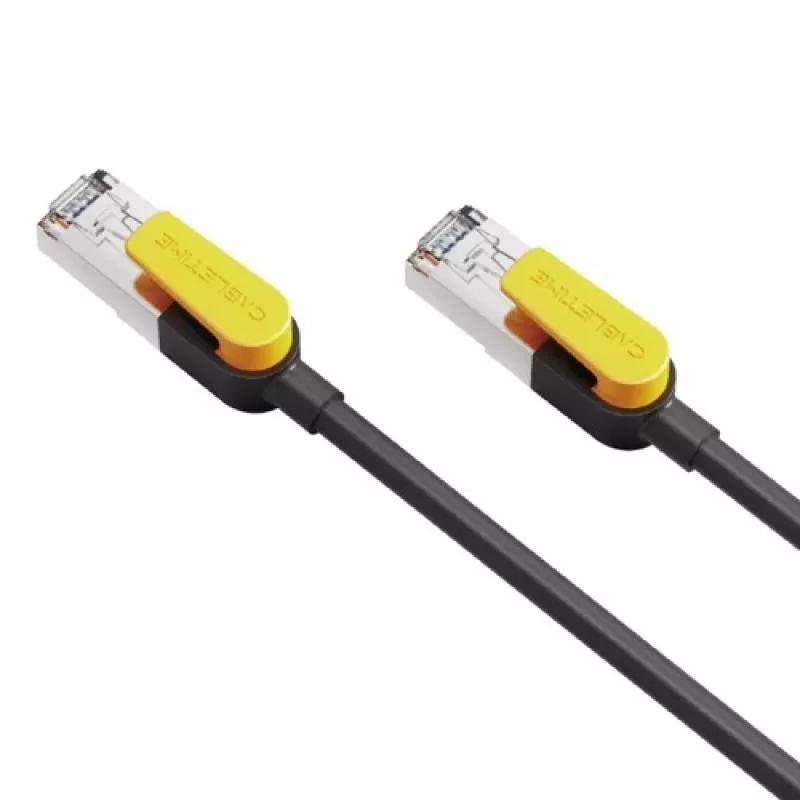

Netwerk-patchkabel CABLETIME Cat7 S/STP 0,5 m, zwart

The Cat7 cable with RJ45 connectors is designed for structured computer networks, IP telephony, and transmission of data and video signals. This shielded S/STP CAT7 cable supports high-speed Ethernet up to 10 Gb/s and a channel bandwidth of 600 MHz, and is compatible with Cat6 and Cat5E configurations. The cable features 26 AWG oxygen-free copper (OFC) conductors, gold-plated contacts, PVC insulation and a black outer jacket, making it suitable for connections between computers, servers, smart TVs, switches, routers, digital receivers and gaming consoles. Cable length: 0.5 m.

Advantages

The cable’s S/STP construction with four foil-shielded twisted pairs plus an additional braided metal shield provides strong protection against electromagnetic (EMI) and radio-frequency (RFI) interference and minimizes signal leakage for stable, accurate data transfer. Gold-plated RJ45 contacts ensure reliable mating and corrosion resistance. Wiring follows the ANSI/TIA/EIA-568B standard for straightforward installation and compatibility across network equipment. Compact 26 AWG OFC conductors deliver good conductivity and durability for short patch runs.

Key specifications

• Cable type: S/STP CAT7 (shielded)
• Connectors: RJ45 (male), 8-pin
• Data transfer rate: 10/100/1000/10000 Mbps (10 Gb/s)
• Channel bandwidth: 600 MHz
• Internal conductor: OFC (oxygen-free copper), 26 AWG
• Shielding: double aluminum foil per pair + braided ground shield
• Contacts: copper with gold plating
• Insulation: PVC
• Wiring standard: 568B (ANSI/TIA/EIA-568B)
• Outer diameter: 6.3 mm
• Cable color: black
• Cable length: 0.5 m
• Warranty: 12 months

How to use

Connect one RJ45 end to the network device (computer, switch, router or other compatible equipment) and the other end to the corresponding port on the second device. Ensure both devices are powered off or follow hot-plug recommendations of the equipment manufacturer if connecting while powered. Verify wiring follows the 568B standard and that connectors are fully inserted and latched to avoid intermittent connection. For best performance, avoid tight bends and keep the cable away from strong sources of electromagnetic interference.

Recommendations

Use this Cat7 patch cable for short-distance connections up to 0.5 m within racks or between nearby devices where 10 Gb/s performance and enhanced shielding are required. For longer runs, choose appropriately rated in-wall or longer-length cables and follow local installation standards.
