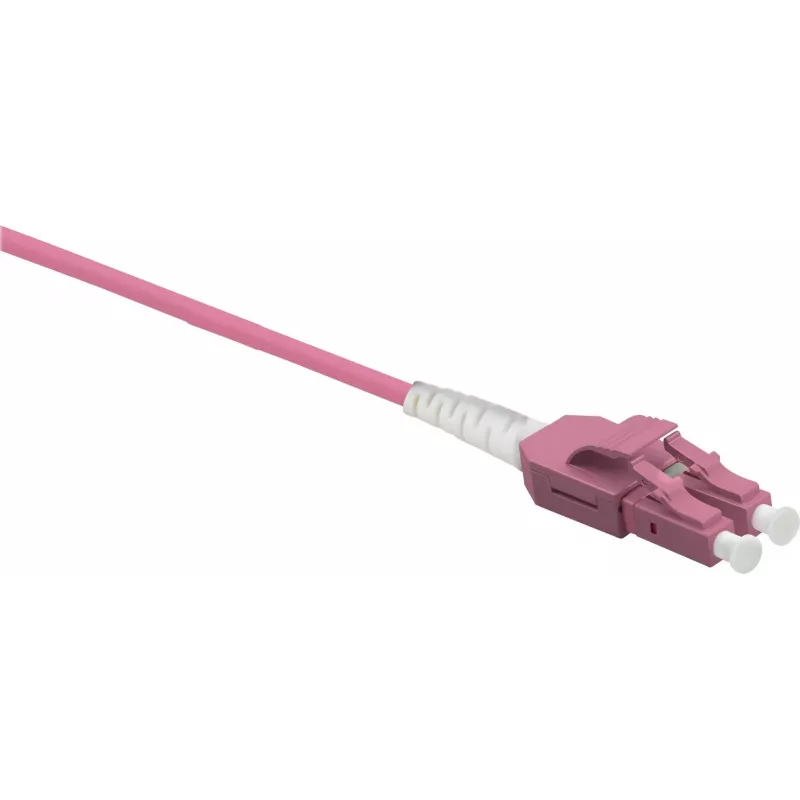

Helos LWL OM4 Uniboot patchkabel LC/LC Duplex 50/125 µm, LSZH 2,0 mm, 1 m, Erika Violet

The Helos LWL OM4 Uniboot Patch Cable is a duplex multimode fiber optic cable with LC connectors on both ends. It features a uniboot design with two fibers in one jacket, a 2.0 mm outer diameter, and LSZH jacket material. The cable supports data transfer rates up to 40 Gbit/s and is suitable for high-performance network applications.

Key features

• Uniboot design: two fibers in one jacket
• Duplex patch cable, multimode 50/125 µm
• OM4 fiber type
• LC/LC connectors
• LSZH (low smoke zero halogen) jacket
• CPR Cca(s1a,d0,a1)
• Erika violet color
• 2.0 mm cable diameter
• Data transfer rate up to 40 Gbit/s
• Polarity easily changeable
• Each cable comes with a test report

Specifications

• Brand: helos
• MPN: 373355
• Cable length: 1 m
• Fiber type: OM4
• Cable shape: round
• Connector 1: LC
• Connector 2: LC
• Connector 1 gender: male
• Connector 2 gender: male
• Cable type: LC/LC
• Feature: full duplex
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Jacket material: LSZH
• Standards: ISO/IEC 11801, IEC 60793-2-10, IEC 61753-222-2
