Netwerkkabel Lanberg LCU5-10CC-0305-B U/UTP 305 m blauw

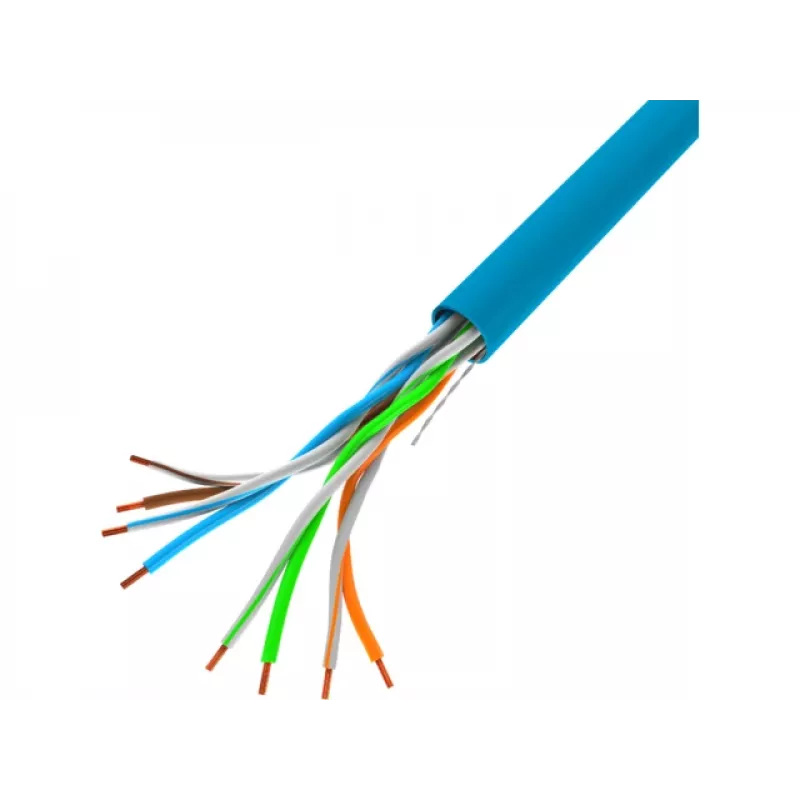

Lanberg LCU5-10CC-0305-B is a 305 m U/UTP LAN cable with blue outer jacket and printed length marking at every meter. The cable uses CCA (copper-clad aluminum) conductors, AWG 24 single-wire construction (4 pairs), HDPE pair insulation and PVC outer sheath. It is designed for data transmission up to 100 MHz and packaged in a cardboard box with dimensions 36 x 23 x 36 cm.

Advantages

This U/UTP cable provides a long 305 m reel suitable for extended runs, with a visible meter counter on the sheath for easier installation. The AWG 24 single-wire conductor and PVC outer insulation offer straightforward handling and installation in short-distance network segments. The blue RAL5012 jacket allows easy visual identification within cabling paths.

Suitable for

• Horizontal and vertical short-distance network runs (structured cabling within 100–120 m)
• Office and home Ethernet connections up to 100 MHz
• Patch panels, switches and wall outlets where bare cable is terminated on-site

Key specifications

• Type: U/UTP (unshielded)
• Length: 305 m
• Conductor: CCA (copper-clad aluminum), AWG 24, single-strand
• Pairs: 4 (4*2*0.5 mm)
• HDPE conductor insulation: 0.93 mm
• Outer PVC insulation thickness: 5.0 mm
• Printed length counter: every meter
• Operating frequency: up to 100 MHz
• Characteristic impedance: <100 Ω (±15)
• Pair-to-ground capacitance: <330 pF / 100 m
• Conductor resistance (max): 60–90 Ω / 305 m
• Insulation resistance (min): 5000 MΩ·km
• Working distance: 100–120 m
• Operating temperature: -20 to 70 °C
• Transport and storage temperature: 0 to 60 °C
• Color: Blue (RAL5012)

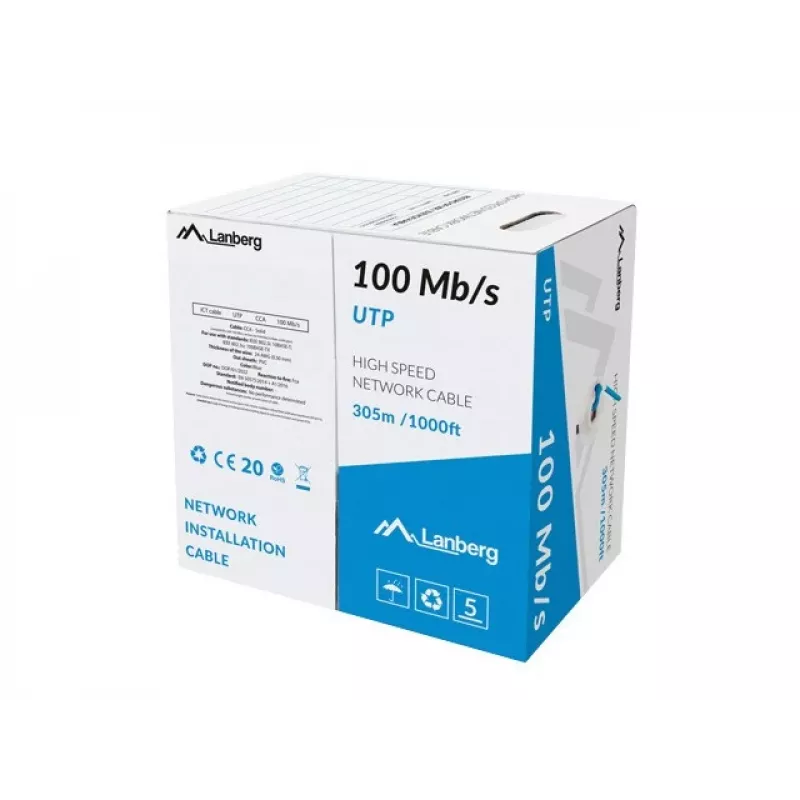

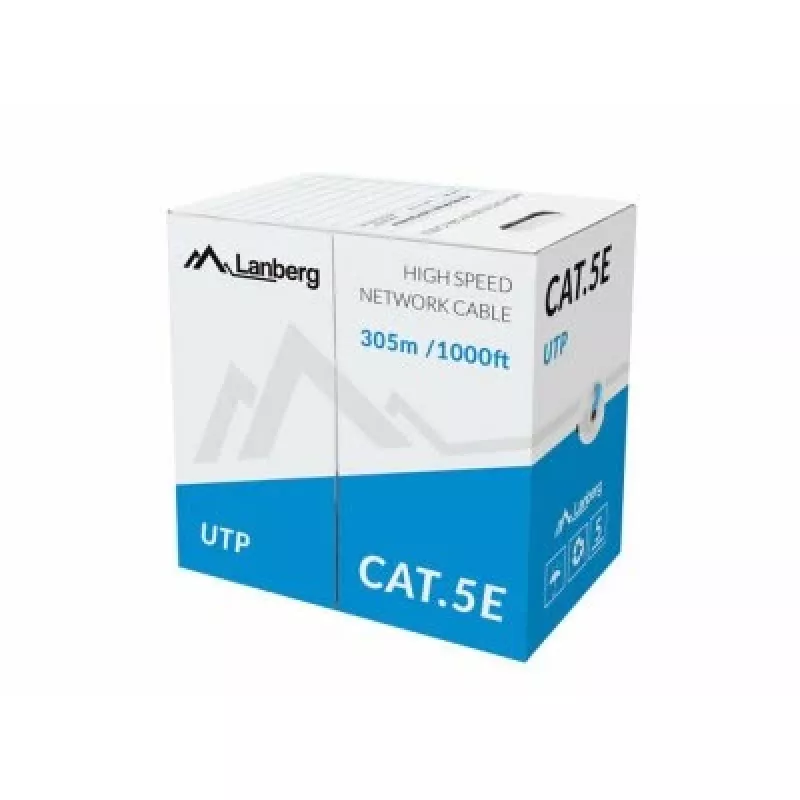

• Package: cardboard box (36 x 23 x 36 cm)

How to use

Run the U/UTP cable from the network device to the termination point following standard cabling practices. Strip the outer PVC sheath and separate pairs without damaging the HDPE insulation. Terminate conductors on appropriate keystone jacks, patch panels or connectors according to the required wiring scheme (e.g., T568A/B). Observe the printed meter markings to measure runs and cut the required length. For reliable performance keep single-run lengths within the specified working distance and avoid excessive bending or crushing.

Recommendations

Intended for short-distance structured cabling up to 100–120 m. Fluke certification has not been confirmed; verify compatibility with your installation and testing equipment if required by project standards.
