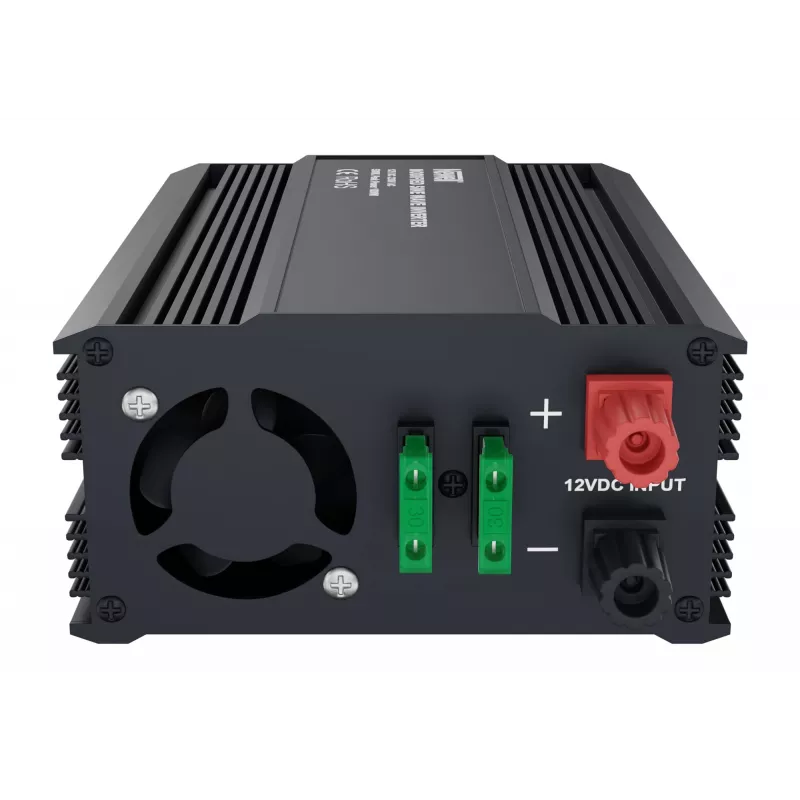

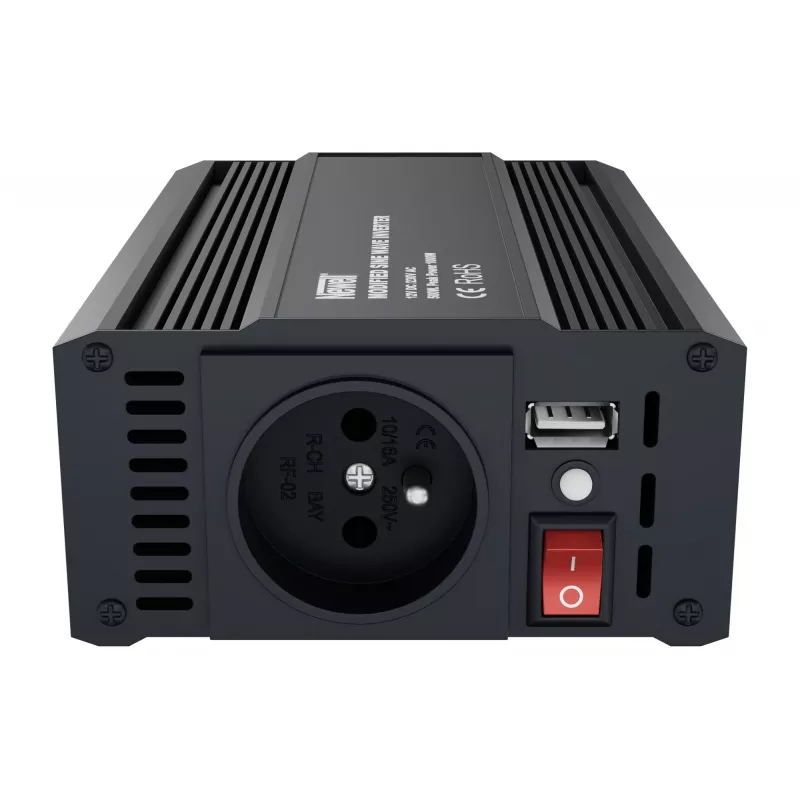

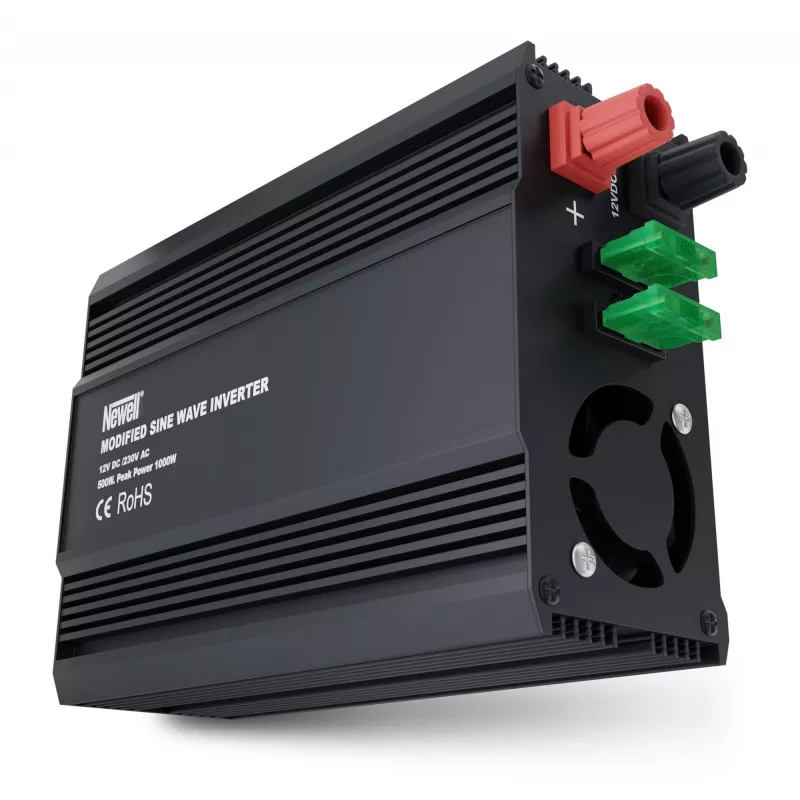

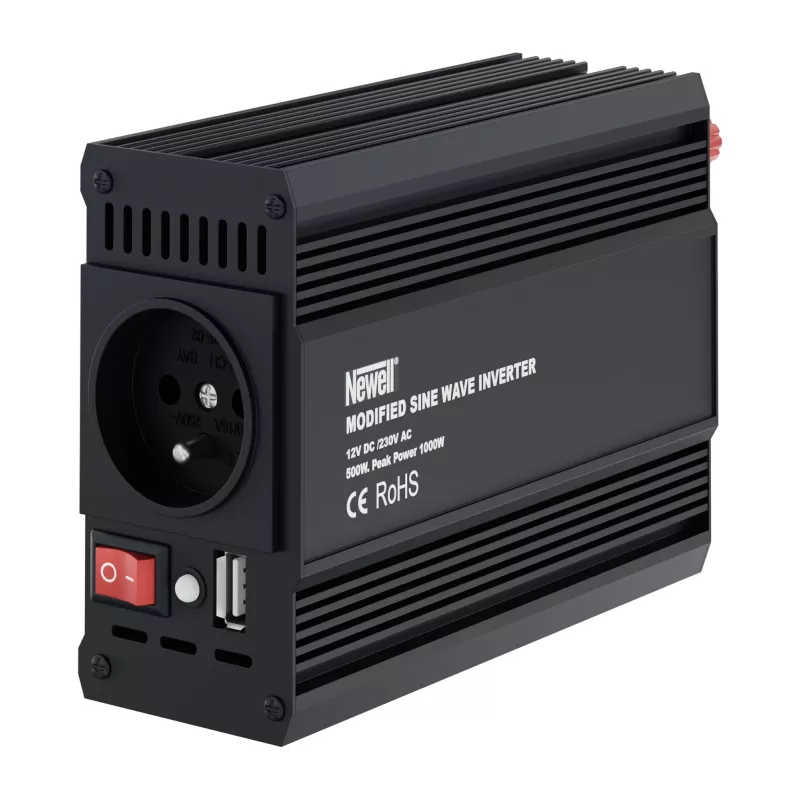

Newell power inverter met gemodificeerde sinusgolf - 12 V / 230 V, 500 W

The Newell Power Inverter with Modified Sine Wave converts 12V DC from a car battery or other DC source into 230V AC, providing a reliable power supply for your electronic devices. With a continuous output of 500W and a peak power of 1000W, it is ideal for powering small appliances, tools, and electronics on the go.

Advantages

This inverter features a modified sine wave output, making it compatible with most household devices. It includes multiple protection features such as overload, short circuit, over-temperature, over-voltage, under-voltage, and reverse polarity protection, ensuring safe operation. The active cooling fan keeps the unit running efficiently even under heavy loads.

Suitable for

• Camping and outdoor activities
• Road trips and car travel
• Emergency backup power
• Powering small appliances and electronics

Key specifications

• Input Voltage: 12V DC
• Output Voltage: 230V AC
• Output Waveform: Modified Sine Wave
• Continuous Power Output: 500 W
• Peak Power Output: 1000 W
• Output Frequency: 50 Hz
• USB Output: 1x 5V / 2.1A
• Efficiency: >85%
• Protection Features: Overload, Short Circuit, Over-temperature, Over-voltage, Under-voltage, Reverse Polarity
• Cooling Method: Active (Fan)
• Input Connection: Battery Clamps
• AC Output Sockets: 1x Schuko (EU Standard)
• Operating Temperature: 0°C to 40°C
• Housing Material: Aluminum Alloy
• LED Indicators: Power, Fault
• Low Battery Alarm: Yes
• Low Battery Shutdown: Yes

Recommendations

For best performance, connect the inverter directly to a 12V battery using the included battery clamps. Ensure the total power consumption of connected devices does not exceed 500W continuously. This inverter is not suitable for devices with high starting currents such as refrigerators or air conditioners.
