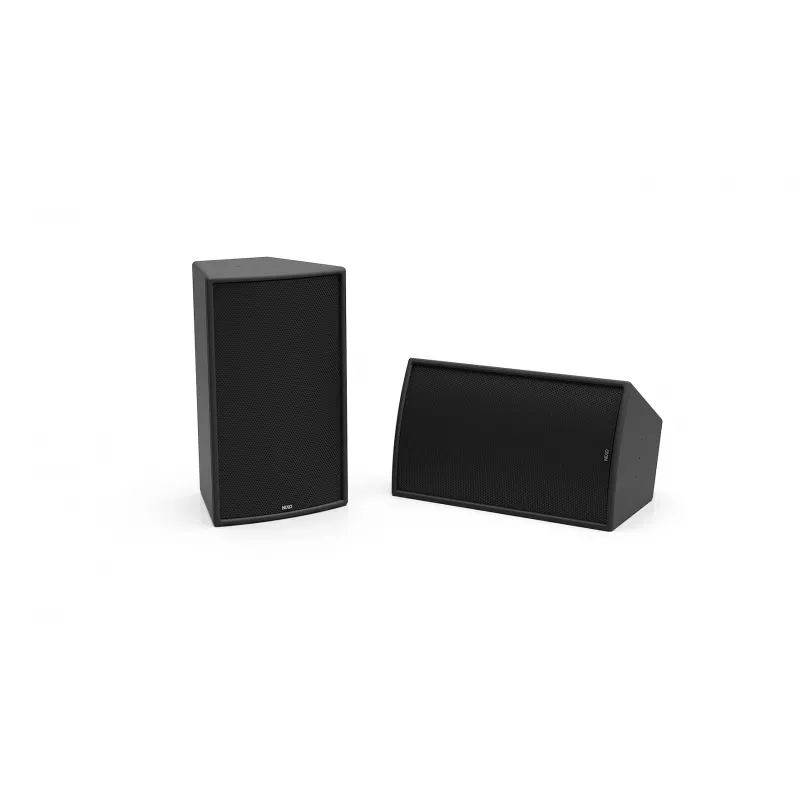

NEXO ePS10-EN54 high-performance puntschalluidspreker voor vaste buiteninstallatie - zwart

The NEXO ePS10-EN54 is a high-performance 2-way passive point source loudspeaker engineered for fixed outdoor installations and voice alarm systems, delivering exceptional clarity and reliability in demanding environments. Featuring a 10" long excursion neodymium driver and a 1.7" diaphragm compression driver, it offers a frequency response of 65 Hz to 20 kHz with a peak SPL of 136 dB, ensuring powerful and articulate sound reinforcement.

Advantages

EN54-24 certified for voice alarm systems, IP55 rated for dust and water jet protection, rotatable constant directivity horn (100° x 40°), high sensitivity (103 dB SPL) and peak SPL (136 dB SPL), robust Baltic birch plywood enclosure with UV-resistant black paint.

Suitable for

• Fixed outdoor installations
• Voice alarm systems
• Sound reinforcement in public spaces
• Stadiums, arenas, and outdoor venues

Key specifications

• Loudspeaker Type: 2-way Passive Point Source
• LF Driver: 10" Long Excursion Neodymium Driver
• HF Driver: 1.7" Diaphragm Compression Driver
• Frequency Response (±3dB): 65 Hz - 20 kHz
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 103 dB SPL
• Peak SPL (1m): 136 dB SPL
• Power Handling (Nominal/Peak): 400W / 640W (AES)
• Dispersion (H x V): 100° x 40° (Rotatable Horn)
• Crossover Frequency: 1.8 kHz
• EN54-24 Certification: Yes
• IP Rating: IP55
• Enclosure Material: 15 mm Baltic Birch Plywood
• Finish: Black Structural Paint (UV Resistant)
• Grille: UV and Water Resistant Steel Grille with Acoustic Fabric
• Connectors: 2 x IP54 Rated Cable Glands

Recommendations

For optimal performance in outdoor or voice alarm applications, pair the ePS10-EN54 with NEXO subwoofers and use appropriate DSP settings. Ensure proper mounting with the integrated M10 rigging points and compatible accessories for secure installation.
