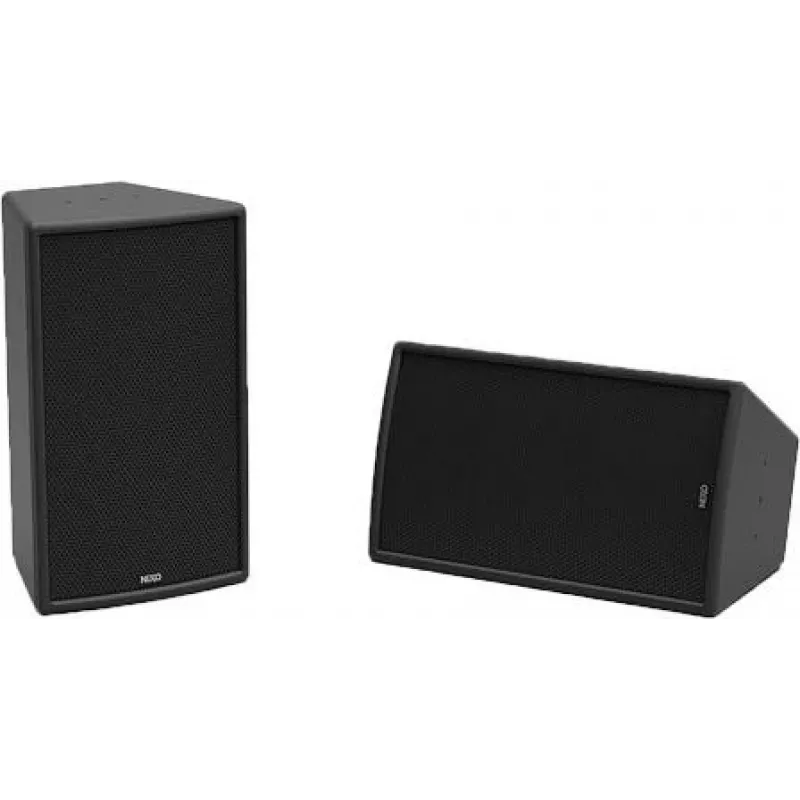

NEXO ePS8-EN54 high-performance puntbronluidspreker voor buiteninstallatie - zwart

The NEXO ePS8-EN54 is a high-performance, passive point source loudspeaker designed for outdoor fixed installations. Engineered for exceptional sound quality and reliability, this 2-way system delivers clear, powerful audio in a compact, weather-resistant enclosure. Ideal for applications requiring EN54-24 certification, the ePS8-EN54 ensures compliance with fire alarm and emergency voice evacuation standards.

Advantages

With an 8-inch long excursion LF driver and a 1-inch throat compression driver on a rotatable horn, the ePS8-EN54 provides a frequency response of 80 Hz to 20 kHz and a maximum SPL of 128 dB peak. Its IP55 rating and durable Baltic birch plywood enclosure make it suitable for harsh outdoor environments. The rotatable horn allows flexible coverage (100° x 100°), and the EN54-24 Type B certification guarantees reliability for life safety systems.

Suitable for

• Outdoor fixed installations such as stadiums, theme parks, and transportation hubs
• Emergency voice evacuation and fire alarm systems requiring EN54-24 compliance
• High-quality background music and paging in public spaces

Key specifications

• Speaker Type: 2-way Passive Point Source Loudspeaker
• LF Driver: 8-inch Long Excursion Driver
• HF Driver: 1-inch Throat Compression Driver on Rotatable Horn
• Frequency Response (±3dB): 80 Hz - 20 kHz
• Nominal Impedance: 8 Ohms
• Power Handling (RMS): 200 W
• Peak Power Handling: 800 W
• Sensitivity (1W/1m): 96 dB SPL
• Maximum SPL (Peak): 128 dB SPL
• Dispersion (H x V): 100° x 100° (Rotatable)
• Crossover Frequency: 1.8 kHz
• Connectors: 2 x 4-pole Terminal Block (IP54)
• IP Rating: IP55
• EN54-24 Certification: Yes (Type B)
• Enclosure Material: 15 mm Baltic Birch Plywood
• Finish: Structured Black Coating
• Mounting Points: 3 x M6, 2 x M10
• Recommended Amplifier Power: 200 W to 400 W into 8 Ohms

Recommendations

For optimal performance, pair the ePS8-EN54 with a NEXO amplifier and use the NEXO NS-1 software for system configuration. Ensure proper mounting using the provided M6 and M10 points. This loudspeaker is a reliable choice for demanding outdoor applications where audio clarity and safety compliance are paramount.
