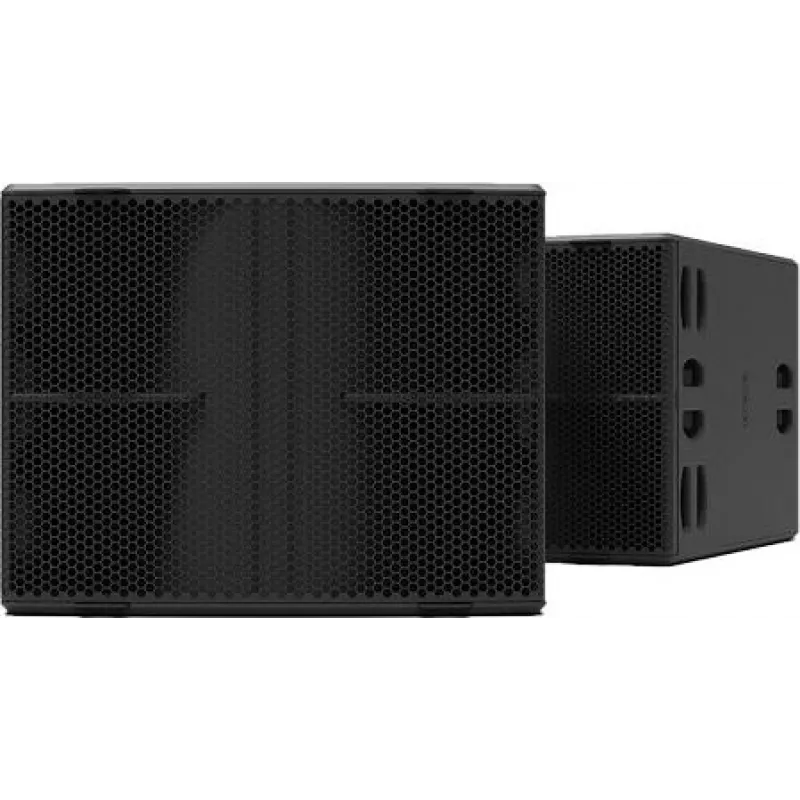

NEXO L20 high-performance subwoofer voor P18 point source luidsprekers - zwart (L..20U)

The NEXO L20 is a high-performance subwoofer specifically designed to complement the NEXO P18 point source loudspeakers. Featuring a single 20-inch long-excursion neodymium driver, this subwoofer delivers powerful, deep bass with exceptional clarity and impact. Its robust Baltic birch plywood enclosure with black textured paint ensures durability and a professional appearance, while integrated rigging points and an M20 pole mount socket offer flexible installation options. Ideal for live sound reinforcement, fixed installations, and touring applications, the L20 provides the low-frequency extension needed for a full-range system.

Advantages

Exceptional low-frequency performance with a 20-inch neodymium driver, high sensitivity of 105 dB SPL, and peak SPL of 141 dB. The enclosure is built from Baltic birch plywood for maximum rigidity and low resonance. Integrated rigging points and pole mount socket simplify setup. Compatible with NEXO P18 speakers for seamless system integration.

Suitable for

• Live sound reinforcement for concerts and events
• Fixed installations in clubs, theaters, and houses of worship
• Touring sound systems requiring high output and reliability
• Complementing NEXO P18 point source loudspeakers

Key specifications

• Driver: 1x 20-inch long-excursion neodymium
• Frequency response (-6dB): 32 Hz - 120 Hz
• Sensitivity (1W/1m): 105 dB SPL
• Peak SPL (1m): 141 dB
• Nominal impedance: 8 Ohms
• Recommended amplification: 1000 - 2000 W into 8 Ohms
• Connectors: 2x NL4 (IN/OUT)
• Enclosure: Baltic birch plywood with black textured paint
• Mounting: Integrated rigging points, M20 pole mount socket

Recommendations

For optimal performance, use with NEXO P18 speakers and a compatible NEXO controller. Recommended crossover frequency: 60 Hz - 100 Hz.
