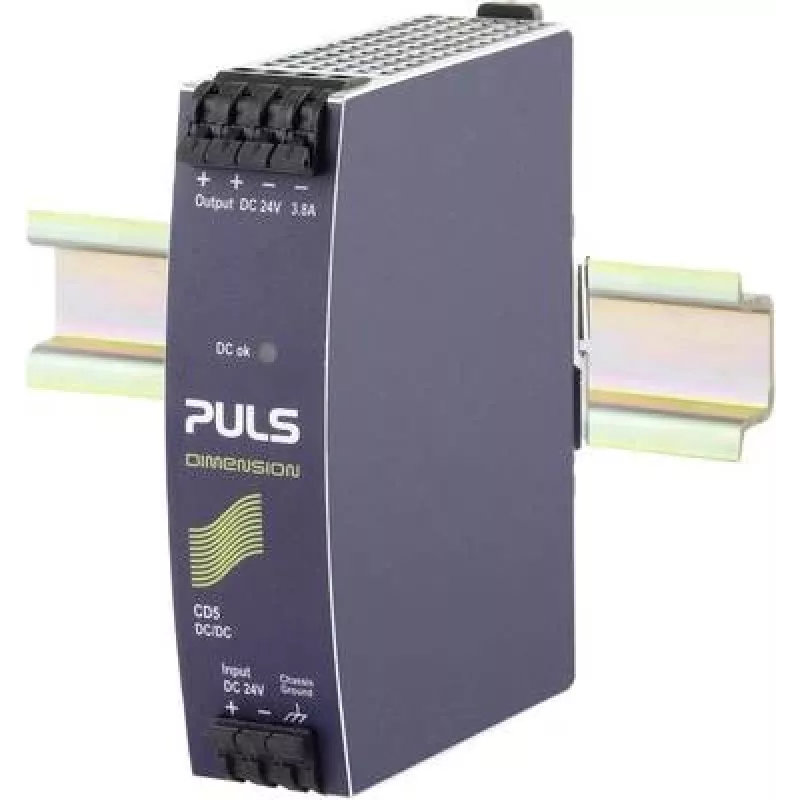

PULS DIMENSION CD5.241-L1 DC/DC-converter 24V 3,8A 91,2W DIN-rail

Delivers 91.2 W of regulated 24 VDC output from a 24 VDC nominal input, with 94.5% efficiency and a compact DIN-rail housing.

Overview

The PULS DIMENSION CD5.241-L1 is a DC/DC converter that steps down or stabilizes a 24 VDC input (18–32 VDC range) to a precisely adjustable 24 VDC output (22.5–28 VDC). It supplies up to 3.8 A, making it suitable for industrial control systems, automation, and other demanding applications. Convection cooling and a rugged aluminum housing ensure reliable operation from -25°C to +70°C.

What stands out

• High efficiency of 94.5% reduces heat and energy costs.
• Wide input range tolerates fluctuating DC sources.
• Adjustable output voltage for flexible integration.
• Comprehensive protection: overload, short-circuit, overvoltage, overtemperature.
• DIN-rail mounting for quick installation in control cabinets.

Technical details

• Product type: DC/DC Converter
• Input voltage: 18–32 VDC (nominal 24 VDC)
• Output voltage: 24 VDC (adjustable 22.5–28 VDC)
• Output current: 3.8 A
• Output power: 91.2 W
• Efficiency: 94.5%
• Number of outputs: 1
• Mounting: DIN rail
• Operating temperature: -25°C to +70°C
• Protection: Overload, short-circuit, overvoltage, overtemperature
• Ripple & noise: <50 mVpp
• Isolation voltage (input/output): 2.5 kVAC
• MTBF: >1,000,000 hours
• Cooling: Convection
• Connection: Screw terminals
• Housing material: Metal (aluminum)

Our verdict

A robust and efficient DC/DC converter for industrial 24 V systems, offering precise adjustment and reliable protection in a compact DIN-rail package.
