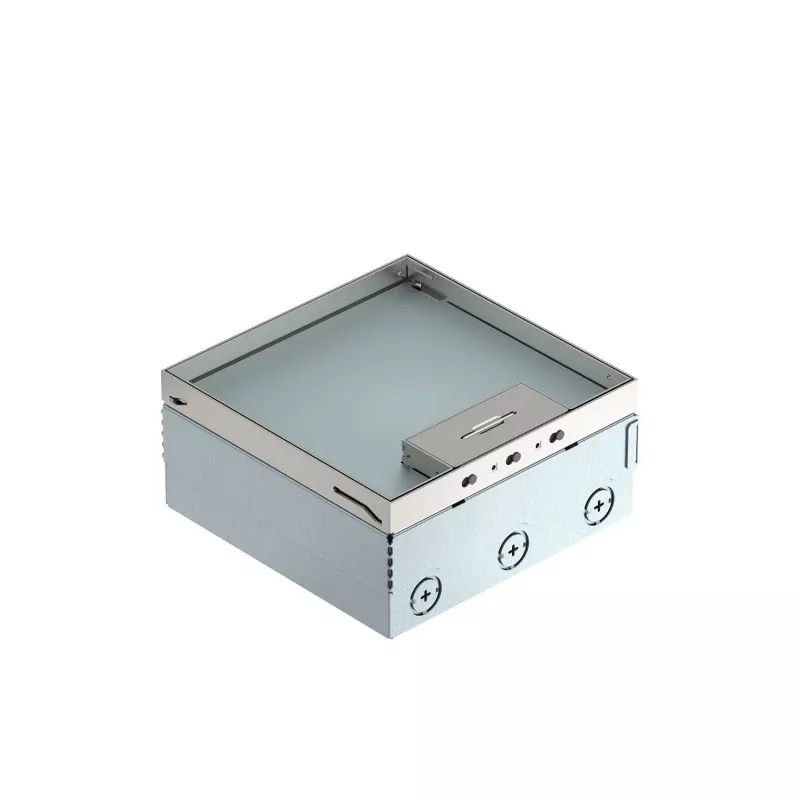

OBO Bettermann UDHOME4 2V vloertank, leeg, roestvrij staal, 2-voudig 7427232

Floor box for flush-mounted installation in screed, offering two device installation units for Modul 45 inserts. The housing is made of polyamide and the cover frame and plate are stainless steel, providing a robust and durable solution for power and data access in dry-cleaned floor areas.

Advantages

The stainless steel cover ensures a sleek appearance that integrates seamlessly into modern interiors. The height adjustment range of 30 mm allows for precise alignment with the finished floor level, accommodating screed thicknesses from 75 to 105 mm. Four M25 cable entry points provide flexible routing for power and data cables.

Suitable for

• Office and administration buildings
• Exhibition and sales areas
• Dry-cleaned floor environments

Key specifications

• Number of device installation units: 2 (for Modul 45 devices)
• Material housing: Polyamide (PA)
• Material cover frame and plate: Stainless steel
• Floor covering recess depth: 15 mm
• Minimum installation depth: 75 mm
• Maximum installation depth: 105 mm
• Height adjustment range: 30 mm
• Load capacity: 1.5 kN (150 kg)
• Protection class: IP20 (when closed)
• Cable entry points: 4 x M25
• Color: Stainless steel / Black
• Dimensions (outer): 240 x 240 mm

Recommendations

Pair with Modul 45 inserts for power, data, or multimedia connections. Ensure the screed is fully cured and dry before installation to maintain the IP20 rating.
