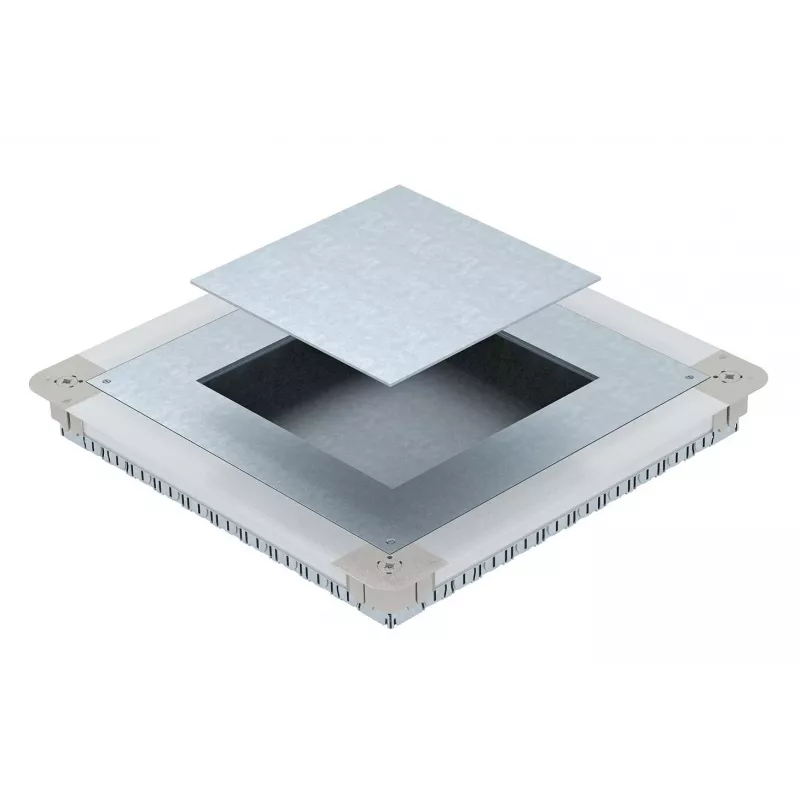

OBO Bettermann vloerdoos UGD55 350 voor GES9/55UV (7410062)

The OBO Bettermann UGD55 350 underfloor device box is a screed-flush installation unit engineered for the GES9/55UV system. Unlike generic floor boxes, it offers nine device installation units in a compact 55 mm depth, making it suitable for dense power and data distribution in dry-cleaned floor environments.

Highlights

• Nine device installation units for flexible configuration
• Halogen-free polyamide construction in black (RAL 9011)
• Pre-punched cable entries for quick wiring
• Load capacity of 1.5 kN for pedestrian traffic
• Compatible with floor coverings from 5 to 30 mm

In daily use

Installed directly into the screed, this box sits flush with the finished floor. Its pre-punched openings allow cables to enter without additional drilling, and the robust polyamide body withstands everyday foot traffic. The IP20 rating is suitable for dry indoor areas where the box is protected from moisture.

Full specifications

• Product Type: Underfloor Device Box
• Series: UGD55
• System Compatibility: OBO GES9/55UV
• Installation Method: Screed-flush
• Material: Polyamide (PA)
• Material Properties: Halogen-free
• Color: Black (RAL 9011)
• Number of Device Installation Units: 9
• Device Box Depth: 55 mm
• Max. Screed Height: 55 mm
• Load Capacity: 1.5 kN
• Protection Class (installed): IP20
• Operating Temperature Range: -5 to +60 °C
• Suitable for Floor Covering Thickness: 5-30 mm
• Cable Entry Type: Pre-punched openings
• Application Environment: Dry-cleaned floors
• Standards: DIN EN 50085-1, DIN EN 50085-2-2
• Mounting Type: For direct screed embedding

Final note

The UGD55 350 is a reliable choice for underfloor installations in offices and commercial spaces where a flush, high-capacity device box is required.
