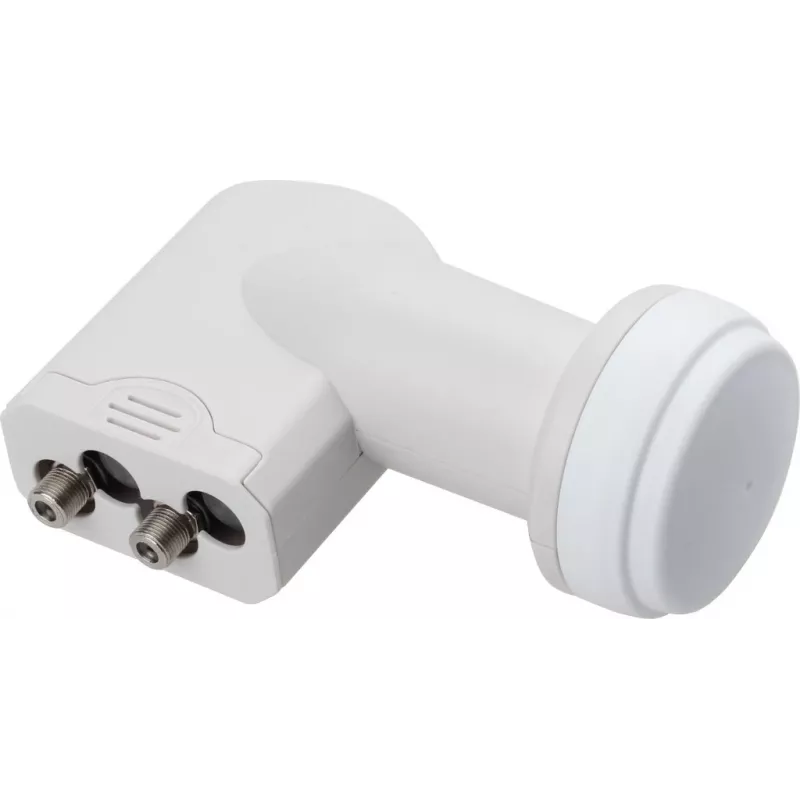

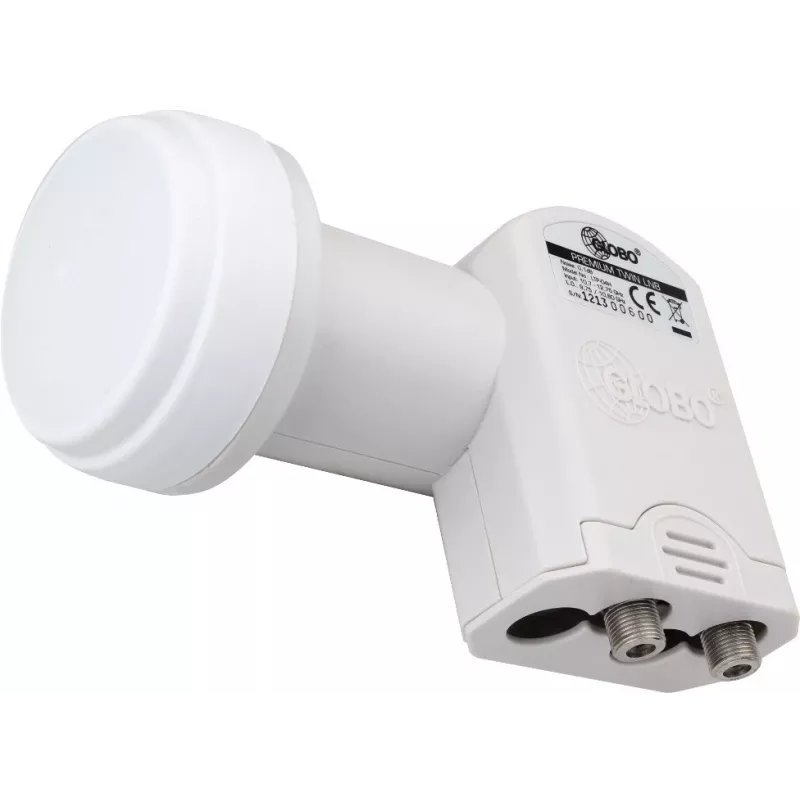

Opticum Globo Twin LTP-04H universele twin-LNB

Universal Twin LNB engineered for reliable satellite reception across the full Ku-band spectrum. The Opticum Globo Twin LTP-04H delivers two independent outputs, enabling simultaneous connection of two receivers or a PVR with dual tuners without compromising signal quality.

Advantages

Low noise figure of 0.1 dB ensures excellent signal clarity even in fringe reception areas. High conversion gain of 50–65 dB compensates for long cable runs. Weather-protected housing with retractable feedhorn cap guards against rain, snow, and UV exposure. Wide operating temperature range from -30°C to +60°C guarantees year-round performance.

Suitable for

• Households with two separate satellite receivers or a dual-tuner PVR
• Installations requiring independent channel selection on two TVs
• Upgrading from a single LNB to a twin-output system
• Use with standard 40 mm feed clamp satellite dishes

Key specifications

• LNB type: Universal Twin, 2 outputs
• Input frequency: 10.7–11.7 GHz (low band), 11.7–12.75 GHz (high band)
• Output frequency: 950–1950 MHz (low band), 1100–2150 MHz (high band)
• Local oscillator frequencies: 9.75 GHz (low), 10.6 GHz (high)
• Noise figure: 0.1 dB typical
• Conversion gain: 50–65 dB
• Feed diameter: 40 mm
• Cross polarization isolation: >20 dB
• Image rejection: >40 dB
• Power consumption: 120 mA max
• Connector: F-type
• Polarization control: 11.5–14 V (vertical), 16–19 V (horizontal)

Recommendations

Pair this LNB with a high-quality 40 mm feedhorn and weather-sealed F-connectors for optimal longevity. For best results, align the dish precisely using a satellite meter and ensure the LNB skew angle matches your geographic location.
