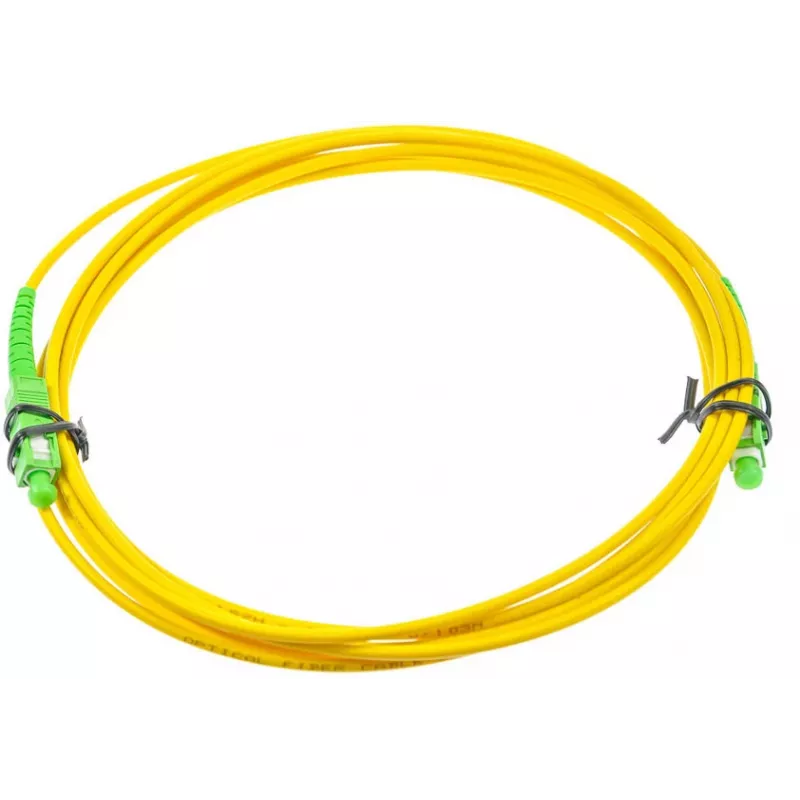

OPTIX singlemode 9/125 simplex glasvezel-patchkabel, 3m, SC/APC naar SC/APC, 3,0 mm LSZH geel

For installations where reflection must be kept to an absolute minimum, this OPTIX single-mode simplex patch cord pairs angled SC/APC connectors with a 9/125 µm core to deliver return loss of at least 60 dB. The 3-meter length and 3.0 mm LSZH jacket make it a practical choice for FTTH, CATV, and high-speed backbone links where space is tight but signal integrity cannot be compromised.

Highlights

• Single-mode 9/125 µm fiber with simplex configuration

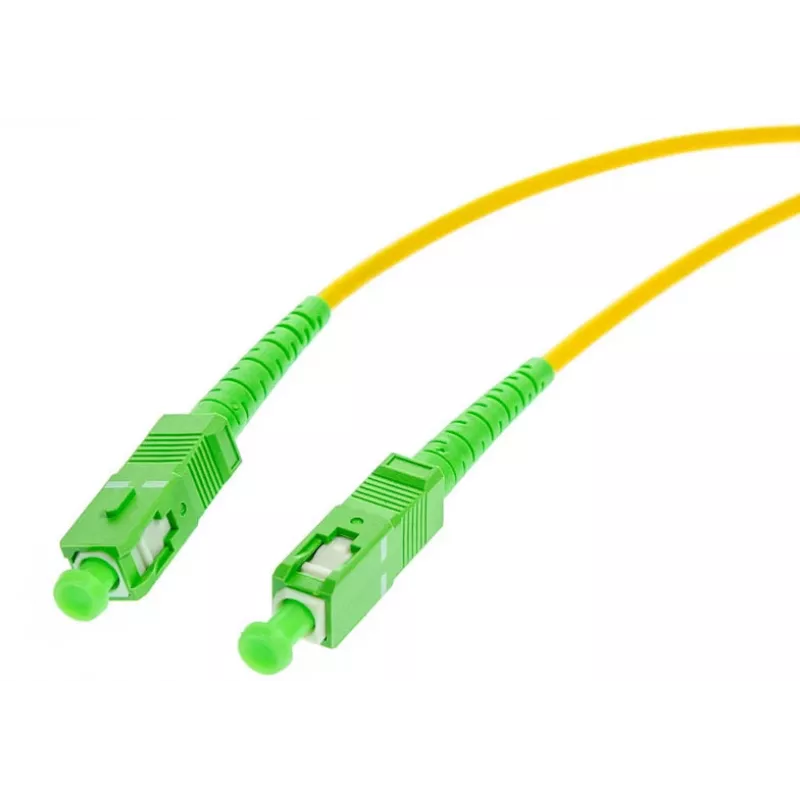

• SC/APC to SC/APC connectors with angled polish for low back reflection
• 3.0 mm LSZH yellow jacket for low smoke and zero halogen safety
• Typical insertion loss ≤ 0.3 dB, return loss ≥ 60 dB
• Supports 1310 nm and 1550 nm operating wavelengths
• Durable design: >500 mating cycles, bend radius 30 mm installation / 60 mm long-term
• Compliant with IEC 61754-4 and TIA/EIA-604-3A

In daily use

This patch cord is built for dependable point-to-point connections in patch panels, ONTs, and optical distribution frames. The APC polish on both ends reduces reflectance that can destabilize high-power or analog signals, while the LSZH jacket ensures safety in enclosed spaces. The 3-meter length offers flexibility without excess slack, and the 3.0 mm diameter balances durability with easy routing.

Full specifications

• Product type: Fiber optic patch cord
• Fiber mode: Single-mode (SM)
• Cable configuration: Simplex
• Connector type A: SC/APC
• Connector type B: SC/APC
• Fiber core/cladding diameter: 9/125 µm
• Cable length: 3 meters (9.84 ft)
• Cable diameter: 3.0 mm
• Ferrule polish: APC (Angled Physical Contact)
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 60 dB
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Operating wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Minimum bend radius (installation): 30 mm
• Minimum bend radius (long term): 60 mm
• Durability: >500 mating cycles
• Standard compliance: IEC 61754-4, TIA/EIA-604-3A

Final note

Choose this OPTIX patch cord when you need a reliable, low-reflection single-mode link in a compact, safety-conscious form factor.
