ORNO OR-SZ-8012/B1 Grote IPX8 beschermgel-verbindingsdoos, zwart

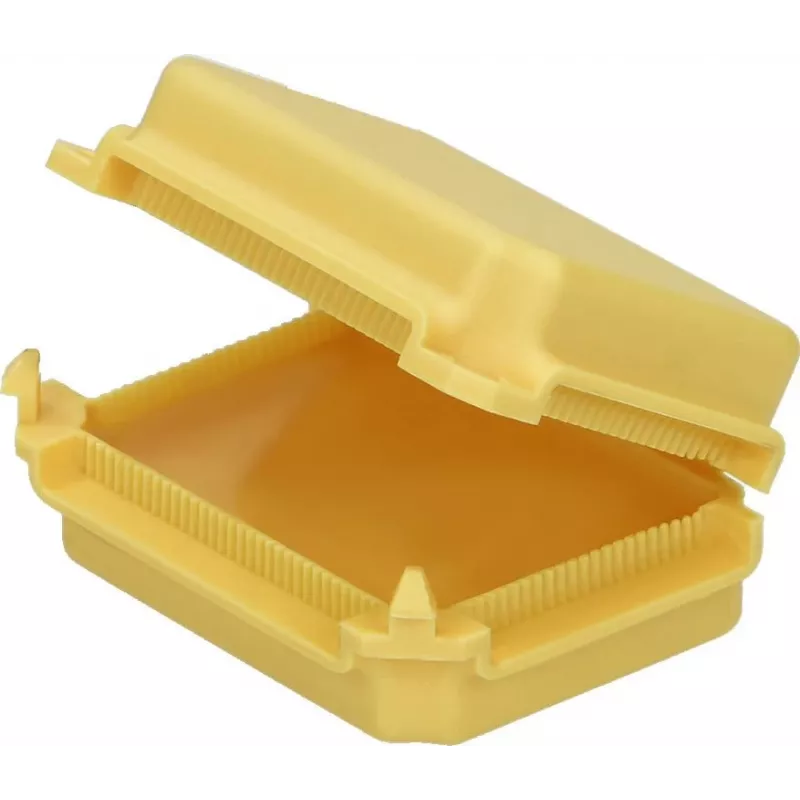

The ORNO OR-SZ-8012/B1 is a large protective gel junction box designed for reliable cable splicing and connections in demanding environments. With an IPX8 rating, it offers superior protection against water ingress, making it ideal for underground, submerged, outdoor, and indoor applications. The box features a non-toxic, re-enterable silicone gel that ensures a secure, waterproof seal while allowing future access to connections.

Advantages

This junction box provides exceptional durability and flexibility. Its high-quality polypropylene (PP) enclosure is UV-resistant, halogen-free, and flame retardant, ensuring long-lasting performance in harsh conditions. The re-enterable gel allows for easy maintenance and modifications without compromising the seal. With two cable entries supporting diameters from 6 to 12 mm, it accommodates a wide range of cable sizes.

Suitable for

• Underground cable splicing and junctions
• Submerged or outdoor electrical connections
• Indoor junction boxes requiring waterproofing
• Telecommunications and low-voltage applications

Key specifications

• Ingress Protection: IPX8
• Number of Cable Entries: 2
• Supported Cable Diameter: 6 - 12 mm
• Maximum Voltage: 1 kV (1000V)
• Gel Type: Non-toxic, re-enterable, silicone-based
• Enclosure Material: Polypropylene (PP)
• Operating Temperature: -20°C to +90°C
• UV Resistant: Yes
• Halogen-Free: Yes
• Flame Retardant: Yes
• Colour: Black

Recommendations

Ensure cables are properly stripped and inserted into the gel-filled chamber for optimal sealing. The box is re-enterable, so you can open it for inspection or additions without damaging the gel. Suitable for use with low-voltage cables up to 1 kV.
