Patchpaneel DELOCK mini desktop RJ45 4 poorten Cat.6A afgeschermd zwart, metaal, 90×22×93 mm

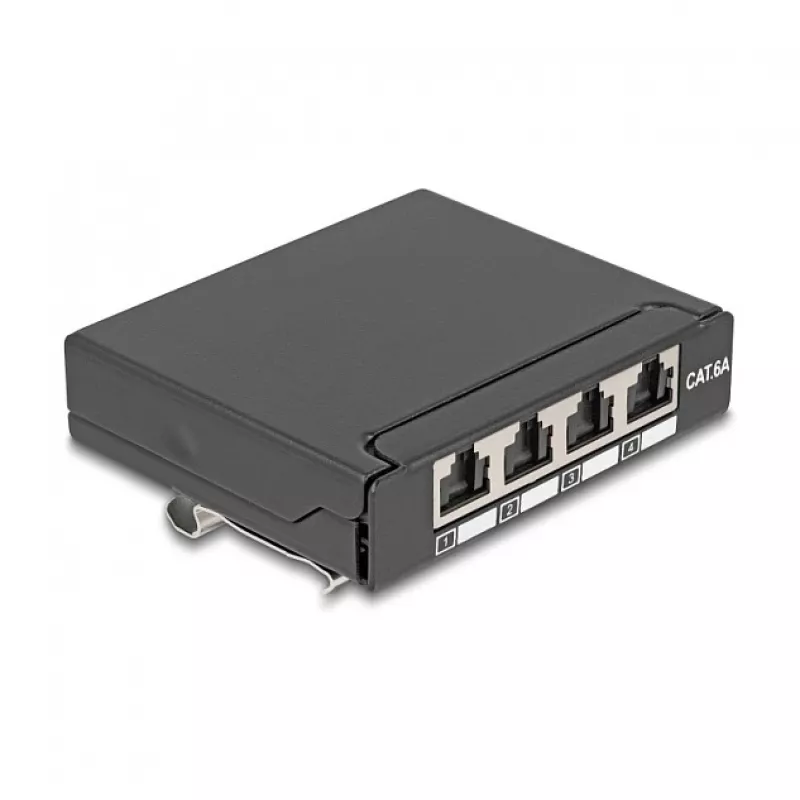

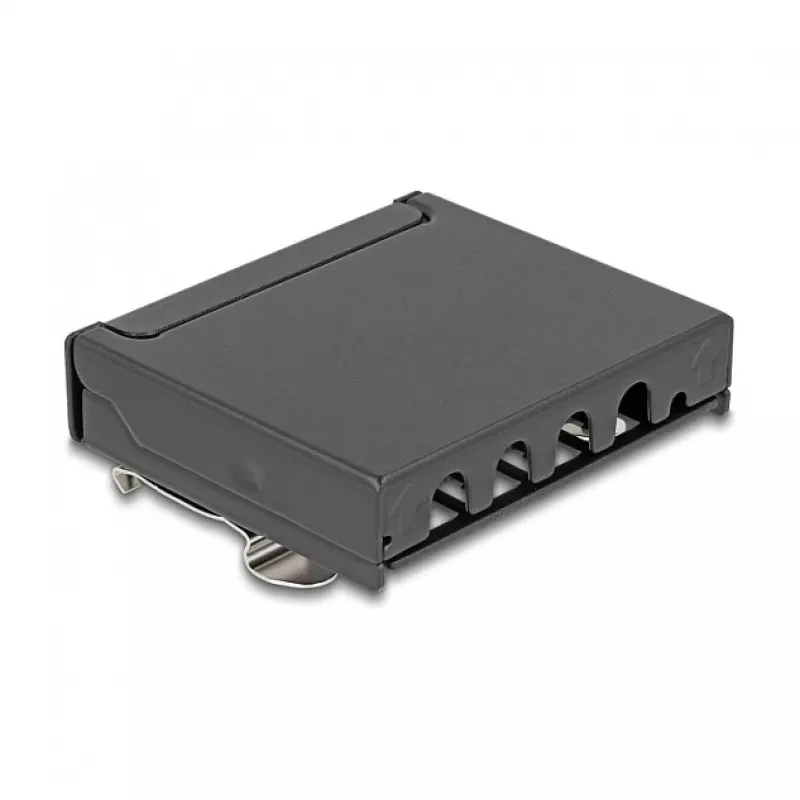

DELOCK Mini Desktop RJ45 4-port Cat.6A shielded patch panel in black metal offers a compact, shielded distribution point for Cat6a cabling. With four RJ45 female ports protected by dust flaps, the unit supports AWG 22–26 conductors and is designed for installation on a desk, wall or 35 mm DIN rail. Its small footprint (90×22×93 mm) makes it suitable for desktop installations, small server rooms and office network extensions where space is limited.

Advantages

The shielded metal housing reduces electromagnetic interference and provides a durable enclosure for repeated use. Dust protection flaps on each RJ45 jack help keep contact surfaces clean and maintain reliable connections. Multiple mounting options — table, wall or DIN rail — increase installation flexibility in technical rooms, distribution boxes or compact racks. The unit supports Cat6a cabling and common AWG sizes, enabling high-performance 10 Gigabit Ethernet connections over properly installed Cat6a cable.

Suitable for

Key specifications

How to use

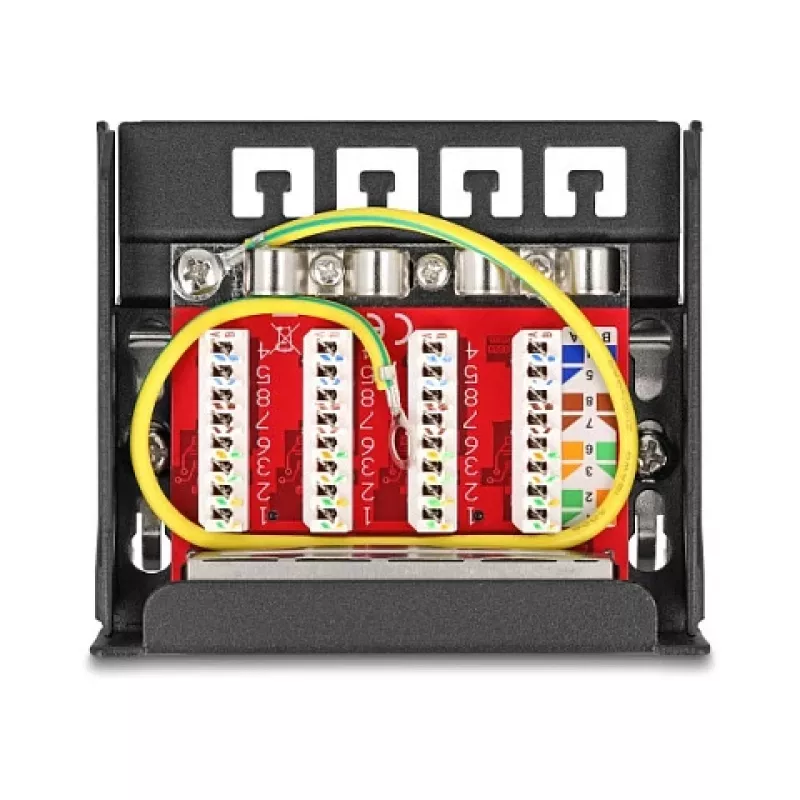

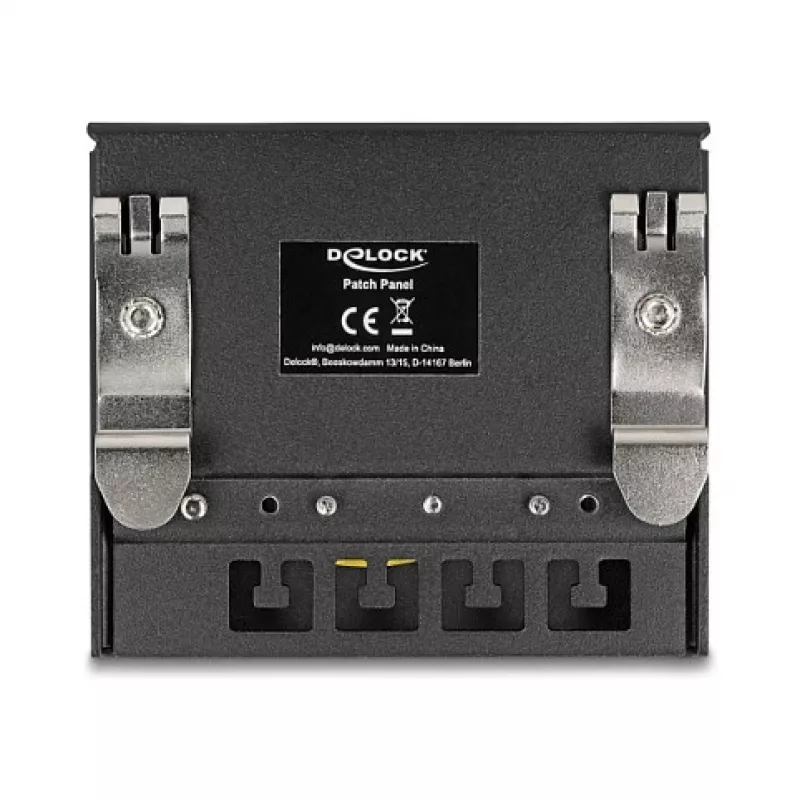

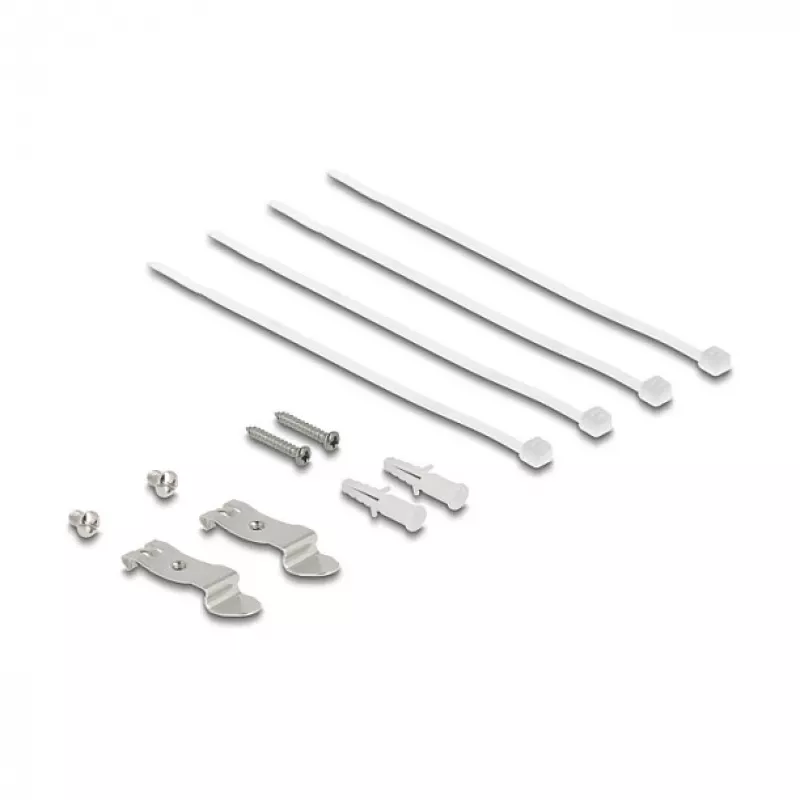

Mount the patch panel at the chosen location using the supplied DIN rail clips for 35 mm rails or secure it directly to a wall or desk using appropriate screws and anchors. Terminate Cat6a cables to the RJ45 connectors following standard T568A or T568B pair assignments and ensure correct AWG conductor sizes (22–26). After termination, insert the RJ45 plugs from network devices or patch cords into the shielded jacks, closing the dust flaps when ports are not in use to protect contact surfaces.

Recommendations

For optimal performance, use certified Cat6a patch cords and ensure proper grounding of the shielded cable system and metal housing. Verify pair assignments and test each link with appropriate cable testers after installation. Avoid sharp bends and maintain recommended bend radius for Cat6a cables to preserve signal integrity.
