Patchpanel 19 inch DELOCK 24 poorten Keystone, kantelbare poorten, trekontlasting, 1U metaal

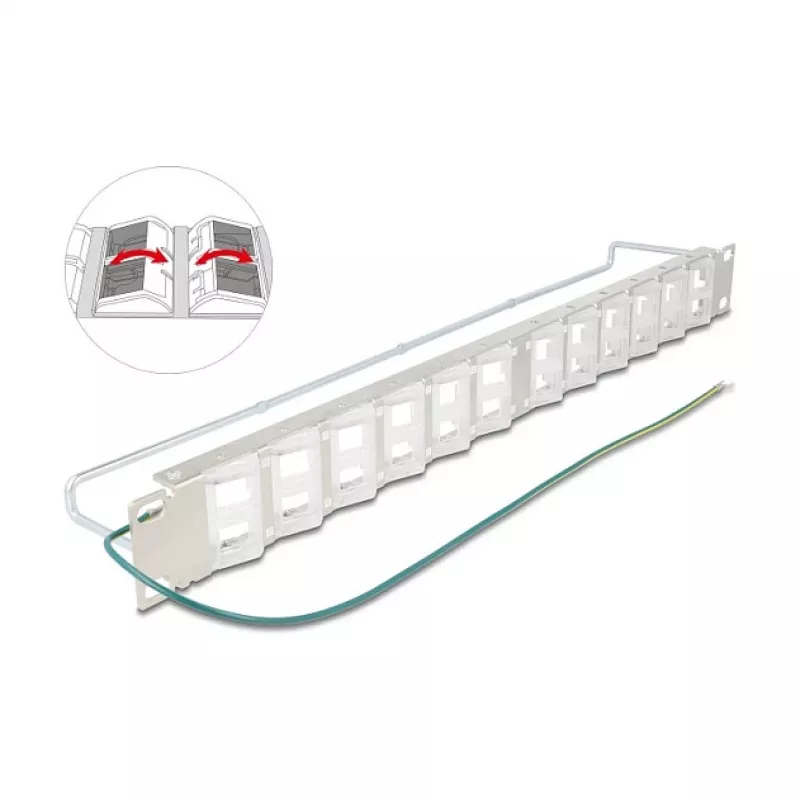

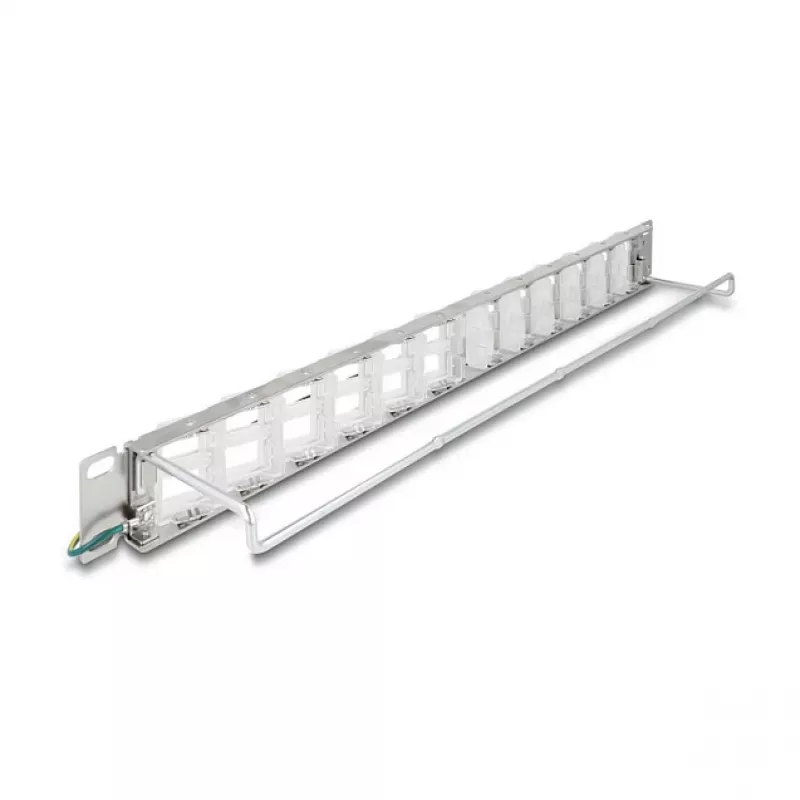

DELOCK 19" 24-port keystone patch panel in a 1U metallic housing designed for rack-mountable network installations. The panel accepts up to 24 keystone modules in a snap-in frame and features tiltable ports to route connectors at an angle, saving space in crowded patching rows. Integrated cable fixing points on the rear provide strain relief and orderly cable routing. The compact dimensions (482.6 × 78.4 × 44.2 mm) conform to standard 19" rack equipment and are intended for server rooms, network cabinets and communication closets.

Advantages

This patch panel combines a standardized 1U form factor with a metallic construction for mechanical stability and electromagnetic robustness. The snap-in keystone frame enables flexible use of different keystone modules while the tiltable ports reduce stress on connectors and allow more compact cable layouts. Rear cable fixing points provide strain relief and help maintain organized cabling, which simplifies installation and future maintenance.

Suitable for

• Data center and server rack patching rows
• Network cabinets and comms closets
• Structured cabling installations using keystone modules
• Tight rack spaces requiring angled connector orientation

Key specifications

• Form factor: 1U rack-mountable panel
• Number of ports: 24 keystone ports (snap-in)
• Port style: tiltable/angled keystone ports
• Material/finish: metallic housing

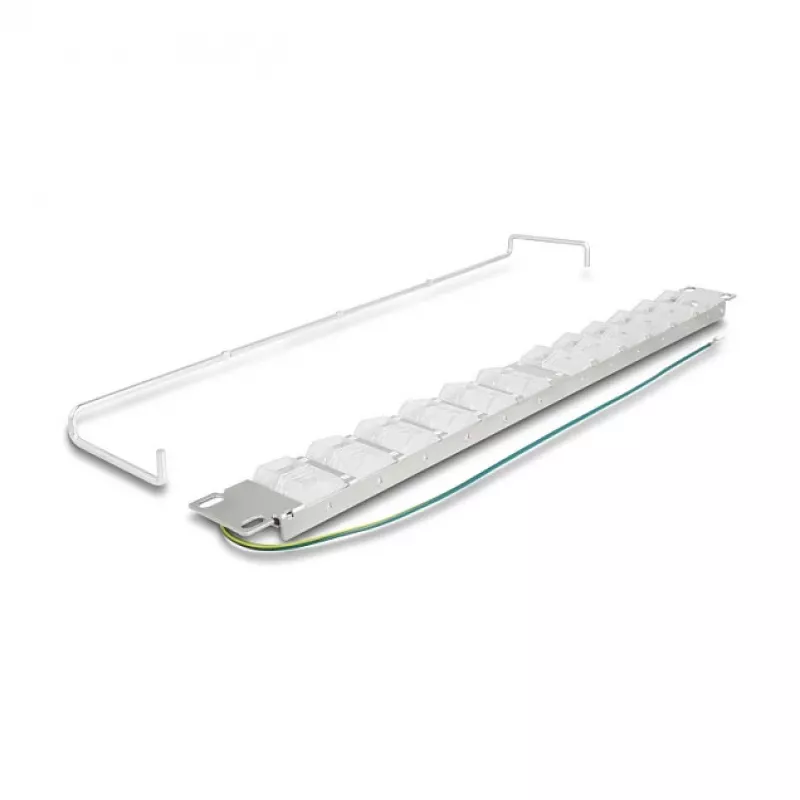

• Rear cable management: integrated cable fixing points for strain relief
• Compatible keystone module width: up to 17.5 mm
• Dimensions (W × H × D): 482.6 × 78.4 × 44.2 mm

How to use

Install the patch panel into a standard 19" rack using the front mounting ears and secure it at the desired 1U position. Snap in compatible keystone modules into the front frame, ensuring each module does not exceed 17.5 mm in width. Route network cables from the rear, attach connectors to the installed keystone modules and use the rear cable fixing points with cable ties to provide strain relief and maintain orderly routing. Check that tiltable ports are set to the required angle before final cable dressing.

Recommendations

Use keystone modules that comply with the maximum width specification (17.5 mm) and follow rack cabling best practices: label ports, avoid excessive bending radii at connector entry points, and secure cable bundles to the provided fixing points to prevent strain on terminations.
