Patchpanel 1U DeLOCK 43277

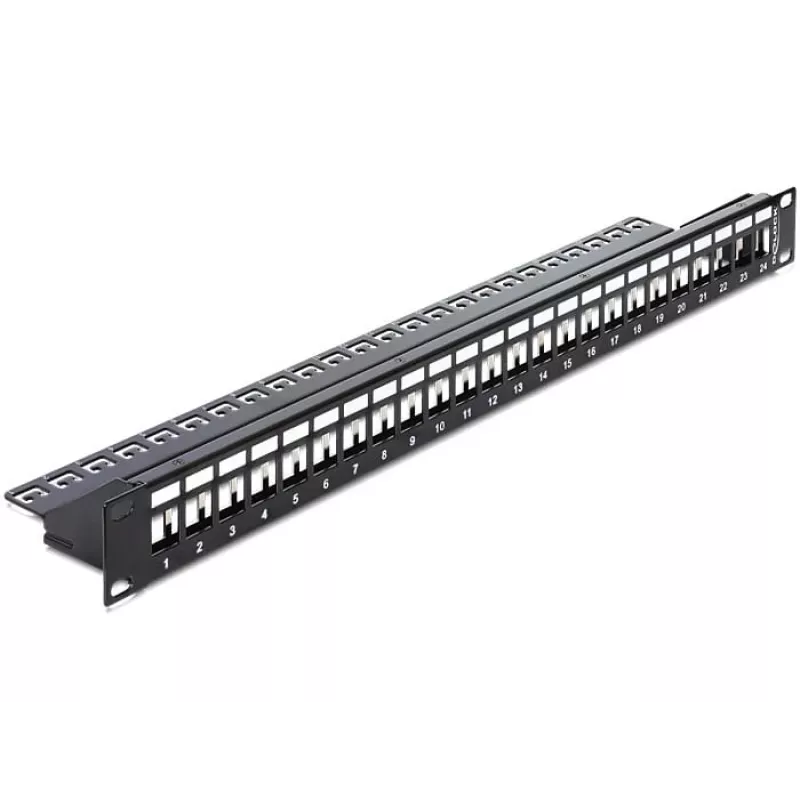

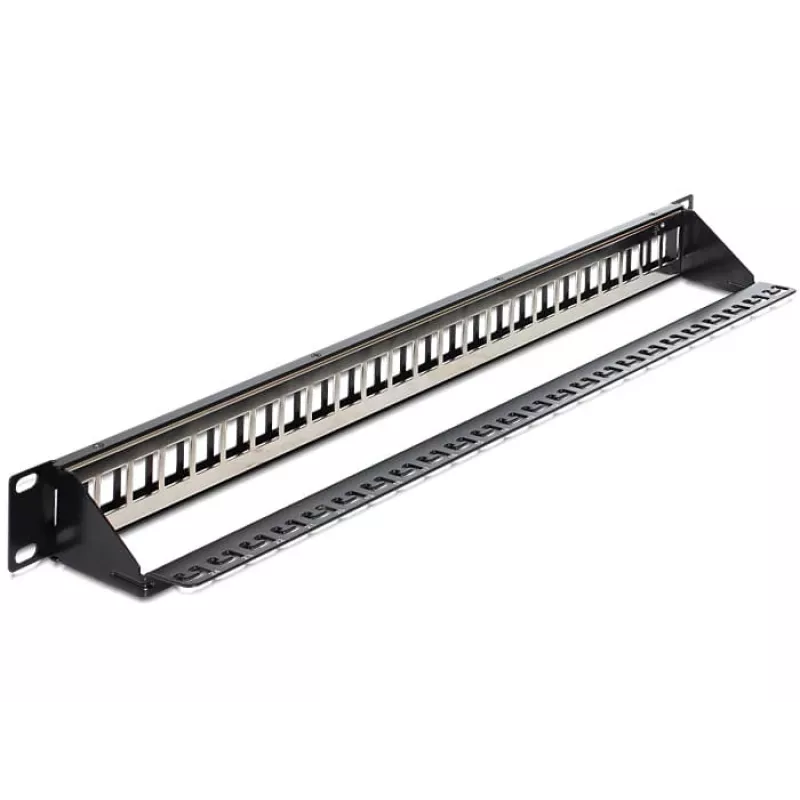

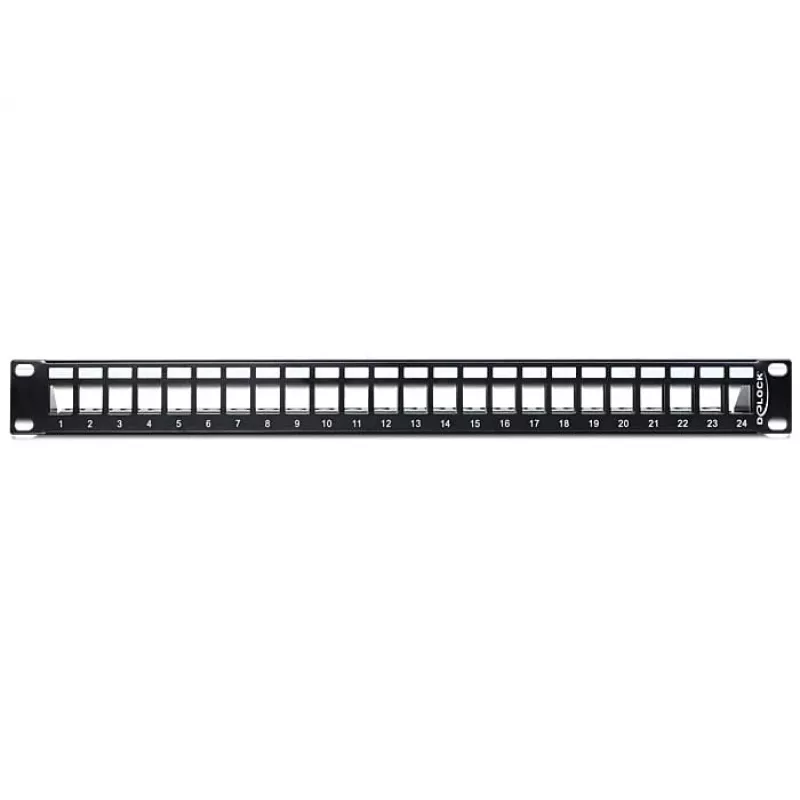

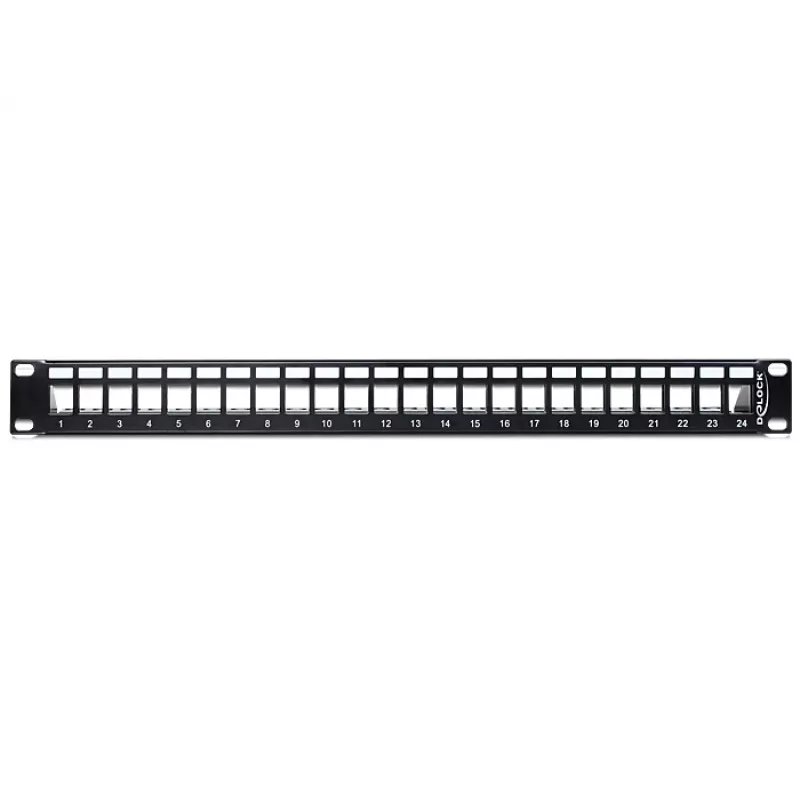

The DeLOCK 43277 Patch Panel is a 1U rack-mounted panel designed for organized cable management in standard 19" racks. With dimensions of 482 mm (width) × 92 mm (height) × 44 mm (depth) and a black finish, it accepts up to 24 Keystone modules for flexible port configuration and tidy network connections.

Advantages

The panel’s standardized 1U size and 482 mm width ensure compatibility with common 19" racks. It supports snap-in installation of 24 Keystone modules, allowing adaptable combinations of connectors. Its compact 44 mm depth reduces space usage in the rack while the black color provides a neutral appearance suitable for various technical environments.

Suitable for

• Network and server racks requiring structured cable termination
• Telecommunications closets and patching fields
• Small to medium office network installations
• Laboratory or testing setups that use modular Keystone connections

Key specifications

• Form factor: 1U rack-mounted panel
• Compatible rack width: 19" (482 mm)
• Dimensions (W × H × D): 482 × 92 × 44 mm
• Keystone module capacity: 24 ports
• Colour: Black

How to use

Mount the patch panel into a 19" rack using appropriate screws and cage nuts for a secure 1U installation. Insert Keystone modules into the front openings by snapping them into place according to the required connector types (e.g., RJ45, HDMI, or other Keystone-compatible modules). Route and terminate cables at the rear of the modules, label ports as needed, and secure cabling to maintain tidy cable management and airflow.

Recommendations

Install the panel in compliance with rack manufacturer guidelines and local wiring standards. Use correctly rated Keystone modules for the intended signal type and test each connection after termination to ensure reliable network performance.
