PCI Express x1 interne adapter DeLOCK 41752

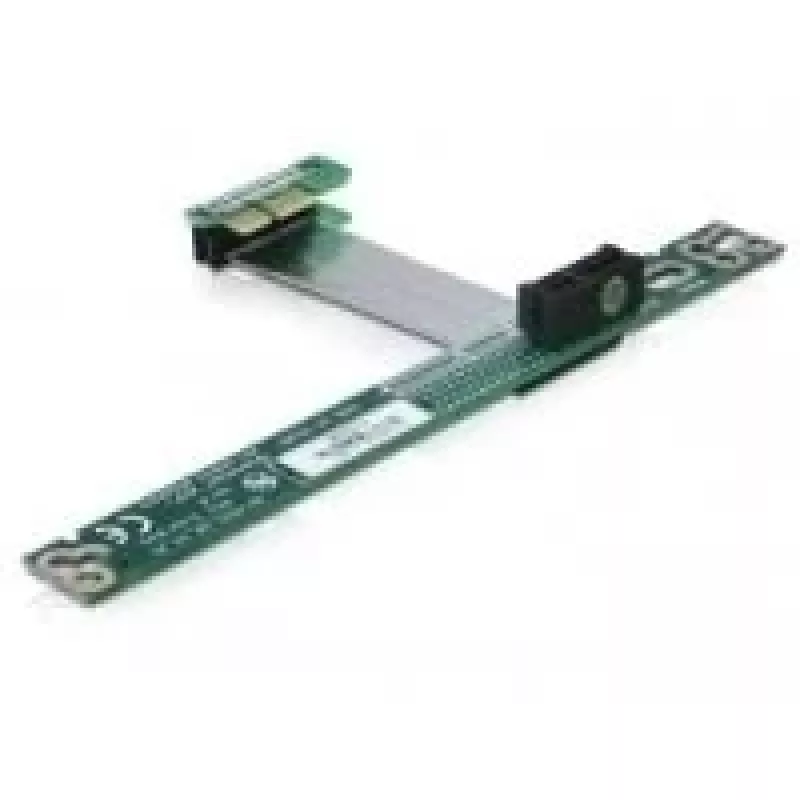

The DeLOCK PCI Express x1 Internal Adapter (model 41752) features a flexible 7 cm riser cable that enables horizontal installation of a PCI Express x1 card in computer cases with limited vertical space. It connects to a PCI host interface and provides a PCI Express x1 output, allowing internal expansion where direct vertical mounting is not possible.

Advantages

The flexible riser cable permits space-saving horizontal placement of a PCI Express x1 card without requiring case modification. Its internal design and standard PCI host interface ensure compatibility with systems that support internal PCI connections. The short 7 cm cable maintains a compact footprint while providing a reliable internal connection.

Suitable for

• Small form factor PC cases with low card clearance
• Systems requiring horizontal mounting of a PCI Express x1 card
• Internal expansion where vertical installation is obstructed

Key specifications

• Brand: DELOCK
• Model: 41752
• Host interface: PCI
• Output interface: PCI Express x1
• Flexible cable length: 7 cm
• Internal adapter for horizontal installation

How to use

Power off the computer and open the case. Connect the adapter to the motherboard's PCI host connector, route the 7 cm riser cable to the desired horizontal mounting position, and install the PCI Express x1 card into the adapter's output connector. Secure the card in place according to your case layout and close the case before powering on the system.

Recommendations

Ensure the system is powered down and grounded before installation. Verify motherboard compatibility with internal PCI interfaces and confirm sufficient airflow around the horizontally mounted card to maintain proper cooling.
