Pinstrip DeLOCK 66698 accessoire voor printplaten (PCB)

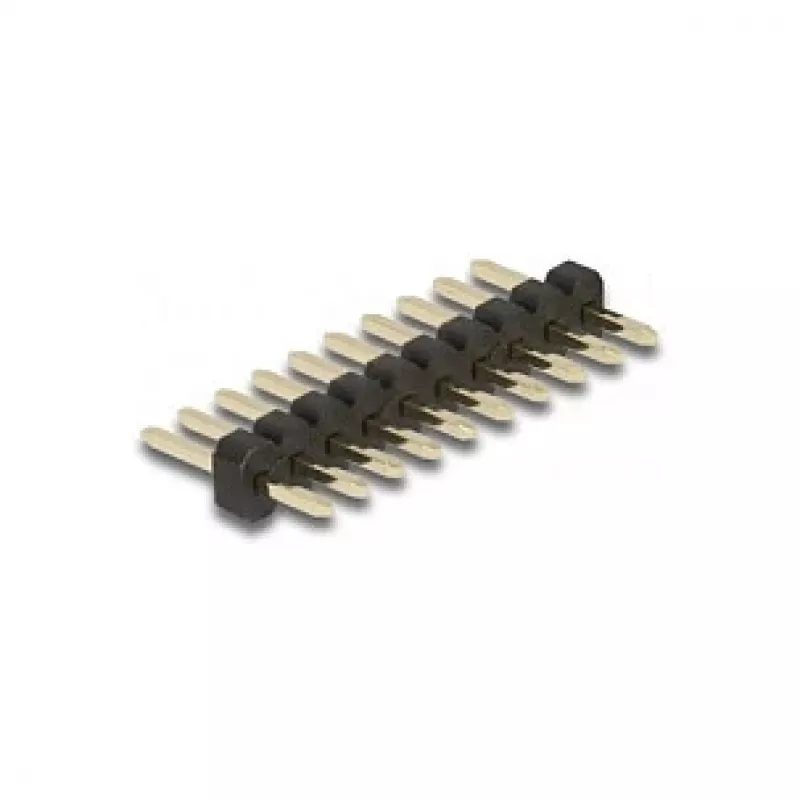

The DeLOCK 66698 pin header is an accessory for printed circuit boards designed to provide reliable electrical connections between individual boards or components. It combines metal contacts and plastic housing in a compact black-and-metallic form factor, suitable for use in electronic assemblies and DIY projects.

Advantages

Compact dimensions (25.4 mm length, 11.5 mm depth, 5 mm height) make the pin header easy to place on PCBs with limited space. The combination of metal contacts and plastic housing ensures mechanical stability and consistent electrical contact. The neutral black and metallic appearance fits a variety of board layouts.

Suitable for

• Establishing board-to-board connections on printed circuit boards
• Prototyping and DIY electronic projects
• Replacing or adding connector pins on small PCBs

Key specifications

• Brand: DELOCK
• Model / MPN: 66698
• EAN: 4043619666980
• Type: Pin header for PCB
• Materials: metal contacts, plastic housing
• Dimensions: 25.4 mm (length) × 11.5 mm (depth) × 5 mm (height)

How to use

Position the pin header on the PCB pads according to your circuit layout and solder the metal pins to the board to ensure secure electrical and mechanical connection. Verify alignment and solder joints after assembly. Use standard soldering tools and follow ESD precautions when handling components.

Recommendations

For reliable long-term connections, ensure correct pad sizing and adequate solder fillets. Avoid excessive mechanical stress on soldered pins and observe electrostatic discharge (ESD) handling practices during assembly.
