Plafondbeugel B-Tech BT8424-100 universeel plat scherm met kantelverstelling

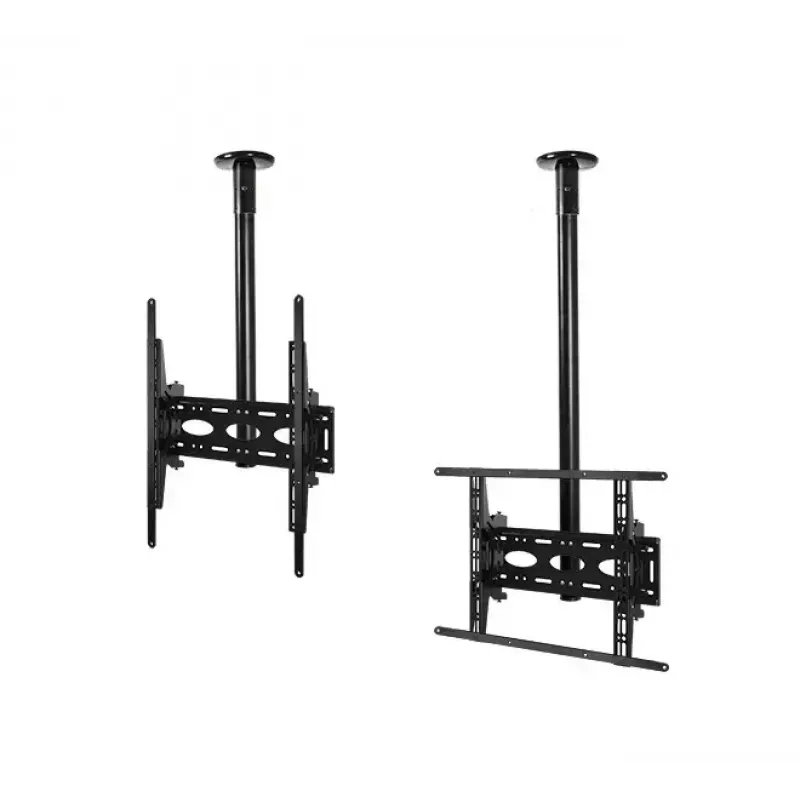

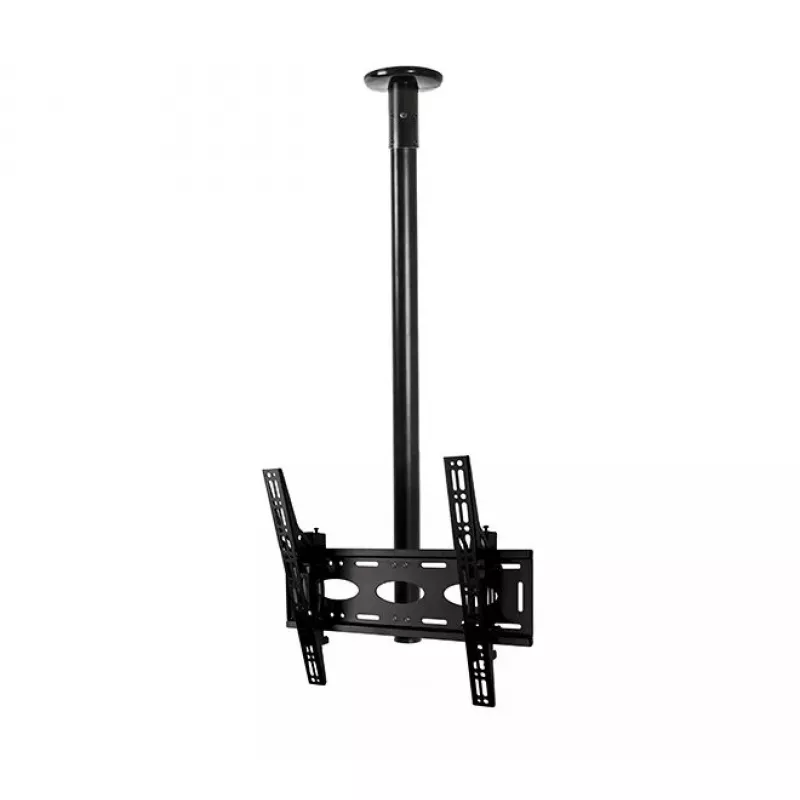

The B-Tech BT8424-100 ceiling mount supports a single flat screen up to 65" and 50 kg, and can be fitted in either landscape or portrait orientation. It is offered with four fixed drop lengths (1 m, 1.5 m, 2 m and 3 m) and a black finish to suit professional environments. The mount is compatible with common VESA patterns up to 600 x 400 mm and provides a tilt range of -15° to 15° for improved viewing angle adjustment.

Advantages

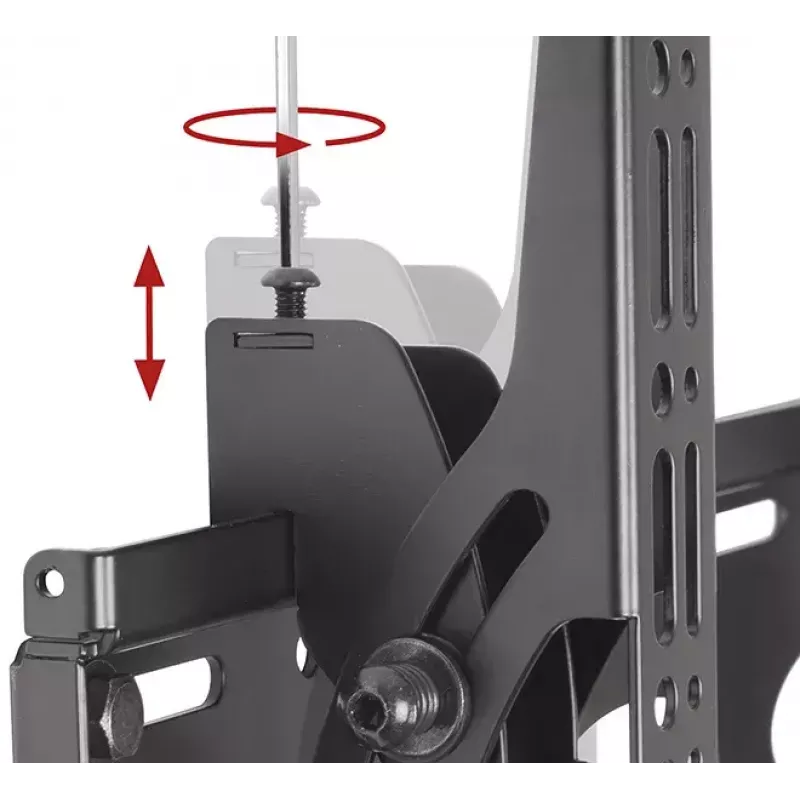

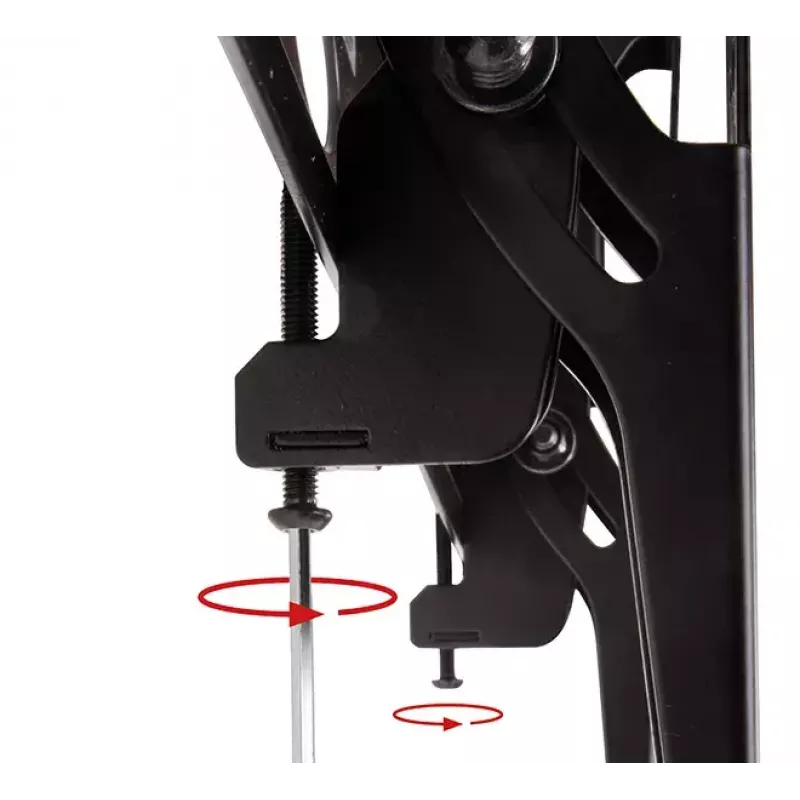

The BT8424-100 features B-Tech’s Torsion-Tilt mechanism for smooth, controlled tilt adjustment and integrated levelling screws on the interface arms for fine height correction. Locking screws help secure the display against unauthorised removal, and cover plates are supplied to create a neat, finished installation. The mount supports both landscape and portrait orientations and is supplied in several drop length options to match ceiling height.

Suitable for

• Mounting a single 39"–65" flat screen in meeting rooms or public areas
• Situations requiring portrait or landscape orientation
• Installations where a clean, low-profile ceiling installation is required

Key specifications

• Maximum screen size: 65"
• Maximum weight capacity: 50 kg
• VESA compatibility: up to 600 x 400 mm
• Tilt range: -15° to 15° (Torsion-Tilt mechanism)
• Available drop lengths: 1 m, 1.5 m, 2 m, 3 m
• Colour: Black
• Number of displays supported: 1

How to use

Fix the ceiling plate to a suitable structural support using appropriate fixings for the ceiling material. Select the required drop length and assemble the pole and interface arms according to the supplied fitting instructions. Attach the interface arms to the screen using the correct VESA holes (up to 600 x 400 mm), use the levelling screws to adjust the screen height precisely, then tighten the locking screws to secure the display. Fit the cover plates to conceal fixings and provide a neat appearance.

Recommendations

Ensure the ceiling structure and fixings used are rated to support the combined weight of the mount and display (up to 50 kg). For safety and best results, follow the manufacturer’s installation instructions and use appropriate anchors or threaded fixings for the ceiling type. If unsure, consult a qualified installer.
