PLANET IP30 Industriële enkelpoorts 10Gbps 802.3bt PoE++ splitter 24V

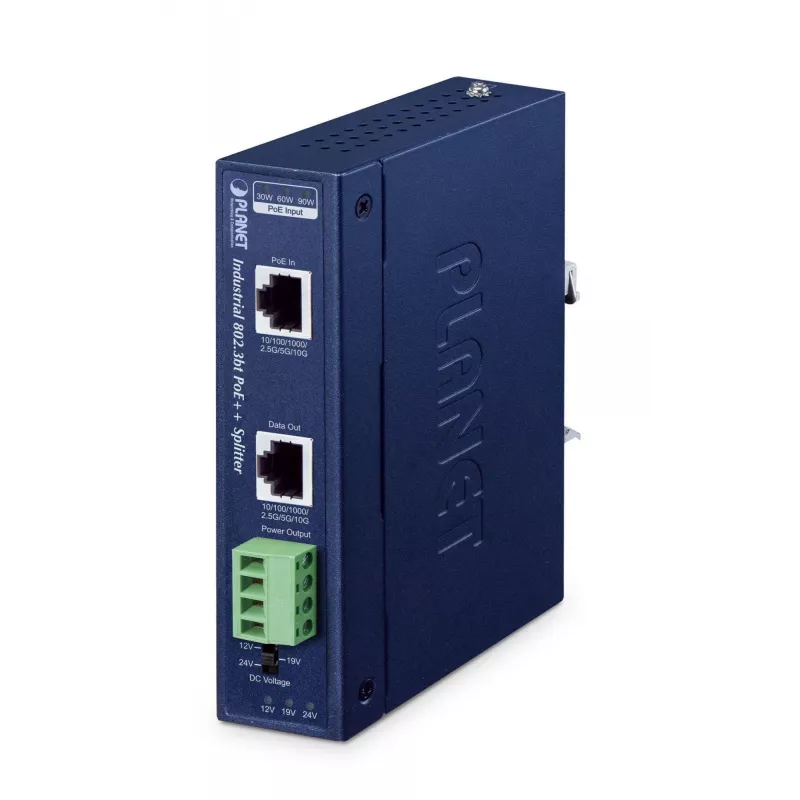

PLANET IPOE-176S is an industrial-grade 802.3bt (PoE++) splitter that extracts Ethernet data and PoE power from an 802.3bt PoE++ (type-4) PSE over a UTP cable. The unit provides a selectable DC output (12V / 19V / 24V) via a front-panel DIP switch and can deliver up to 70 W to non-PoE devices. It includes two Multi-Gigabit 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 ports for data throughput and is housed in an IP30 metal industrial enclosure designed for DIN-rail or wall mounting. The IPOE-176S operates in a wide temperature range (-40 to 75 °C) and is intended to power high-demand network equipment without additional AC wiring.

Advantages

The IPOE-176S supports 802.3bt PoE++ power delivery and splits power and data to supply up to 70 W to non-PoE devices, reducing the need for separate power outlets and AC cabling. Its selectable 12V/19V/24V DC output increases compatibility with a variety of network and industrial devices. Dual power output via a 4-pin terminal block allows powering two devices simultaneously from the available budget. The compact IP30 metal case, DIN-rail and wall-mount options, Multi-Gigabit RJ45 interfaces, and wide operating temperature range provide a rugged and space-efficient solution for industrial deployments.

Suitable for (tasks / use cases)

• Powering PTZ speed dome and other power-hungry IP cameras
• Supplying power to thin clients, AIO touch PCs and remote digital signage
• Feeding non-PoE network devices that require higher DC voltages (12V/19V/24V)
• Industrial sites where AC outlet installation is impractical or costly
• Environments needing Multi-Gigabit data connectivity with PoE power

Key specifications

• Model: IPOE-176S (PLANET)
• PoE standard: IEEE 802.3bt (PoE++), Type 4
• Maximum PoE output: 70 W
• Selectable DC output voltages: 12 V / 19 V / 24 V (DIP switch)
• Data ports: 2 x RJ45 10M/100M/1G/2.5G/5G/10GBASE-T
• Dual power output: 4-pin terminal block (two outputs share 70 W budget)
• Operating temperature: -40 to 75 °C
• Enclosure: IP30 metal, DIN-rail or wall mount
• Dimensions (W x D x H): 32 x 87 x 135 mm
• Weight: 0.433 kg
• Certifications: CE, FCC (as per manufacturer information)

How to use

Connect the IPOE-176S uplink RJ45 port to an 802.3bt PoE++ capable PSE or injector using a UTP cable. Set the front-panel DIP switch to the required DC output voltage (12 V, 19 V or 24 V) according to the power requirements of the connected device(s). Use the splitter’s DC jack or the 4-pin terminal block to supply power to non-PoE equipment; the RJ45 output provides only Ethernet data. For dual-output scenarios, distribute the 70 W budget between the two outputs as needed (for example, camera + heater/fan or camera + pan/tilt motor). Mount the unit on a DIN-rail or wall inside a cabinet or enclosure, ensuring ambient temperature stays within the specified range.

Recommendations

Use a certified 802.3bt PoE++ PSE or injector and appropriate UTP cabling (Cat5e or higher) to ensure stable Multi-Gigabit data transmission and full power delivery. Verify the combined power draw of connected devices does not exceed 70 W and select the DC voltage matching the devices’ input requirements. Install the splitter in a location that meets the operating temperature and ventilation needs of the equipment.
