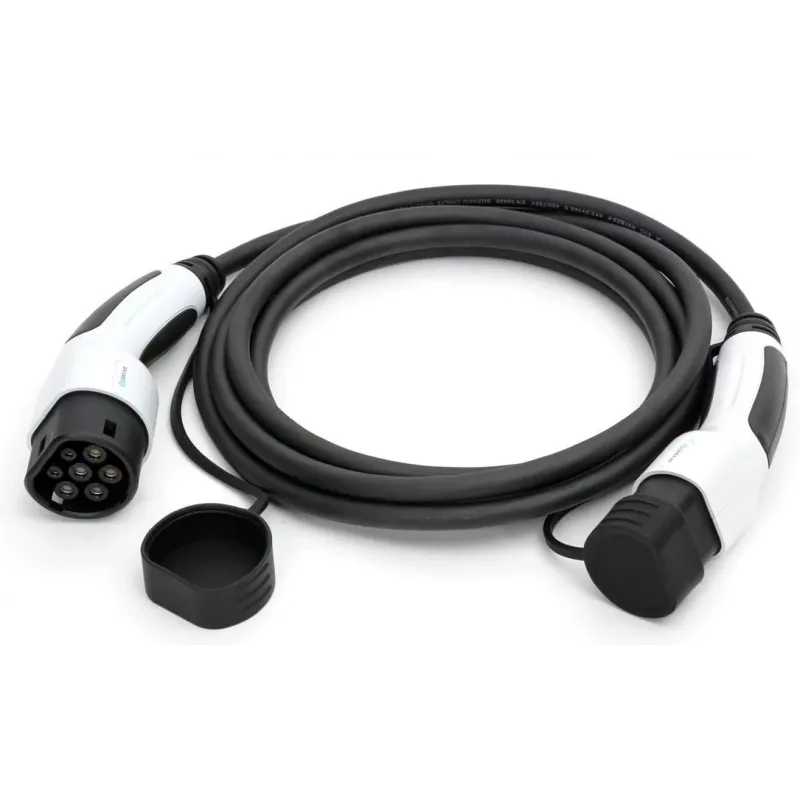

Platinet PEVC11KW5B Type 2 naar Type 2 oplaadkabel 11 kW 5 m zwart

The Platinet PEVC11KW5B is a high-quality Type 2 to Type 2 charging cable designed for electric vehicles. With 11 kW charging power and a length of 5 meters, it offers reliable and efficient charging for compatible EVs and charging stations.

Advantages

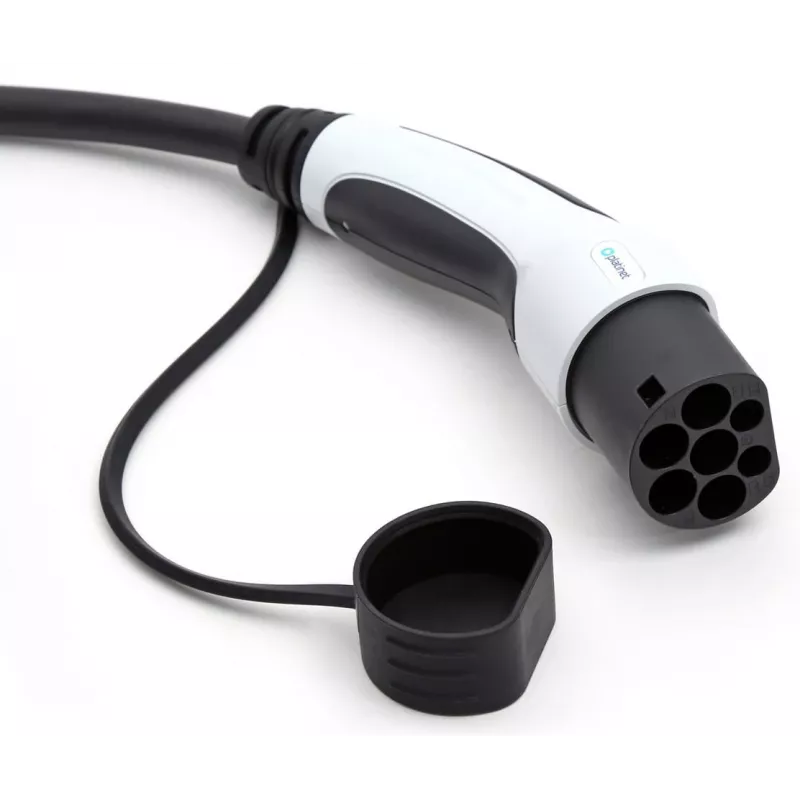

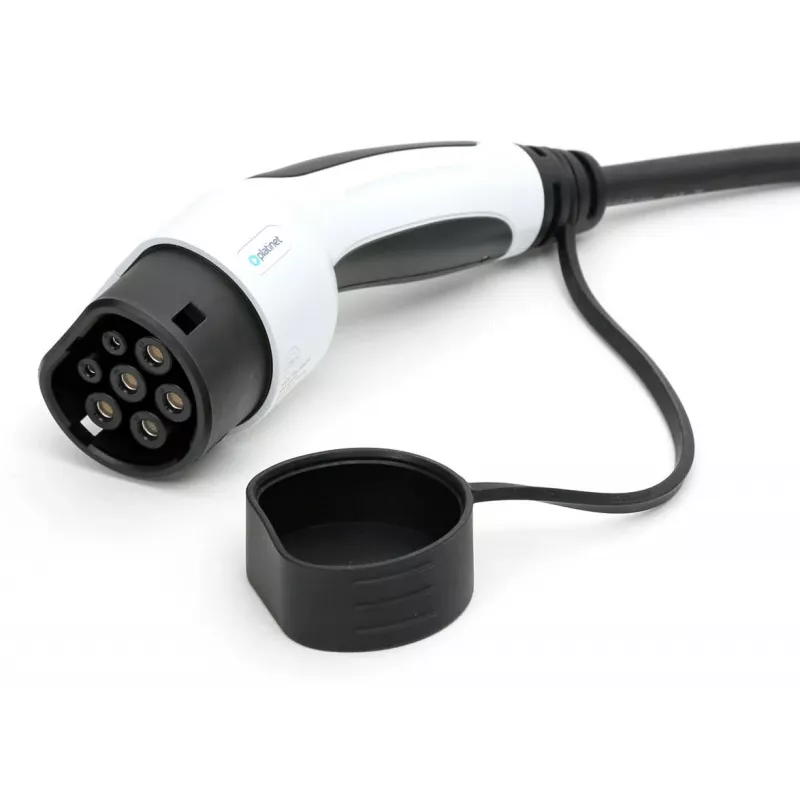

This cable features angled connectors on both ends, reducing strain on the charging port and allowing flexible positioning. The robust TPU jacket ensures durability and flexibility even in cold temperatures. With IP54-rated connectors, it is protected against dust and splashing water.

Suitable for

• Electric vehicles with Type 2 inlet
• Type 2 charging stations (wallboxes, public chargers)
• 3-phase AC charging up to 11 kW

Key specifications

• Connector type: Type 2 to Type 2 (IEC 62196-2)
• Charging power: 11 kW
• Current rating: 16 A
• Phases: 3-phase
• Cable length: 5 m
• Cable colour: Black
• Connector colour: Black/White
• Connector shape: Angled (both ends)
• Voltage rating: 400 V AC
• Operating temperature: -30°C to +50°C
• IP rating: IP54 (connectors)
• Cable material: TPU (Thermoplastic Polyurethane)
• Conductor material: Copper alloy
• Number of pins: 7 (3P+N+PE+CP+PP)
• Certifications: CE, TÜV

Recommendations

For optimal performance, ensure your charging station and vehicle support 11 kW 3-phase charging. Store the cable in a clean, dry place when not in use.
